RICH SOLAR 8 x ALPHA 4 LITE | 24V | 800Ah | 20.4kWh Lithium Battery Bank
The RICH SOLAR 8 x ALPHA 4 LITE Lithium Battery Bank is a robust energy storage solution offering a total of 20.4kWh. Designed for serious off-grid living, whole-home backup, and demanding solar setups, this bank includes eight 24V 100Ah LiFePO4 batteries. With premium-grade components, advanced safety features, and a modular design, this setup delivers long-lasting performance, efficient power delivery, and maximum scalability.
RICH SOLAR 8 x ALPHA 4 LITE | 24V | 800Ah | 20.4kWh Lithium Battery Bank Features
Massive 20.4kWh Storage Capacity
Each ALPHA 4 LITE battery provides 2.56kWh, totaling 20.4kWh of power for large-scale energy needs or full off-grid setups.
24V High-Efficiency System
Configured at 24V, this system reduces current loss and optimizes compatibility with solar equipment and inverters.
Reliable LiFePO4 Chemistry
Built with Lithium Iron Phosphate cells for high thermal stability, deep cycle performance, and over 6,000 charge cycles at 80% depth of discharge.
Intelligent Battery Management System (BMS)
Each unit includes a smart BMS that protects against overcharging, over-discharging, short circuits, and temperature extremes.
Scalable and Modular Setup
Easily expand your system over time—perfect for growing energy demands or staged installations.
No Maintenance Needed
These batteries offer clean, maintenance-free operation, eliminating the need for fluid checks or replacements.
RICH SOLAR 8 x ALPHA 4 LITE | 24V | 800Ah | 20.4kWh Lithium Battery Bank Applications
- Whole-Home Off-Grid Living – Supports full household energy needs for cabins, homesteads, or rural properties.
- High-Demand Solar Storage – Perfect for large solar arrays requiring reliable, high-capacity storage.
- Commercial Energy Backup – Powers critical business equipment, tools, and electronics during outages.
- Mobile Workstations or RVs – Enables extended travel and mobile operations with consistent, high-output energy.
- Emergency Power Security – Offers dependable backup to run essential appliances, lighting, and communication systems during grid failures.
What's Included
Everything you need is included with your product.

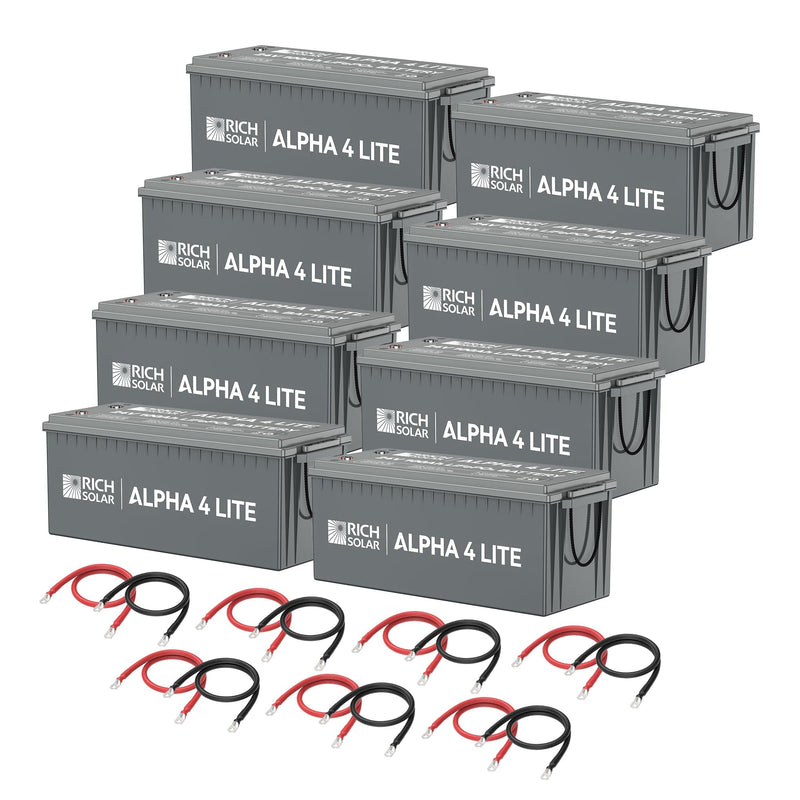

- 8 x 24V 100AH ALPHA 4 LITE LiFePO4 Battery
- 14 x 1ft 2 AWG Battery Cable
- 1 x User Manual
RICH SOLAR ALPHA 4 LITE | 24V 100Ah LiFePO4 Battery Specifications
| Category | Specifications |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 99.5Ah |
| Cycle Life | > 4000 cycles |
| Short Circuit Protection | Yes |
| Warranty | 5-year warranty |
Operating Specifications
| Category | Specifications |
| Capacity | 100Ah |
| Energy | 2560 Watt Hours |
| Charge Voltage | 28.8V |
| Continuous Discharge Current | 100A |
| Self Discharge | < 5%/month |
Temperature Performance
| Category | Specifications |
| Charge Temperature | 32℉ to 131℉ (0℃ to 55℃) |
| Discharge Temperature | -4℉ to 140℉ (-20℃ to 60℃) |
| Storage Temperature | 14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months) |
Physical Specifications
| Category | Specifications |
| Battery Dimensions(L*W*H) | 20.9x8.1x8.5 in |
| Weight | 52.9 lb |
Over Charge Protection (BMS Operation)
| Category | Specifications |
| Over charge detection voltage | 3.75V±0.05V |
| Over charge detection delay time | 1000ms±500ms |
| Over charge recovery voltage | 33.55V±0.05V |
Over Discharge Protection (BMS Operation)
| Category | Specifications |
| Over discharge detection voltage | 2.20V±0.08V |
| Over discharge detection delay time | 1000ms±500ms |
| Over discharge recovery voltage | 2.70V±0.10V |
Frequently-Asked Questions
Can I use this battery bank for a large off-grid home?
Yes. With over 20kWh of storage, this setup can power most off-grid homes with solar or generator integration.
Is it compatible with my existing 24V solar system?
Yes. Ensure your charge controller and inverter are 24V compatible and designed to work with lithium batteries.
Can I expand this system in the future?
Yes. The ALPHA 4 LITE batteries are modular and allow for easy expansion depending on your energy needs.
Does the system require maintenance?
No. These batteries are sealed, require no fluid maintenance, and include built-in BMS protection for safe operation.
