RICH SOLAR ALPHA 4 | 24V 100Ah LiFePO4 Battery | Powerful 24V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology
RICH SOLAR ALPHA 4 | 24V 100Ah LiFePO4 Battery | Powerful 24V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology
The RICH SOLAR ALPHA 4 is a high-performance 24V 100Ah lithium iron phosphate (LiFePO4) battery designed for various off-grid applications. With advanced features like internal heating and Bluetooth connectivity, it ensures reliable power delivery even in challenging environments. Its robust build and long cycle life make it an excellent choice for RVs, boats, solar energy systems, and more.

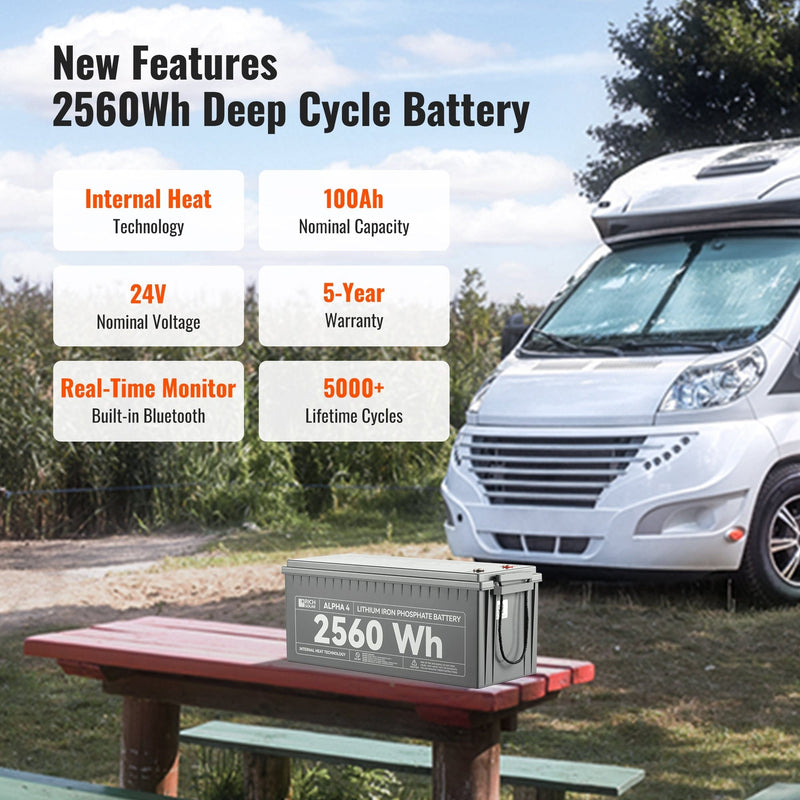

RICH SOLAR ALPHA 4 | 24V 100Ah LiFePO4 Battery Features

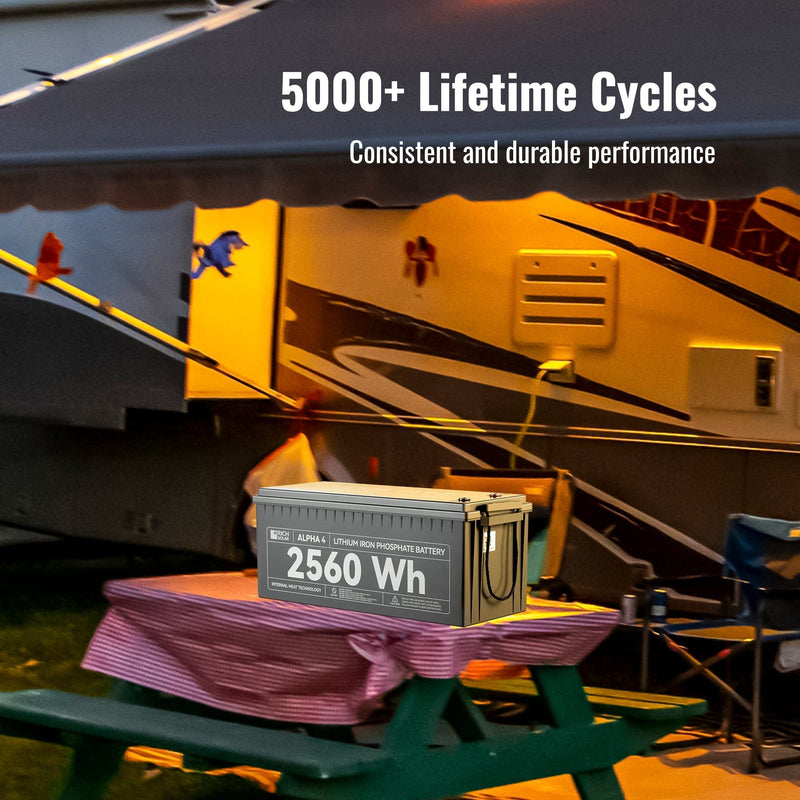

Long Cycle Life – Delivers over 7,000 cycles at 80% depth of discharge, ensuring years of dependable service.
Internal Heating Technology – Allows charging in cold temperatures by automatically activating the internal heating system.

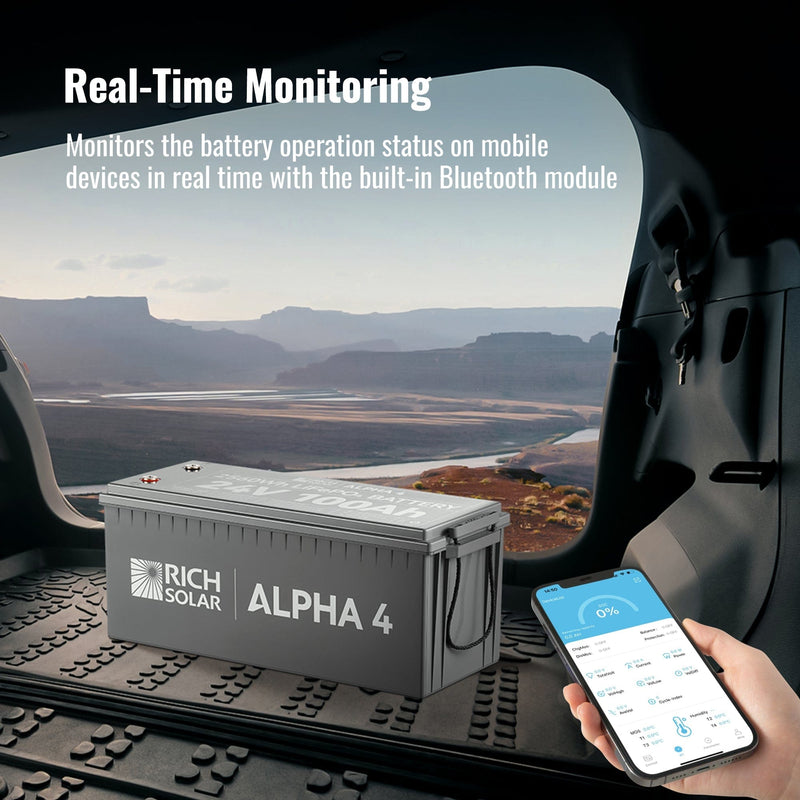

Bluetooth Connectivity – Monitor battery status in real-time via a mobile app, providing insights into performance and health.
Built-in Battery Management System (BMS) – Protects against overcharging, over-discharging, overcurrent, and short circuits, enhancing safety and longevity.
Compact and Lightweight Design – Weighing approximately 48.5 lbs, it offers easy installation and space-saving benefits.
RICH SOLAR ALPHA 4 | 24V 100Ah LiFePO4 Battery Applications
- Off-Grid Solar Systems – Ideal for storing energy in standalone solar setups, ensuring power availability during nighttime or cloudy days.
- Recreational Vehicles (RVs) – Provides reliable power for appliances and electronics, enhancing comfort during travel.
- Marine Applications – Suitable for boats, offering dependable energy for navigation systems, lighting, and other onboard equipment.
- Backup Power Supply – Acts as a reserve power source during outages, keeping essential devices operational.
- Remote Worksites – Supports tools and equipment in locations without grid access, ensuring uninterrupted operations.
What's Included
Everything you need is included with your product.
- 1 x RICH SOLAR ALPHA 4 | 24V 100Ah LiFePO4 Battery
- User Manual
RICH SOLAR ALPHA 4 | 24V 100Ah LiFePO4 Battery Specifications
| Category | Specification |
| Cell Type | LiFePO4 Battery |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 2560Wh |
| Cycle Life | 5000 cycles |
| Maximum Expansion (Parallel & Series) | 4P4S |
BMS
| Category | Specification |
| BMS | 100A |
| Maximum Charging Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Maximum Discharge Current 10 Seconds | 110A |
CHARGE
| Category | Specification |
| Charge Method | CC/CV |
| Charge Voltage | 14.4V ± 0.2V |
| Recommend Charge Current | 50A (0.2C) |
TEMPERATURE
| Category | Specification |
| Charge Temperature | 32℉ to 131℉ (0℃ to 55℃) |
| Discharge Temperature | -4℉ to 140℉ (-20℃ to 60℃) |
| Storage Temperature | 14℉ to 95℉ (-10℃ to 35℃) |

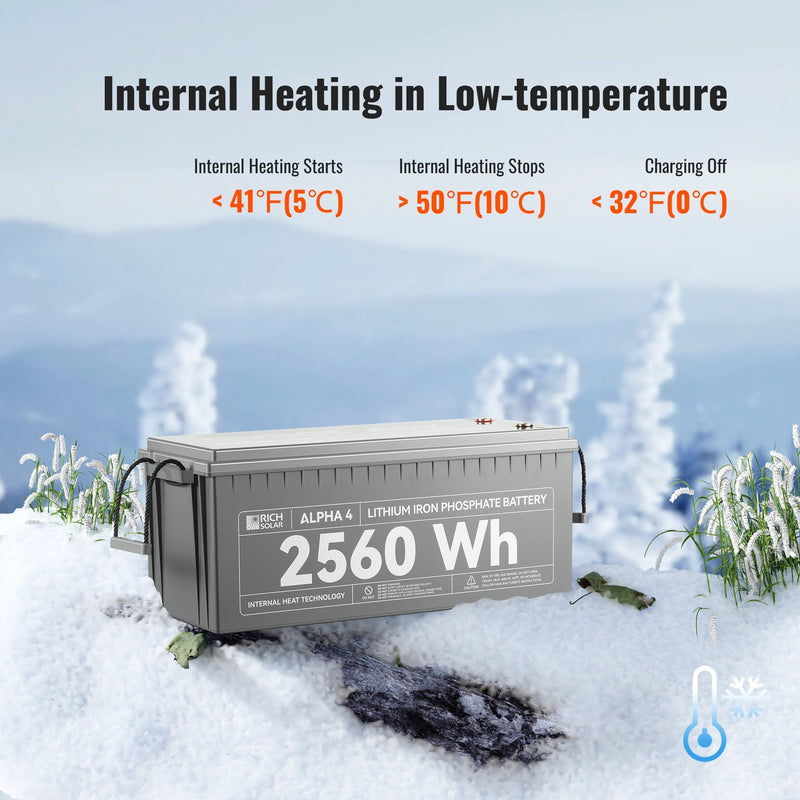

SELF-HEATING
| Category | Specification |
| External Power Draw | 100W |
| Internal Heating Starts | < 41℉ (5℃) |
| Internal Heating Stops | > 50℉ (10℃) |
OTHERS
| Category | Specification |
| Net Battery Weight | 48.5lb |
| Size(L*W*H) | 20.9x8.1x8.5in |
| Housing Material | ABS (Flame Retardant Plastic) |
| Protection Class | IP65 |
| Warranty | 5 Years |
| Certifications | UL1973, FCC, UN38.3, ETL |
Frequently-Asked Questions
Can the ALPHA 4 battery be connected in series or parallel?
Yes, the ALPHA 4 supports up to 4 batteries in series or parallel configurations, allowing for system expansion to meet higher power requirements.
Is the battery suitable for use in cold climates?
Absolutely. The built-in internal heating system enables charging in low temperatures, making it ideal for cold environments.
How can I monitor the battery's performance?
The integrated Bluetooth module allows real-time monitoring of battery status through a compatible mobile application.
What safety features are included?
The battery features a comprehensive BMS that protects against overcharging, over-discharging, overcurrent, and short circuits, ensuring safe operation.
