Sungold Power Solar Kit 3000W 24V Inverter 120V output Lithium Battery 800 Watt Solar Panel
Sungold Power Solar Kit 3000W 24V Inverter 120V output Lithium Battery 800 Watt Solar Panel
The Sungold Power 3000W Solar Kit is a compact, all-in-one solar solution designed for small homes, cabins, RVs, and off-grid essentials. It combines a pure sine wave inverter, high-capacity lithium battery, and 800 watts of solar power to provide reliable 24V power output at 120V AC. Ideal for both beginners and seasoned solar users, this plug-and-play kit supports energy independence with long-lasting performance and efficient charging.
Sungold Power Solar Kit 3000W 24V Inverter 120V Output Lithium Battery 800 Watt Solar Panel Features
3000W Pure Sine Wave Inverter (24VDC to 120V AC)
Delivers stable and clean power for sensitive electronics and appliances, including refrigerators, TVs, and power tools.
5.12kWh LiFePO4 Lithium Battery (24V 200Ah)
Built for safety and longevity—offering 6000+ cycles at 80% DOD, giving you reliable power for years.
800W Monocrystalline Solar Panel Array (2 x 400W Panels)
High-efficiency panels provide excellent power generation in full sun or cloudy conditions, with robust, weather-resistant construction.
Built-In MPPT Solar Charger Controller
Improves solar charging efficiency by up to 99.9%, automatically optimizing voltage for faster charging and reduced losses.
Compact and DIY-Friendly Design
Perfect for mobile or stationary use—this kit is easy to install and includes all required cables and accessories for quick setup.
Expandable Setup
Add more solar panels or batteries as your energy needs grow. The system supports flexible scaling for future upgrades.
Sungold Power Solar Kit 3000W 24V Inverter 120V Output Lithium Battery 800 Watt Solar Panel Applications
- Tiny homes, sheds, or cabins - Powers small off-grid living spaces with efficient energy storage and dependable output.
- RVs, travel trailers, or vans - A mobile-friendly power solution that keeps your trips off-grid and devices powered.
- Emergency backup for small appliances - Keeps essentials like lights, fans, CPAP machines, and communications running during outages.
- Outdoor workshops or tool stations - Provides portable power for light-duty tools and lighting in remote workspaces.
- Solar-powered garden or security systems - Perfect for running cameras, lighting, or irrigation timers far from the grid.

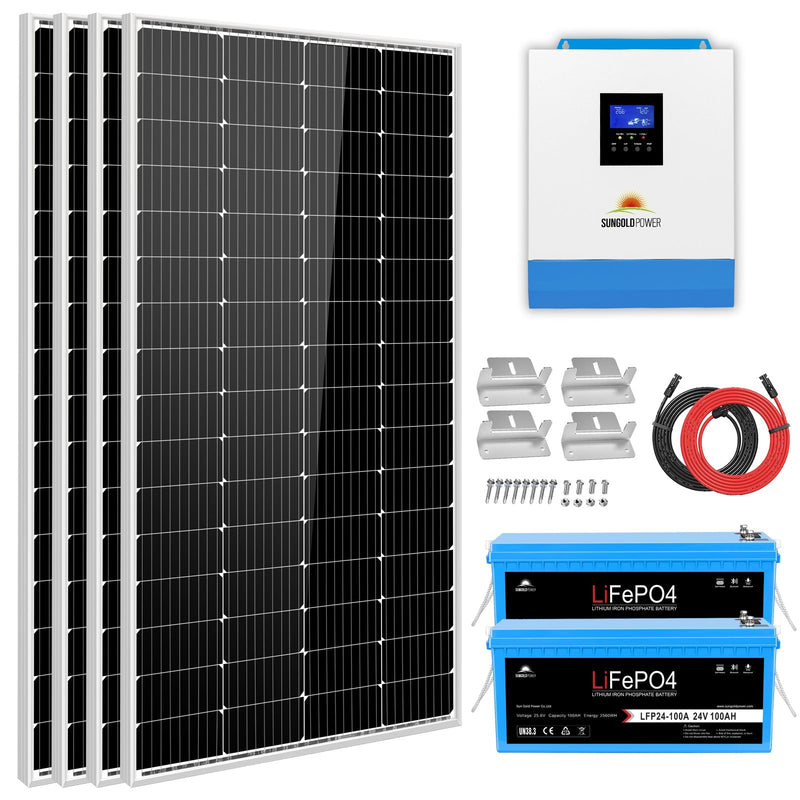

What's Included
Everything you need is included with your product.
- 1 X 3000 Watt 24V DC 120V Solar Inverter
- 4 X 200 Watt Monocrystalline Solar Panels

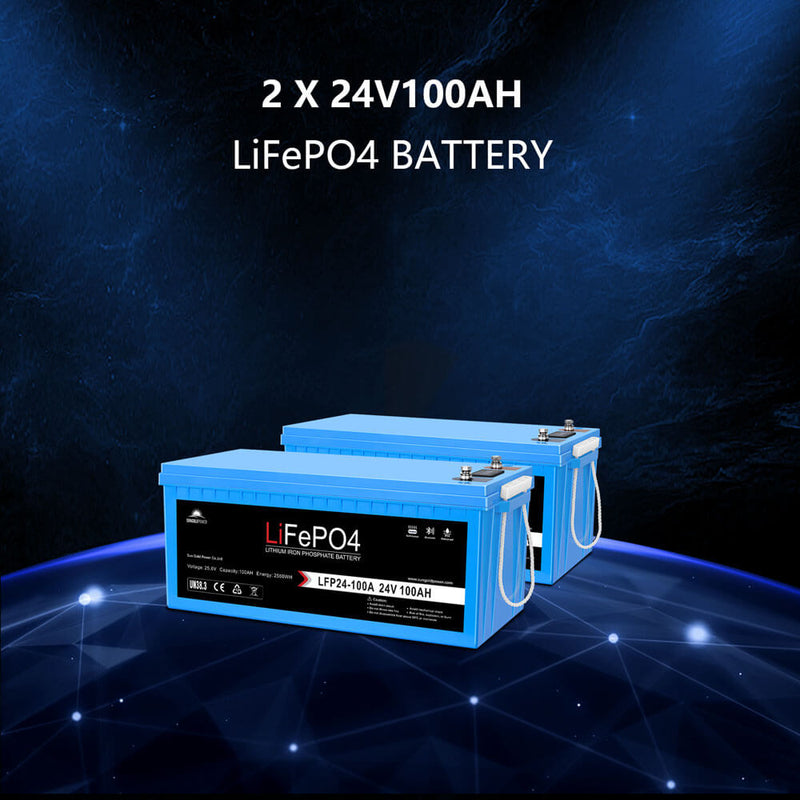

- 2 X 24V 100AH Lifepo4 Battery with Bluetooth
- 4 X Sets of Mounting Z-Brackets
- 1 x 50 Feet, Solar Extension Cables-Inverter PV input
Sungold Power Solar Kit 3000W 24V Inverter 120V Output Lithium Battery 800 Watt Solar Panel Specifications

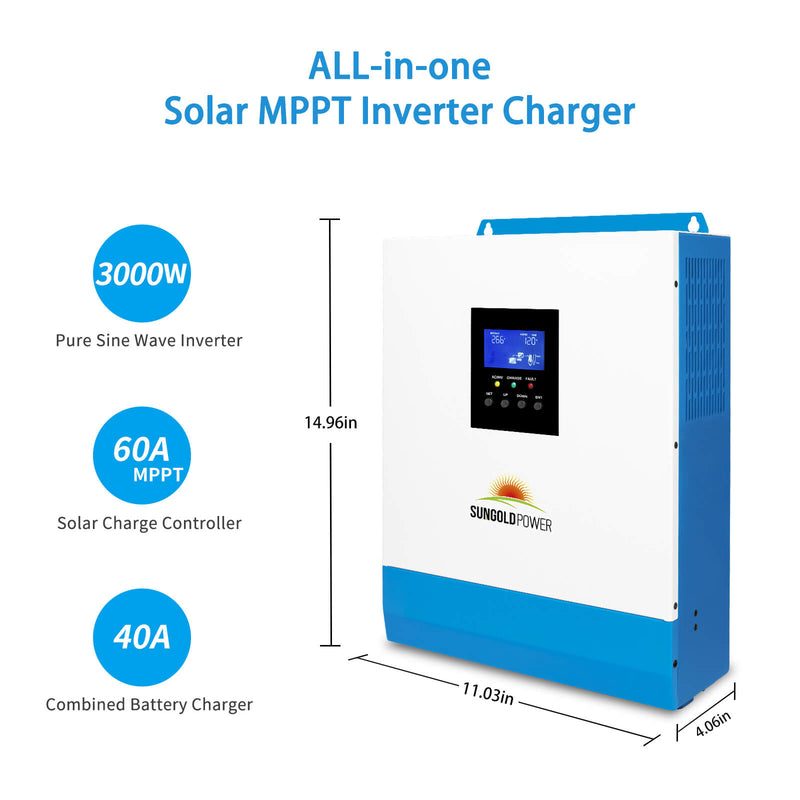

3000 Watt Solar Inverter
| Specification | Details |
| AC Output | 3000W 24V Solar Inverter |
| Output Waveform | Pure Sine Wave |
| AC Output | 120V 50Hz / 60Hz |
| Max PV Input | 450VDC |
| Efficiency | >95% |
| Max Charging Current | 80A |
| Maximum PV Array Power | 4000W |
| Dimension | 15.4 × 11.0 × 3.9 inch |
| Weight | 16.8 LB |
| Warranty | 3 Years |
LifePo4 Battery
| Specification | Details |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100AH |
| Energy | 2560WH |
| Voltage Window | 21.6 – 29.2V |
| MAX Continuous Charge Current | 100A |
| Peak Discharge Current | 200A ± 3A (10s) |
| Cycle Life | >4000 |
| Main Character | Self Heating / IP65 |
| Monitoring Function | LCD / Bluetooth |
| Warranty | 5 Years |

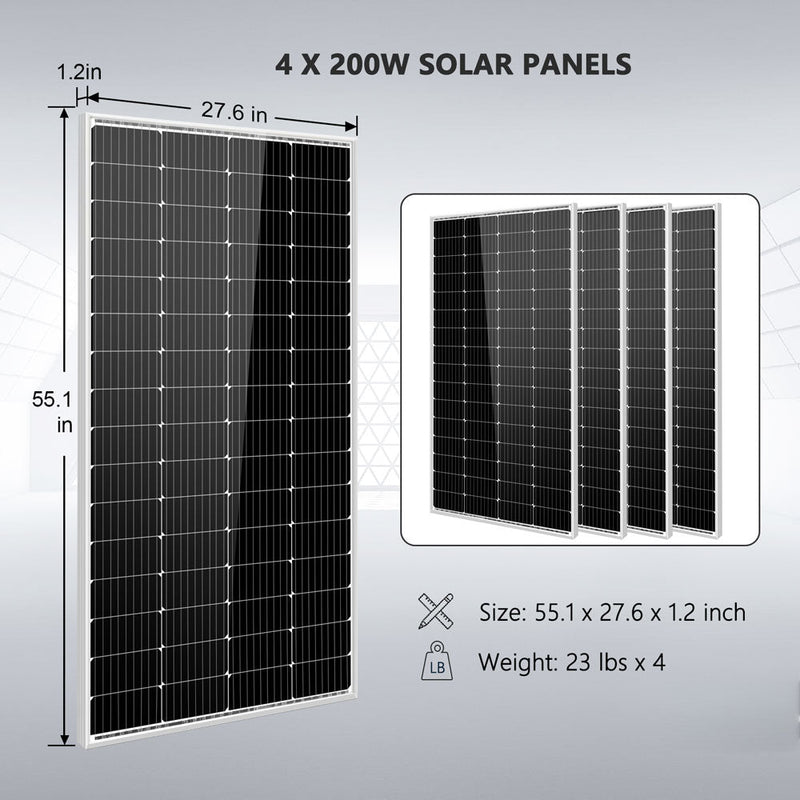

450 Watt Mono Solar Panel
| Specification | Details |
| Peak Power | 200W |
| Solar Cell | Monocrystalline |
| Product Tolerance | ±3% |
| Maximum Power Current (IMP) | 5.86A |
| Maximum Power Voltage (VMP) | 36.16V |
| Short Circuit Current (ISC) | 5.86A |
| Open Circuit Voltage (VOC) | 43.39V |
| Product Dimension | 55.1 × 27.6 × 1.2 inch |
| Product Weight | 23.32 lbs |
| Warranty | 25 Years |
Solar Kit Specification
| Specification | Details |
| Max Continuous Output | 3000W |
| AC Output | 120V, 50HZ / 60HZ |
| DC Voltage | 24V |
| Max Solar Input | 4000W |
| Total Watt of Panels | 800W |
| Per Panel Watt | 200 Watt |
| Panel NO. | 4 pcs |
| Total KWH of Batteries | 5.12KWH |
| Chemistry | Lithium |
| Battery NO. | 2 pcs |
| Battery Spec | 24V 100AH |
Frequently-Asked Questions
Is this kit suitable for full off-grid living?
It is ideal for small spaces and partial loads. For full off-grid home use, a larger system may be required depending on your energy needs.
Can I add more batteries or panels?
Yes, this system supports expansion. You can add additional panels or batteries to match your energy requirements.
Does the system come pre-wired?
Major components are ready to connect, and the included manual makes setup straightforward, even for beginners.
How long will the battery last?
The LiFePO4 battery can provide over 6000 cycles—translating to roughly 10–15 years of use under proper conditions.
