Sungold Power | 2 X 24V 100Ah LiFePO4 Deep Cycle Lithium Battery | Bluetooth / Self-Heating / IP65
Sungold Power | 2 X 24V 100Ah LiFePO4 Deep Cycle Lithium Battery | Bluetooth / Self-Heating / IP65
The Sungold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery is designed for high-efficiency energy storage and deep-cycle performance, perfect for solar systems, RVs, marine applications, off-grid power, and backup systems. This battery delivers more power, a longer lifespan, and increased reliability compared to traditional lead-acid batteries.
With advanced Bluetooth monitoring, self-heating functionality, and IP65 waterproof protection, this battery ensures uninterrupted power in all environments. The 2-battery bundle provides twice the capacity (4,800Wh total), making it ideal for high-energy applications.

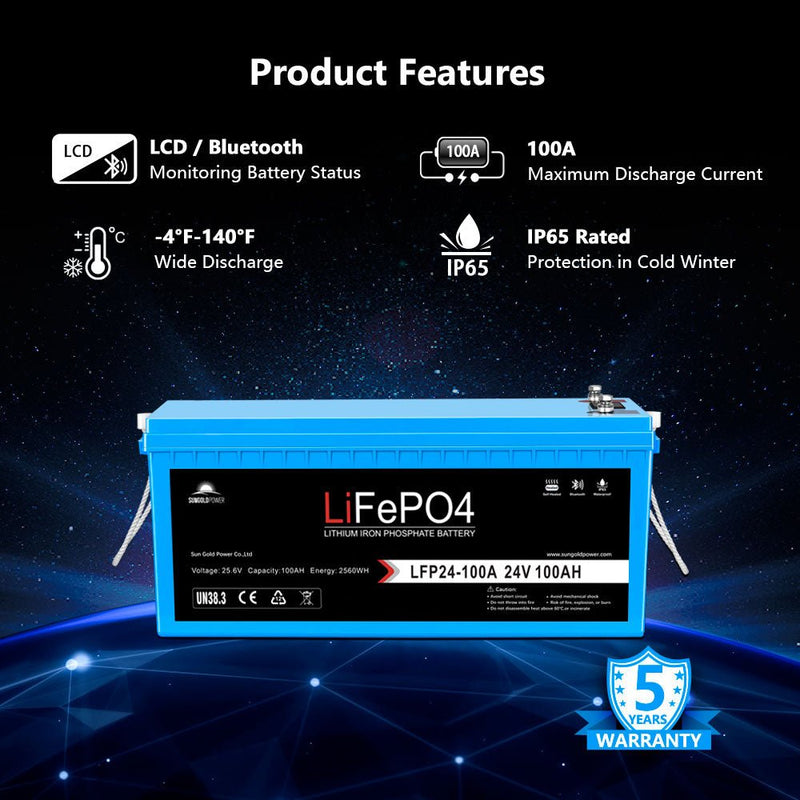

Sungold Power | 24V 100Ah LiFePO4 Battery Features
High-Capacity, Scalable Energy Storage
- 4,800Wh Total Energy (2 Batteries) – Ideal for solar, RV, and off-grid backup power.
- Expandable Parallel & Series Connection – Scale up your system for higher energy demands.
Long-Lasting & Reliable LiFePO4 Battery
- 6,000+ Deep Cycles at 80% Depth of Discharge (DoD).
- 10X Longer Lifespan than traditional lead-acid batteries.
- No Maintenance Required – No acid, fumes, or watering needed.
Durable, Waterproof, & Weather-Resistant
- IP65-Rated Protection – Shields against water, dust, and extreme weather.

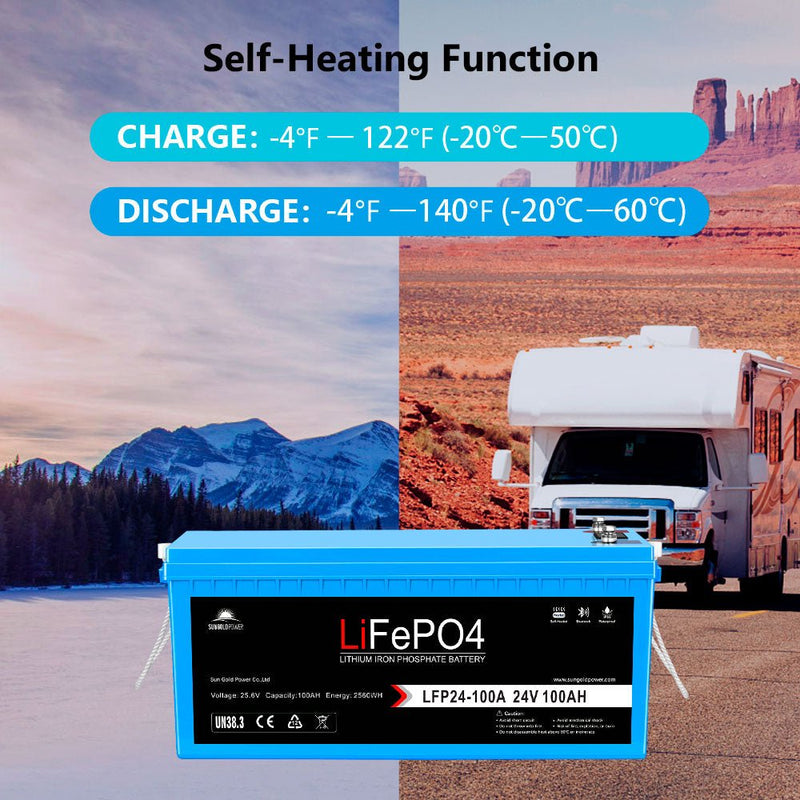

- Wide Operating Temperature Range – From -20°C to 60°C (-4°F to 140°F).
Sungold Power | 24V 100Ah LiFePO4 Battery Applications
- Solar Energy Storage – Store solar energy for off-grid power & backup.
- RV & Camper Van Power – Run appliances, lights, and electronics without noisy generators.
- Marine & Boating – Reliable power for trolling motors, fish finders, and onboard electronics.
- Off-Grid Living – Suitable for cabins, tiny homes, and remote installations.
- Backup Power Systems – Ensure emergency power during blackouts.
What's Included
Everything you need is included with your product.

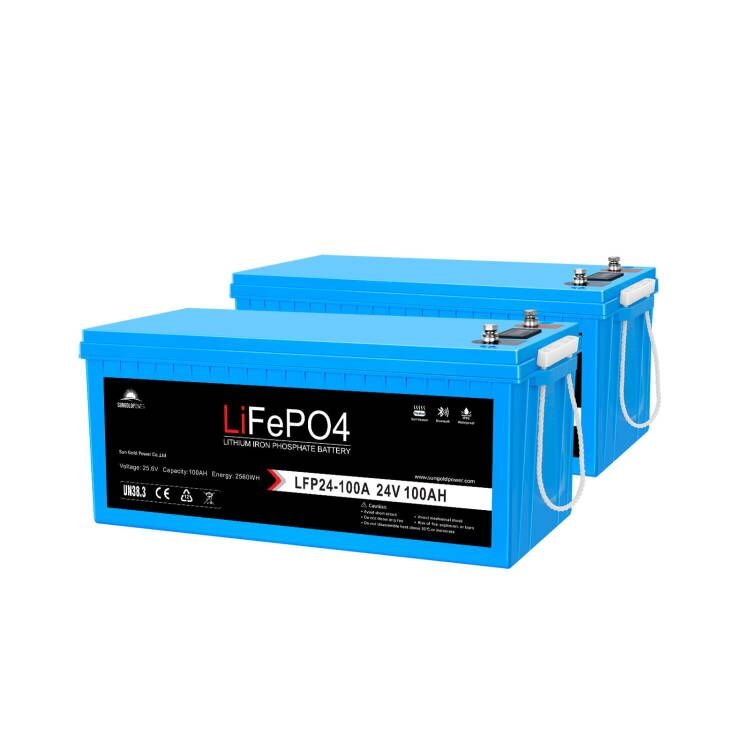

- 2 x 24V 100Ah LiFePO4 Batteries (4,800Wh Total)
- User Manual
Sungold Power | 24V 100Ah LiFePO4 Battery Specifications
NOMINAL CHARACTERISTICS
| Specification | Details |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Energy | 2560Wh |
| Efficiency | ≥99.5% |
| Recommend Connection | In Parallel |
CHARGE & DISCHARGE CHARACTERISTICS
| Specification | Details |
| Voltage Window | 21.6-29.2V |
| Max. Continuous Charge Current | 100A |
| Peak Discharge Current | 200A ± 3A (10s) |
| Recommended Charge Current | 50A |
| Recommended Discharge Current | 50A |
OPERATING CONDITIONS
| Specification | Details |

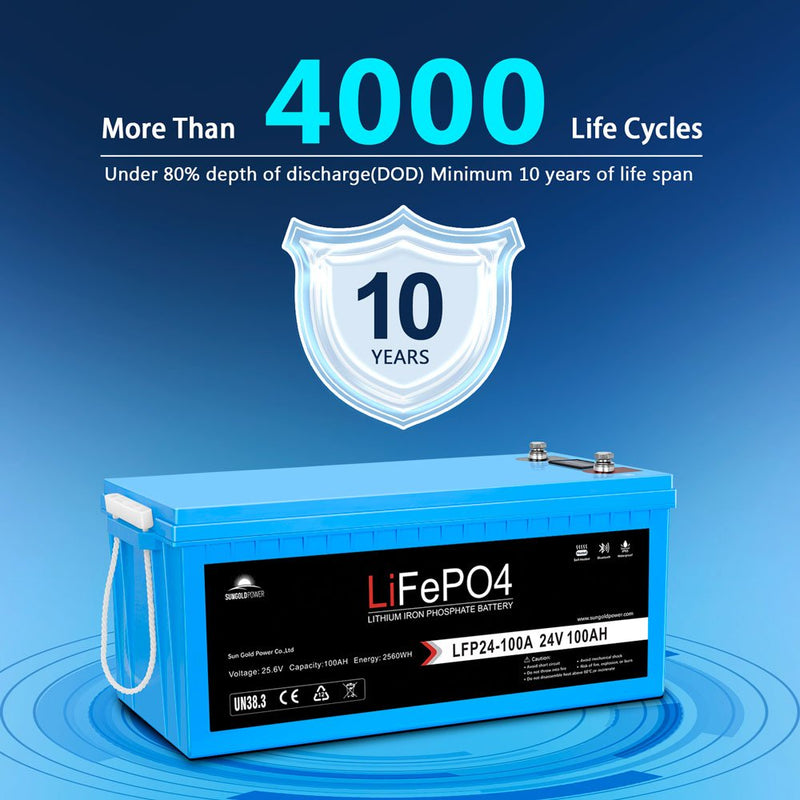

| Cycle Life (0.2C, 77°F; 80% DOD) | ≥4000 |
| Operating Temperature (Charge) | -4°F ~ 113°F (-20°C ~ 45°C) |
| Operating Temperature (Discharge) | -4°F ~ 131°F (20°C ~ 55°C) |
| Monitoring Function | LCD |
MECHANICAL CHARACTERISTICS
| Specification | Details |
| Case Material | ABS |

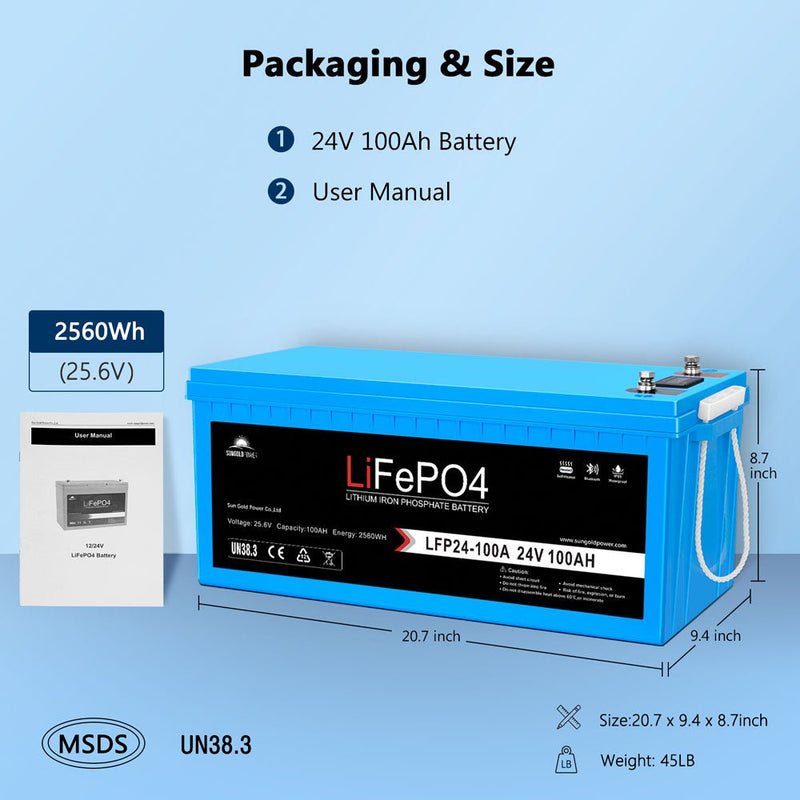

| Dimension (LWH) | 20.7 * 9.4 * 8.7 inches |
| Weight | 45 lbs |
| Terminal Type | M8 |
| IP Grade | 65 |
BMS CHARACTERISTICS
| Specification | Details |

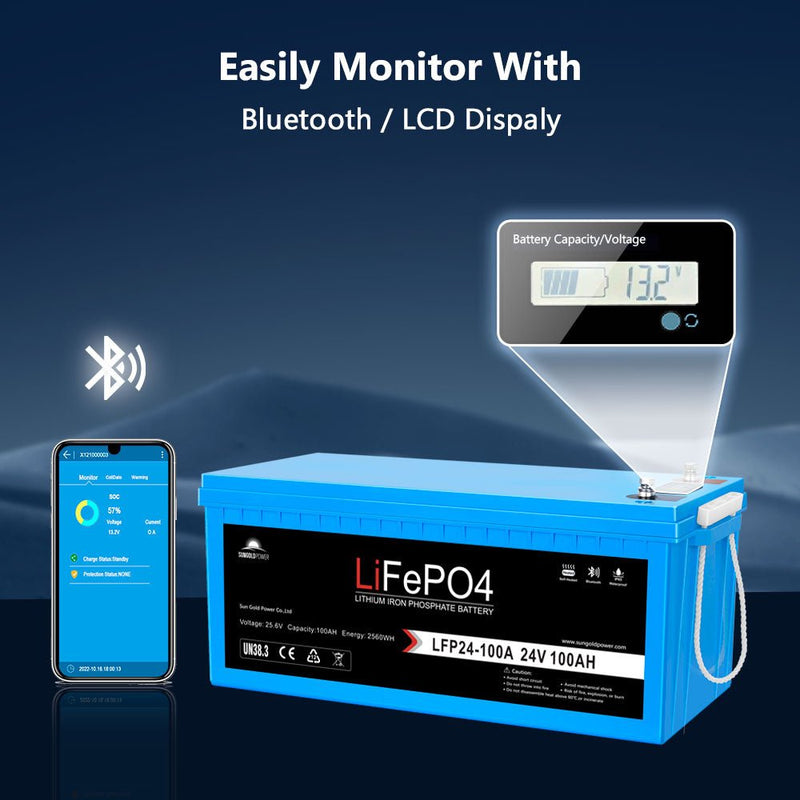

| Communicating Function | Bluetooth |
Frequently-Asked Questions
How long does the Sungold Power 24V 100Ah LiFePO4 Battery last?
With 6,000+ charge cycles, this battery can last 10+ years, making it a long-term, cost-effective energy storage solution.
Can I expand this battery system for larger energy needs?
Yes! These batteries support both parallel and series connections, allowing you to increase capacity and voltage for custom energy systems.
Is this battery compatible with my solar system?
This 24V LiFePO4 battery is compatible with most solar charge controllers and inverters, but it's always recommended to check compatibility before installation.
How does the built-in Battery Management System (BMS) work?
The BMS ensures safe operation by providing overcharge, over-discharge, short-circuit, and temperature protection, maximizing the lifespan of the battery.
Can this battery be installed outdoors?
Yes, with its IP65-rated waterproof and dustproof housing, it can be used in outdoor setups, but should be protected from direct sunlight and extreme weather for longevity.
Does this battery require maintenance?
No! Unlike lead-acid batteries, LiFePO4 batteries are maintenance-free—no water refilling, no corrosion, and no off-gassing.
Can I use this battery for emergency backup power?
Yes! This battery is ideal for backup power systems, ensuring uninterrupted energy during power outages.
