Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65
Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65
The Sungold Power 24V 100Ah LiFePO4 Battery is a premium deep-cycle power solution built for both off-grid and backup applications. With integrated Bluetooth monitoring, self-heating for cold weather, and a rugged IP65 waterproof rating, this battery offers long-lasting, worry-free performance in a wide range of environments. Built with Grade A LiFePO4 cells, it delivers 2.56kWh of reliable, safe power and a cycle life of over 6000 cycles at 80% depth of discharge—perfect for solar systems, RVs, marine, and backup power setups.

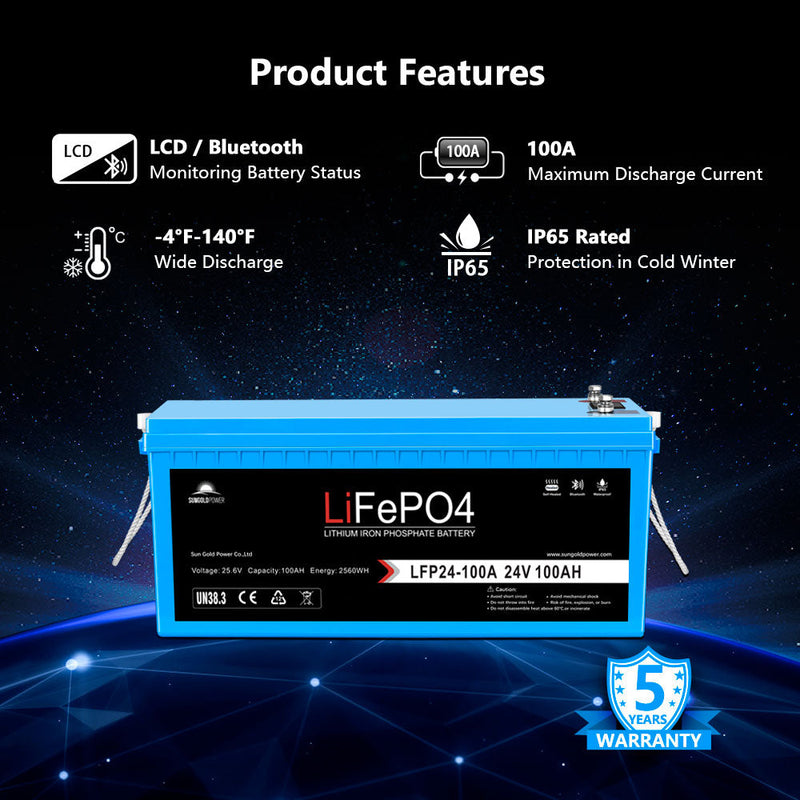

Sungold Power 24V 100Ah LiFePO4 Battery Features

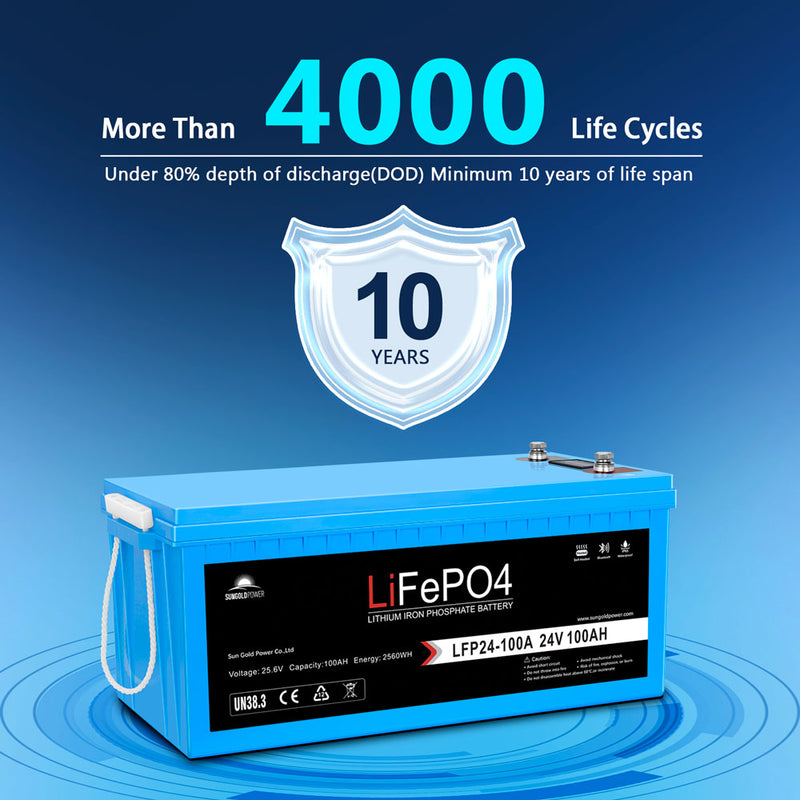

Long-Lasting Power – 6000+ Cycles
Enjoy over a decade of use with high-quality LiFePO4 cells delivering exceptional lifespan and performance.

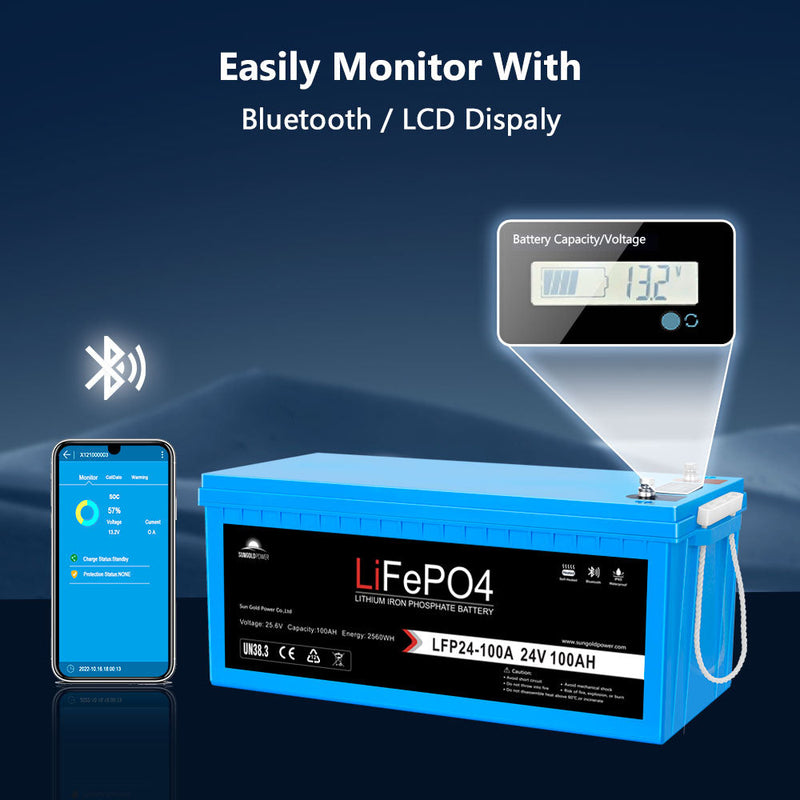

Bluetooth Monitoring – Real-Time Data Access
Track your battery status with a smartphone app, including SOC, voltage, temperature, and charge/discharge status.

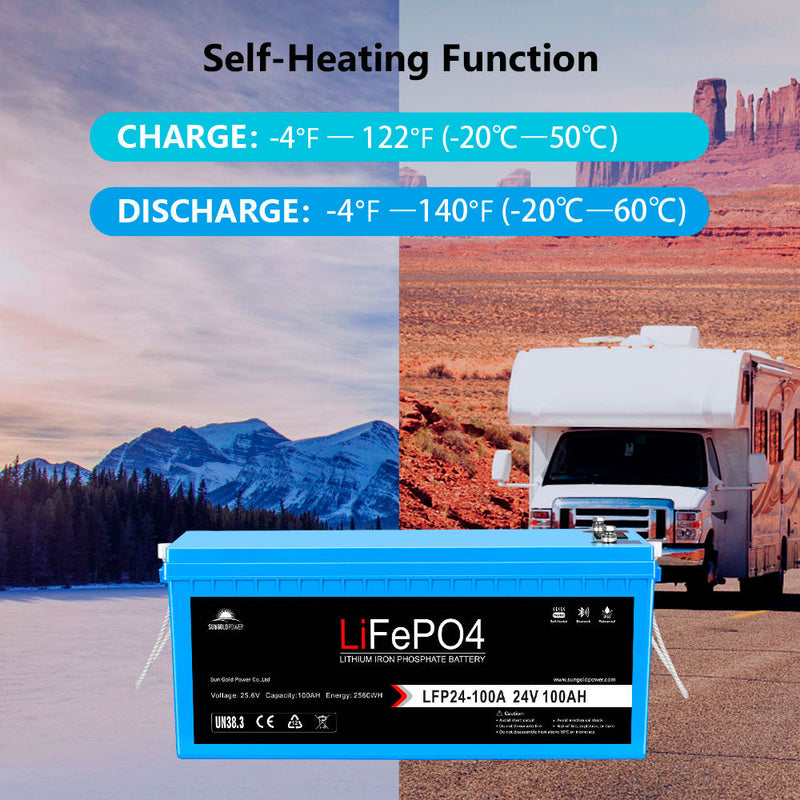

Self-Heating Function – Cold Weather Ready
Safely charges in sub-zero conditions thanks to built-in heating elements that activate automatically.
IP65 Waterproof Rating – Outdoor-Ready
Fully sealed design protects against water, dust, and debris—perfect for marine, RV, and remote installs.
BMS Protection – Built-In Battery Management System
Advanced BMS safeguards against over-voltage, short circuit, low temperature, and overcurrent conditions.
Sungold Power 24V 100Ah Applications
- Off-Grid Solar Systems – Reliable storage for cabins, homesteads, and backup setups
- RVs & Van Conversions – Compact, lightweight power with remote monitoring
- Marine Applications – IP65 water-resistant build for boats and yachts
- Emergency Power Backup – Always-on solution for home or business resilience
- Mobile Solar Projects – Perfect for portable or DIY solar systems
What's Included
Everything you need is included with your product.
- Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65
- User Manual
Sungold Power | 24V 100Ah LiFePO4 Battery Specifications
NOMINAL CHARACTERISTICS
| Specification | Details |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Energy | 2560Wh |
| Efficiency | ≥99.5% |
| Recommend Connection | In Parallel |
CHARGE & DISCHARGE CHARACTERISTICS
| Specification | Details |
| Voltage Window | 21.6-29.2V |
| Max. Continuous Charge Current | 100A |
| Peak Discharge Current | 200A ± 3A (10s) |
| Recommended Charge Current | 50A |
| Recommended Discharge Current | 50A |
OPERATING CONDITIONS
| Specification | Details |
| Cycle Life (0.2C, 77°F; 80% DOD) | ≥4000 |
| Operating Temperature (Charge) | -4°F ~ 113°F (-20°C ~ 45°C) |
| Operating Temperature (Discharge) | -4°F ~ 131°F (20°C ~ 55°C) |
| Monitoring Function | LCD |
MECHANICAL CHARACTERISTICS
| Specification | Details |
| Case Material | ABS |

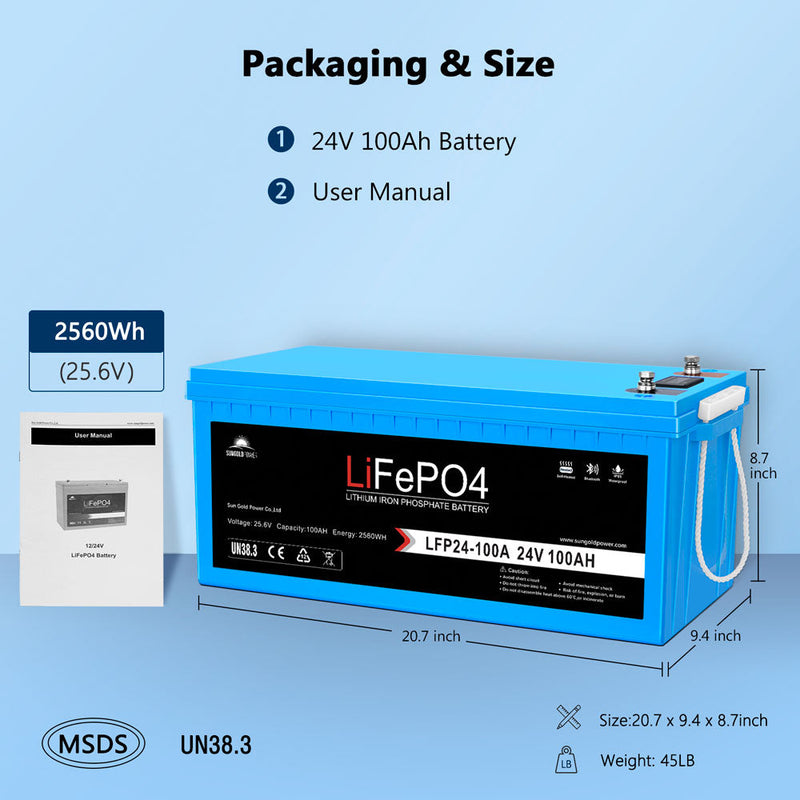

| Dimension (LWH) | 20.7 * 9.4 * 8.7 inches |
| Weight | 45 lbs |
| Terminal Type | M8 |
| IP Grade | 65 |
BMS CHARACTERISTICS
| Specification | Details |
| Communicating Function | Bluetooth |
Frequently-Asked Questions
How long does the Sungold Power 24V 100Ah LiFePO4 Battery last?
With 6,000+ charge cycles, this battery can last 10+ years, making it a long-term, cost-effective energy storage solution.
Can I expand this battery system for larger energy needs?
Yes! These batteries support both parallel and series connections, allowing you to increase capacity and voltage for custom energy systems.
Is this battery compatible with my solar system?
This 24V LiFePO4 battery is compatible with most solar charge controllers and inverters, but it's always recommended to check compatibility before installation.
How does the built-in Battery Management System (BMS) work?
The BMS ensures safe operation by providing overcharge, over-discharge, short-circuit, and temperature protection, maximizing the lifespan of the battery.
Can this battery be installed outdoors?
Yes, with its IP65-rated waterproof and dustproof housing, it can be used in outdoor setups, but should be protected from direct sunlight and extreme weather for longevity.
Does this battery require maintenance?
No! Unlike lead-acid batteries, LiFePO4 batteries are maintenance-free—no water refilling, no corrosion, and no off-gassing.
Can I use this battery for emergency backup power?
Yes! This battery is ideal for backup power systems, ensuring uninterrupted energy during power outages.
