Sungold Power Off-Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels
Sungold Power Off-Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels
The Sungold Power 6000W Off-Grid Solar Kit is a reliable and high-capacity energy solution for powering off-grid homes, cabins, and emergency backup systems. With a 24VDC pure sine wave inverter, 10.24kWh of lithium battery storage, and six 370W monocrystalline panels, this complete kit delivers 120V/240V split-phase output for both low and high-demand appliances. Designed for long-term use and future expansion, it offers peace of mind with clean, consistent power—anytime, anywhere.
Sungold Power Off-Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels Features
6000W Split-Phase Inverter (24VDC to 120V/240V AC)
Delivers reliable power output with dual voltage support for a wider range of residential and off-grid applications.
10.24kWh LiFePO4 Lithium Battery (24V 400Ah)
Long-lasting lithium iron phosphate battery with over 6000 life cycles at 80% DOD. Built-in BMS ensures smart energy protection.
6 x 370W Monocrystalline Solar Panels (2220W Total)
Efficient solar panels built with durable aluminum frames and tempered glass for year-round outdoor use.
Built-In MPPT Solar Charge Controller
Maximizes solar efficiency by automatically tracking input conditions to speed up battery charging and reduce losses.
High-Capacity 24V System
Lower current compared to 12V systems, minimizing energy loss and allowing more efficient cable management.
Pre-Configured and Expandable
All components come ready to install, with room to grow by adding more panels or batteries as energy needs increase.
Sungold Power Off-Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels Applications
- Full off-grid homes and remote cabins - Supplies essential electricity for everyday appliances like fridges, lights, microwaves, and communication systems.
- Workshops or garages - Reliable power source for off-grid tool sheds, garages, or project spaces running medium-load tools and lights.
- Backup systems for homes or small businesses - Maintains power for critical loads during outages or blackouts, including routers, medical devices, and emergency lighting.
- Rural or agricultural sites - Powers irrigation systems, electric fencing, and remote farm buildings with no grid access.
- Mobile or temporary structures - Perfect for off-grid living setups like tiny homes, mobile offices, or remote event booths.

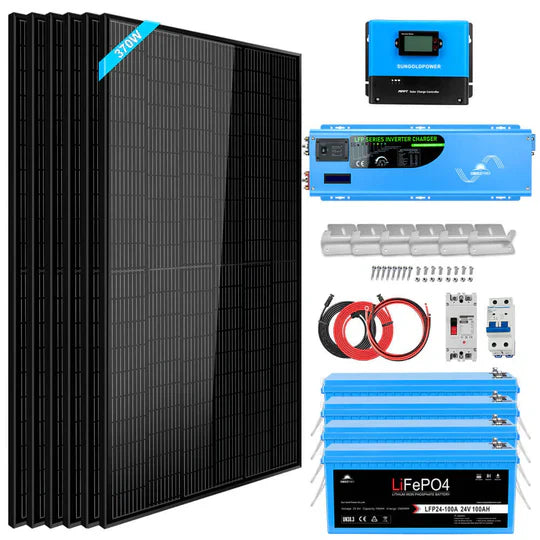

What's Included
Everything you need is included with your product.
- 1 X 6000 Watt 24V DC 120V/240V Inverter/Charger
- 6 X 370 Watt Monocrystalline Solar Panels

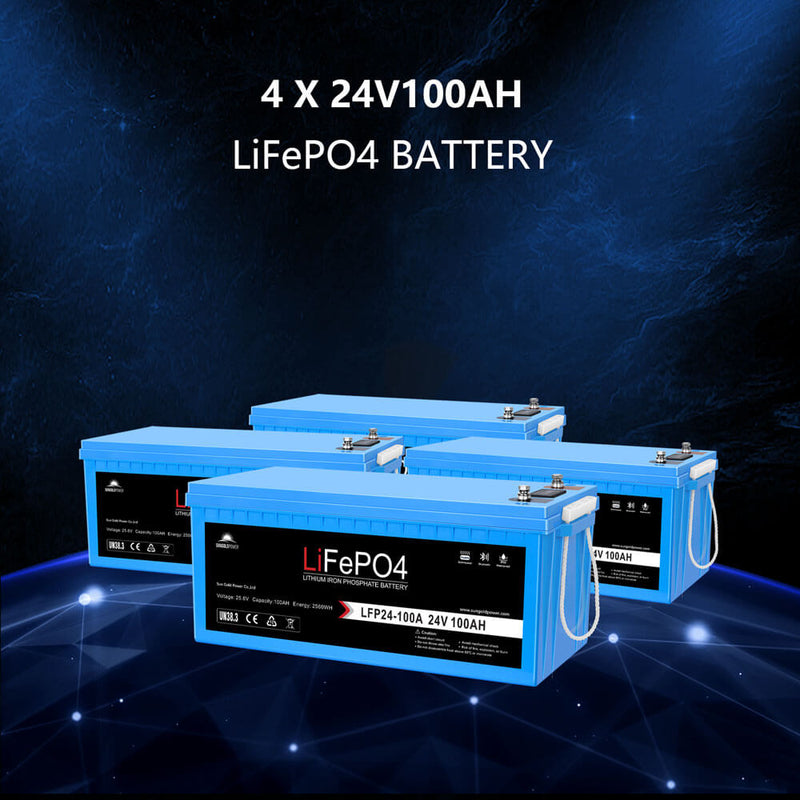

- 4 X 24V 100AH LifePO4 Battery with Bluetooth
- 1 X 100A Mppt Solar Charge Controller
- 1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
- 1 Sets X Cable Between Battery and MPPT Controller
- 6 Sets X of Mounting Z-Brackets
- 1 X 400A DC Breaker
- 1 X 25A PV Breaker
Sungold Power Off-Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels Specifications

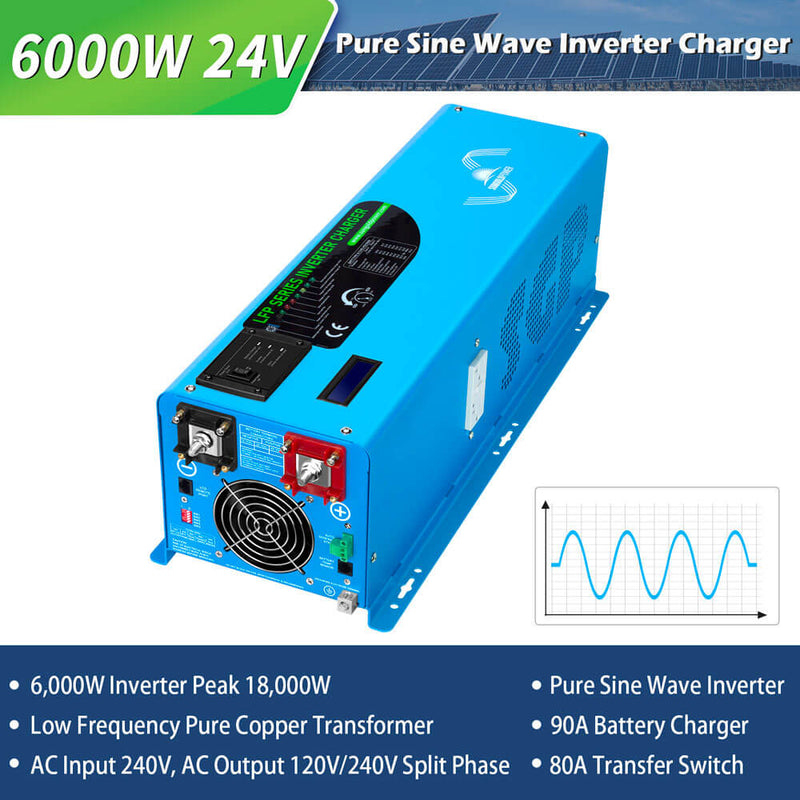

6000 Watt Inverter
| Specification | Details |
| AC Output | 6000W |
| Output Waveform | Pure Sine Wave |
| AC Output | 120V / 240V |
| Efficiency | >88% |
| Nominal Input Voltage | 24VDC |
| Max Charging Current | 90 ± 5A |
| Dimension | 25.6 × 9.1 × 7.5 inch |
| Weight | 76.7 LB |
| Warranty | 3 Years |

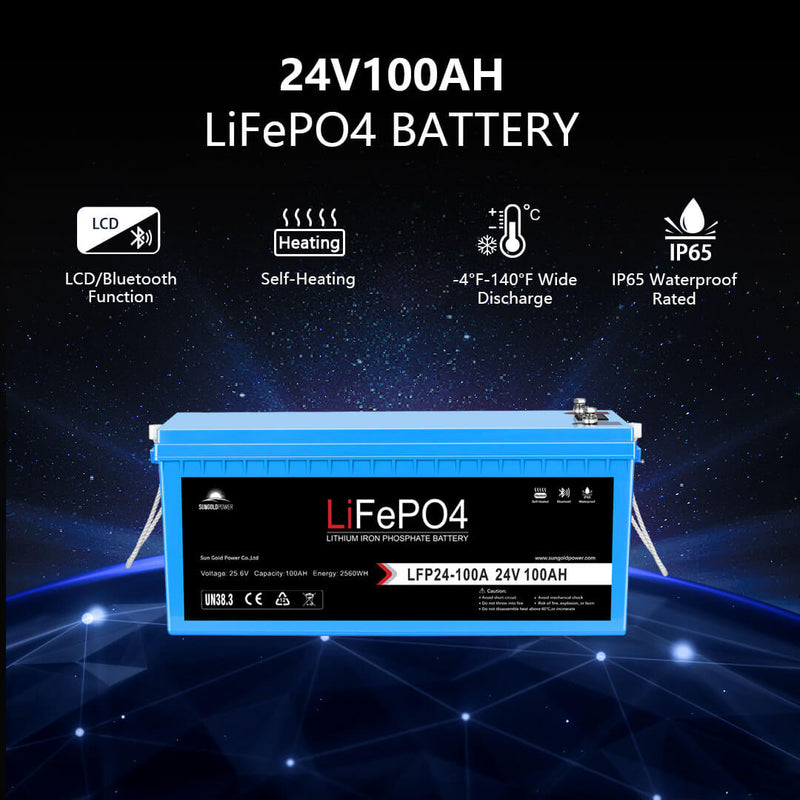

SGP24V100S LifePo4 Battery
| Specification | Details |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100AH |
| Energy | 2560WH |
| Voltage Window | 21.6 – 29.2V |
| MAX Continuous Charge Current | 100A |
| Peak Discharge Current | 200A ± 3A (10s) |
| Cycle Life | >4000 |
| Main Character | Self Heating / IP65 |
| Monitoring Function | LCD / Bluetooth |
| Dimension | 20.7 × 9.4 × 8.7 inch |
| Weight | 45 lbs |
| Warranty | 5 Years |

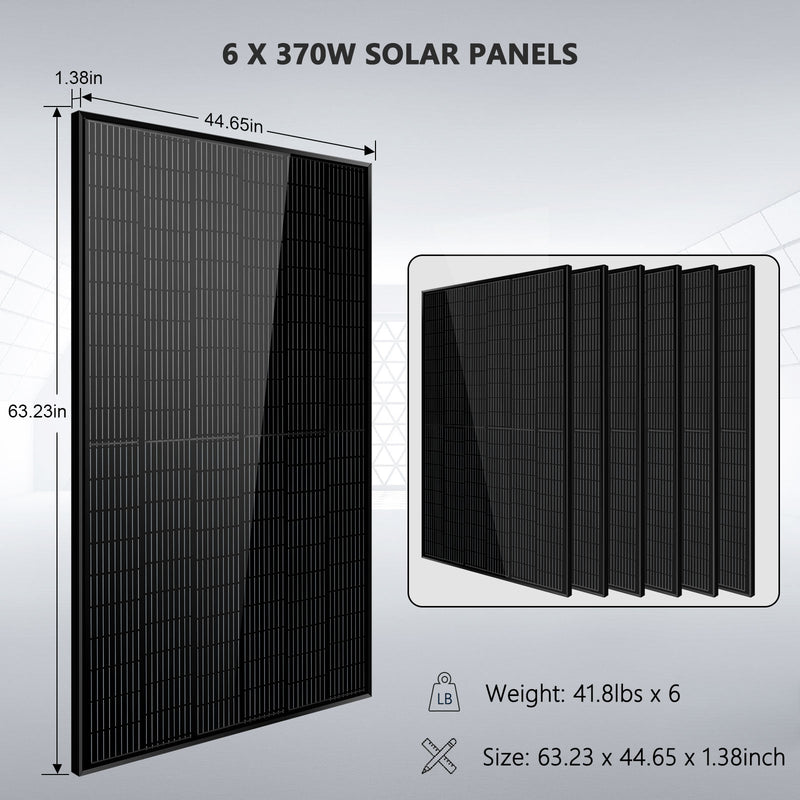

370 Watt Mono Solar Panel
| Specification | Details |
| Peak Power | 370W |
| Solar Cell | Monocrystalline |
| Product Tolerance | ±3% |
| Maximum Power Current (IMP) | 11.15A |
| Maximum Power Voltage (VMP) | 33.2V |
| Short Circuit Current (ISC) | 11.81A |
| Open Circuit Voltage (VOC) | 40.17V |
| Product Dimension | 63.23 × 44.65 × 1.38 inch |
| Product Weight | 41.8 lbs |
| Warranty | 25 Years |
| Certificates | UL61730, TUV, IEC, CEC, CE... |

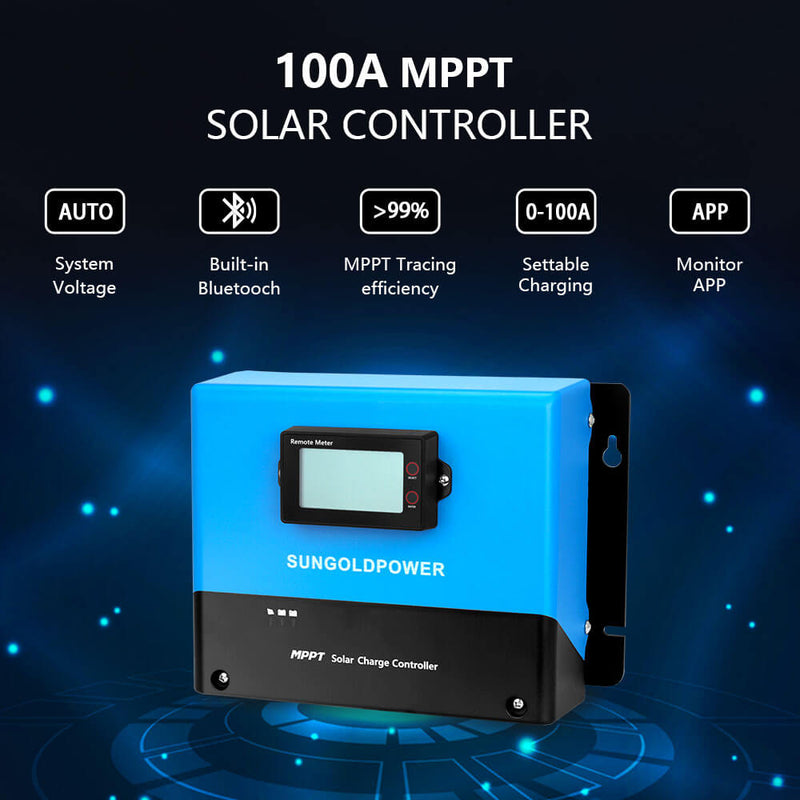

100A MPPT Solar Controller
| Specification | Details |
| System Voltage | 12V / 24V / 36V / 48V Auto |
| Support | Bluetooth and APP monitoring |
| Maximum PV Open-circuit Voltage | 250V |
| Maximum PV Short-circuit Current | 70A |
| Rated Charging Current | 100A |
| Settable Charging Current | 0 – 100A |
| Power of Solar Panel | 12V – 1320W, 24V – 2640W | 36V – 3960W, 48V – 5280W |
| MPPT Tracing Efficiency | >99% |
| Product Dimension | 12.4 × 8.9 × 4.8 inch |
| Weight | 12.5 lb |
| Warranty | 3 Years |
Solar Kit Specification
| Specification | Details |
| Max Continuous Output | 6000W |
| AC Output | 120V / 240V |
| DC Voltage | 24V |
| Max Solar Input | 5280W |
| Total Watt of Panels | 2220W |
| Per Panel Watt | 370 Watt |
| Panel No. | 6 pcs |
| Total KWH of Batteries | 10.24KWH |
| Chemistry | Lithium |
| Battery No. | 4 pcs |
| Battery Spec | 24V 100AH |
Frequently Asked Questions
Can this system run both 120V and 240V appliances?
Yes, the split-phase inverter is designed to power both standard and high-voltage appliances such as dryers or pumps.
Can I install this system myself?
Yes. The system is DIY-friendly with labeled components and included manuals, but professional installation is recommended for compliance and safety.
Can I expand this system later?
Absolutely. The system is built to support expansion. You can add more solar panels or battery banks as your needs grow.
How long does the battery last?
With 6000+ cycles at 80% depth of discharge, the battery is built to last over 10 years with regular use.
