BigBattery 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh
The BigBattery 24V EAGLE 2 is a compact, reliable LiFePO4 battery built for small to mid-sized energy systems where performance, safety, and longevity matter. With 1.63kWh of energy and a lightweight, rugged design, the EAGLE 2 is ideal for boating, motorcycles, electric scooters, mobile setups, and compact solar storage. Built with Tier 1 LiFePO4 cells, a smart BMS, and automotive-grade safety features, this battery delivers consistent power for a variety of 24V applications.
BigBattery 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh Features
Compact Energy Storage – Packs 1.63kWh of usable energy into a compact, lightweight frame—perfect for mobile and small-scale power systems.
Long-Lasting Performance – Built with Tier 1 LiFePO4 cells for 3,000–6,000+ cycles and 10+ years of expected lifespan.
Integrated Smart BMS – Advanced Battery Management System protects against over-voltage, over-current, short circuits, and extreme temps.
Fast Charge & Discharge – Supports a continuous discharge rate of 100A, ideal for motors, inverters, and high-demand devices.
Safe & Maintenance-Free – Includes fire suppression tech, no off-gassing, and no required maintenance—unlike lead-acid systems.
Rugged & Versatile – Designed for boats, motorcycles, campers, golf carts, scooters, and more with durable casing and compact design.
BigBattery 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh Applications
- Boats & Marine Power – Reliable onboard power for trolling motors, fish finders, and nav systems.
- Motorcycles & Scooters – Lightweight energy for electric bikes, scooters, and motorcycles.
- Campers & Vans – Compact solar storage for off-grid travel and small inverters.
- Golf Carts & Buggies – Clean, efficient battery swap for traditional lead-acid banks.
- Portable Solar Systems – Great for mobile panels and 24V solar kits.
- Backup Power – Reliable 24V backup for medical devices or communication systems.
- DIY Power Projects – Ideal for off-grid lighting, irrigation, and remote applications.

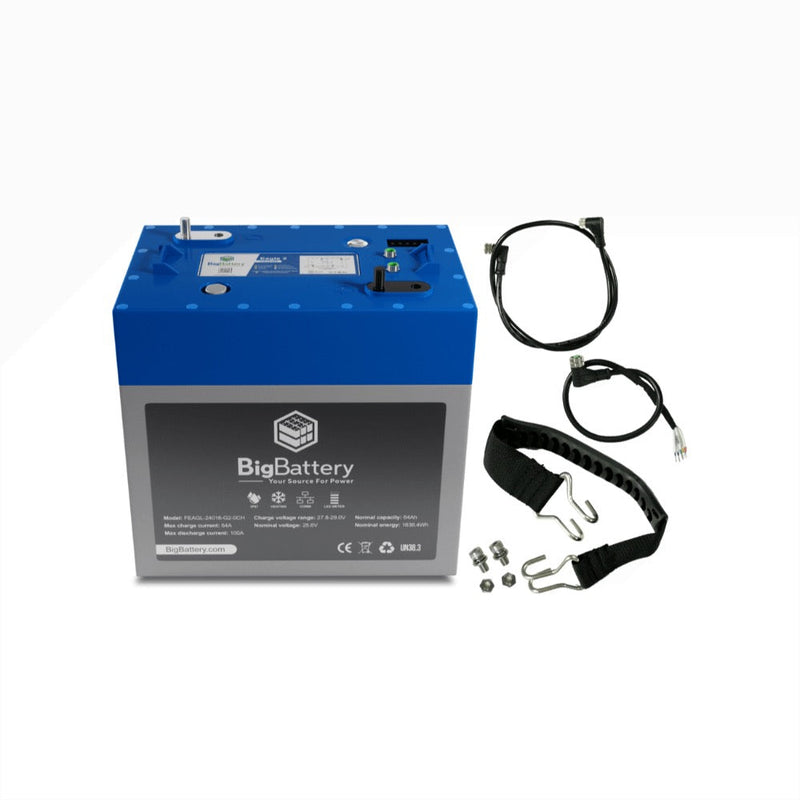

What's Included
Everything you need is included with your product.
- (1) Eagle 2 Carrying Handle
- (1) Eagle 2 CAN Comm Cable
- (1) Parallel CAN Comm Cable
- (2) M8 Nuts & Screws
- User Manual
BigBattery 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh Specifications
| Category | Specifications |
| SKU | FEAGL-24016-G2-0CH |
| UPC | 850061252197 |
| System Voltage: | 24V |
| Nominal Voltage: | 25.6V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 1.63kWh |
| Ah Capacity: | 64Ah |
| Charging Voltage Range: | 27.8 - 29V |
| Max Charge Voltage: | 29.2V |
| Operating Voltage Range: | 24 - 28.8V |
| Suggested Low Voltage Cutoff: | 24 - 25.4V |
| BMS Cutoff Range: | 21 - 23.5V |
| Cell Configuration: | 8S |
| Max Continuous Discharge Current: | 100A |
| Max Continuous Power: | 2560W |
| Max Discharge Peak Current: | 200A (Max 5 seconds) |
| Max Charge Current: | 64A |
| Charge Temperature Range: | -4°F - 131°F (-20°C - 55°C) |
| Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range: | 23°F - 95°F (-5°C - 35°C) (Max 3 months) | 32°F - 77°F (0°C - 25°C) (Max 12 months) |
| Weight | 38 lb (17.2 kg) |

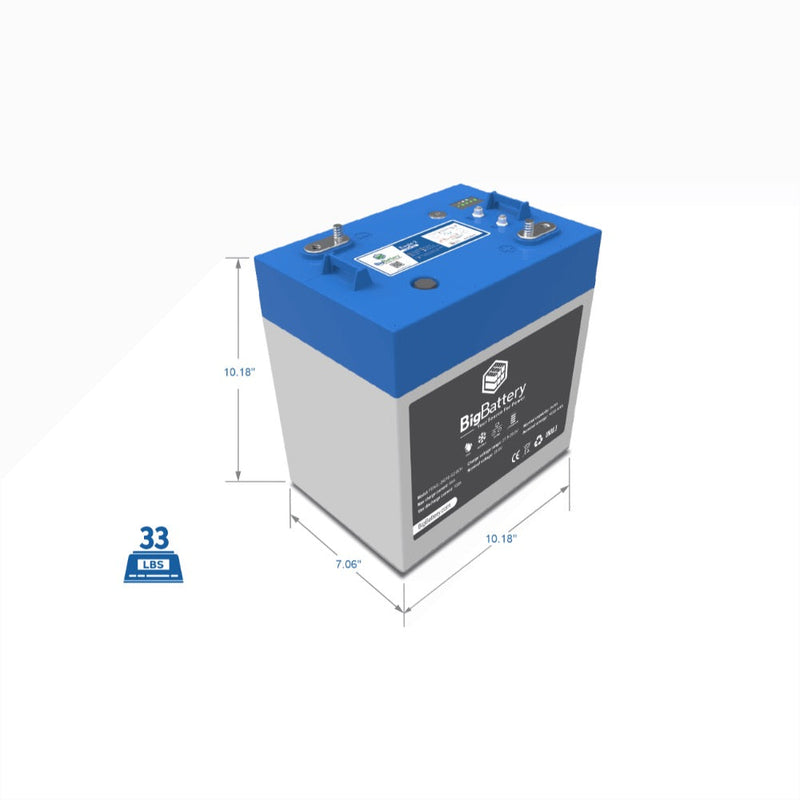

| Depth | 7.1 in (180 mm) |
| Width | 10.2 in (260 mm) |
| Height | 10.8 in (274 mm) |
| Max Connections: | Up to (10) Parallel |
| Protection Rating: | IP67 / NEMA 6 |
| Communications: | CANBus |
| Self-Heating: | Yes |
BigBattery 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh Videos
Frequently-Asked Questions
Can I connect multiple EAGLE 2 batteries together?
Yes. You can connect them in parallel to increase capacity, or in series (up to 2) to create a 48V system. Always use batteries with the same age and charge level.
Is this a drop-in replacement for lead-acid batteries?
Yes! The EAGLE 2 can replace 24V lead-acid systems and offers longer lifespan, faster charging, and no maintenance.
Can I use this with a solar charge controller?
Absolutely. Just ensure your charge controller supports 24V lithium batteries with proper voltage ranges (up to 29.2V).
Is the battery weatherproof?
The EAGLE 2 has an IP54 rating, making it suitable for outdoor use with basic splash and dust protection. Avoid full submersion or constant rain exposure.
