Pytes 20.48 kWh Battery Cabinet Bundle – Includes 4 x V5 Batteries & Outdoor Enclosure
The Pytes 20.48 kWh Battery Cabinet Bundle is a complete, all-in-one storage solution designed for high-capacity residential and commercial energy systems. It includes four Pytes V5 LiFePO4 batteries, each offering 5.12kWh, and a weather-resistant outdoor battery cabinet. Built for safety, scalability, and long-term performance, this bundle provides a ready-to-install energy storage system compatible with many of today’s leading inverters. Perfect for off-grid, hybrid, or backup applications.
Pytes 20.48 kWh Battery Cabinet Bundle – Includes 4 x V5 Batteries & Outdoor Enclosure Features

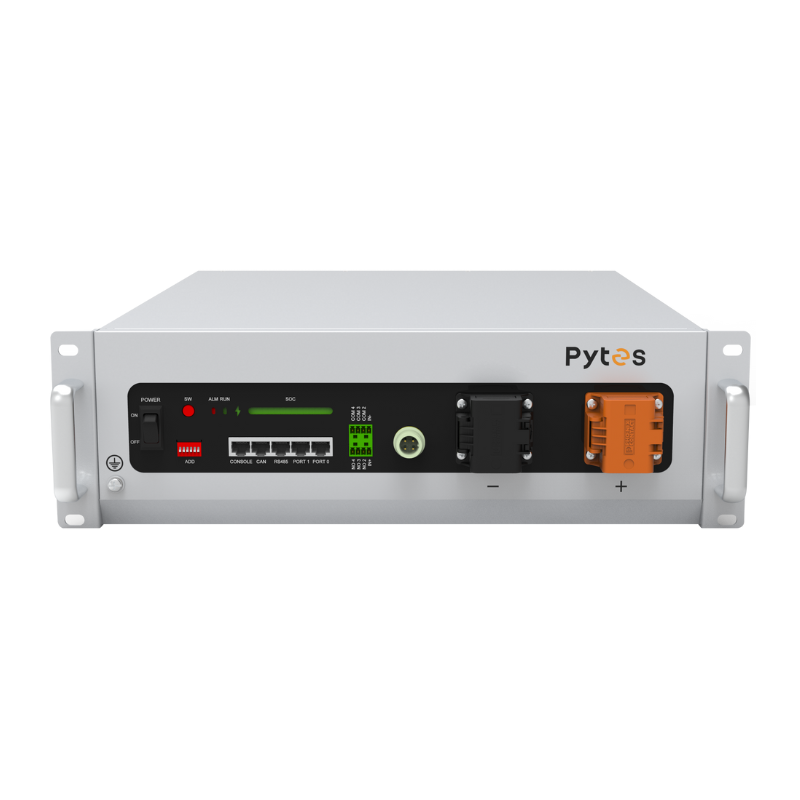

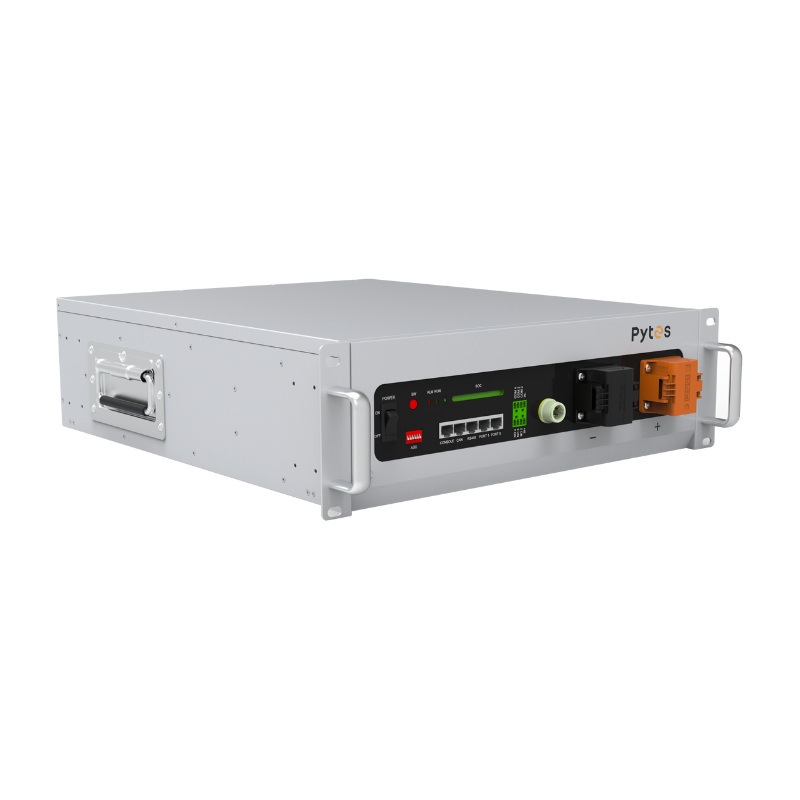

Includes 4 x Pytes V5 Batteries (20.48kWh Total)
Each V5 battery delivers 5.12kWh at 51.2V, 100Ah—designed with advanced LiFePO4 chemistry and over 6000 life cycles at 80% DOD.

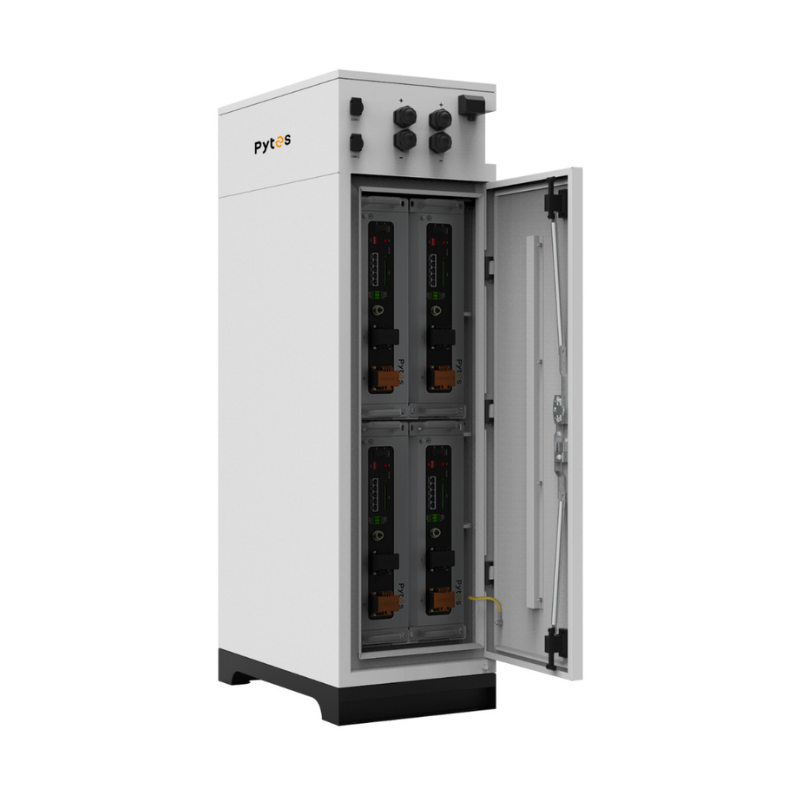

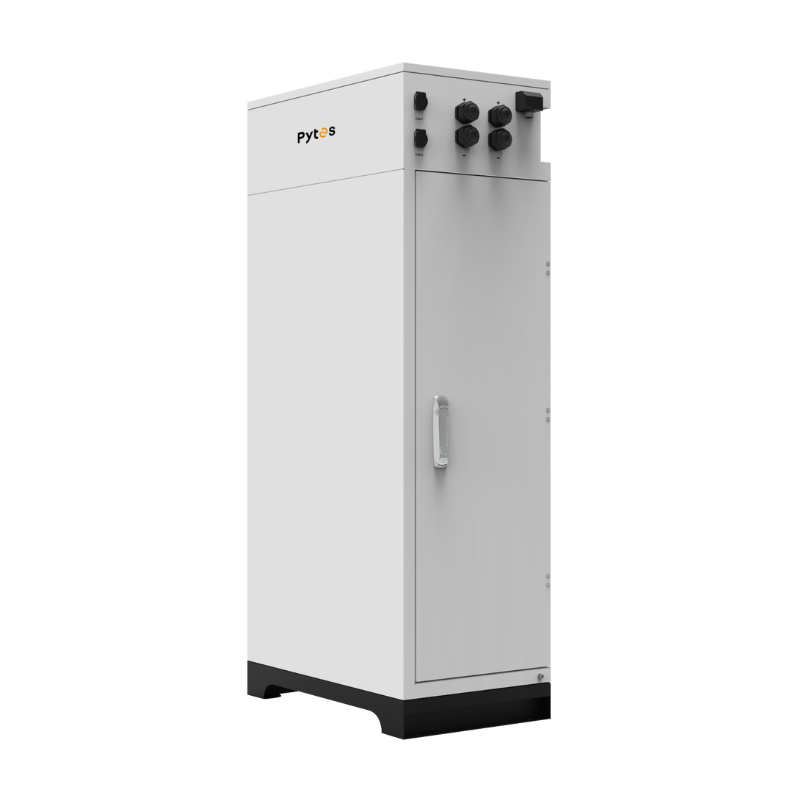

Pre-Wired Outdoor Battery Cabinet
IP-rated cabinet provides weather-resistant, secure housing for all four batteries—ideal for outdoor installations or space-limited setups.
Rack-Mount Compatible Design
V5 batteries slide into cabinet rails easily for clean, stackable installation. Compatible with standard rack-mount systems and includes internal wiring.
Smart BMS Built into Each Battery
Each battery features a built-in Battery Management System for real-time protection against overvoltage, overheating, short circuits, and more.
CAN/RS485 Communications Ready
Enables seamless integration with major inverter brands. Supports inverter communication and future expansion with up to 16 units.
Expandable Storage Solution
Start with 20.48kWh and grow from there—this bundle is ready for system scaling through parallel battery connections.
Pytes 20.48 kWh Battery Cabinet Bundle – Includes 4 x V5 Batteries & Outdoor Enclosure Applications
- Off-grid and hybrid solar systems - Provides dependable energy storage for homes, cabins, or business locations operating independently or alongside the grid.
- Residential backup power - Stores large amounts of energy for powering essential devices like refrigerators, HVAC, lighting, and medical equipment during blackouts.
- Commercial and light industrial energy storage - Scalable power storage for peak shaving, load shifting, and critical system backup for small businesses and light commercial use.
- Expandable battery systems - Ideal for growing solar setups. Easily add more V5 batteries to extend runtime and support larger loads over time.
- Outdoor battery installations - Purpose-built weather-resistant cabinet protects your investment while offering clean, organized storage in external environments.
What's Included
Everything you need is included with your product.
- 4 × Pytes V5 LiFePO4 Battery (5.12kWh each)
- 1 × Pytes V-BOX-OC Outdoor Battery Cabinet
- 1 × Pytes V5 B2I Communication Cable
- User Manual
Pytes 20.48 kWh Battery Cabinet Bundle – Includes 4 x V5 Batteries & Outdoor Enclosure Specifications
| Category | Specifications |
| Load Capacity | 4*V5° |
| Structure | Busbar & DC Circuit Breaker Integrated |
| Dimensions (L*W*H) | 25.4*15.6*54.9 inch |
| Weight | 194lbs |
| Mount | Floor Mount |
| Enclosure Rating | IP55 |
| Enclosure Material | SGCC(Galvanized Steel) |
| Cooling | Natural Convection |
Frequently-Asked Questions
Can this cabinet be installed outdoors?
Yes. The included enclosure is designed for outdoor use with weatherproof construction and integrated ventilation.
Do the batteries come pre-installed?
No. Batteries ship separately but are easily rack-mounted into the included cabinet using pre-installed rails.
Is the bundle compatible with my inverter?
The V5 batteries support CAN and RS485 protocols and are compatible with many inverter brands including Growatt, Sol-Ark, Luxpower, and EG4.
Can I expand the system later?
Yes. You can connect up to 16 V5 batteries in parallel for larger energy storage needs.
Is a battery hub required?
For more than three batteries in communication with an inverter, the optional Pytes Battery Hub is recommended for synchronized communication.
