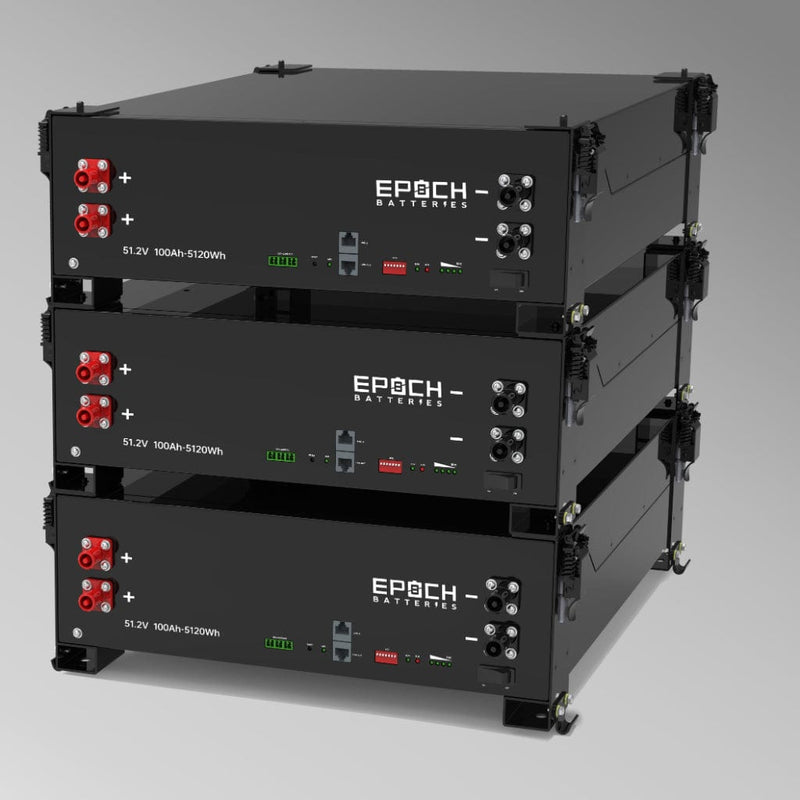

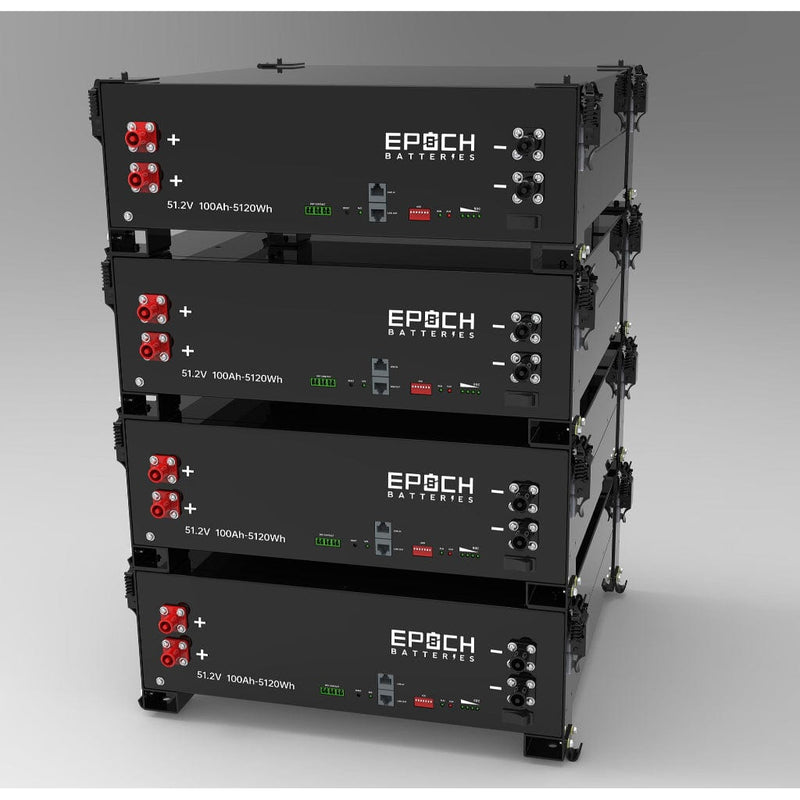

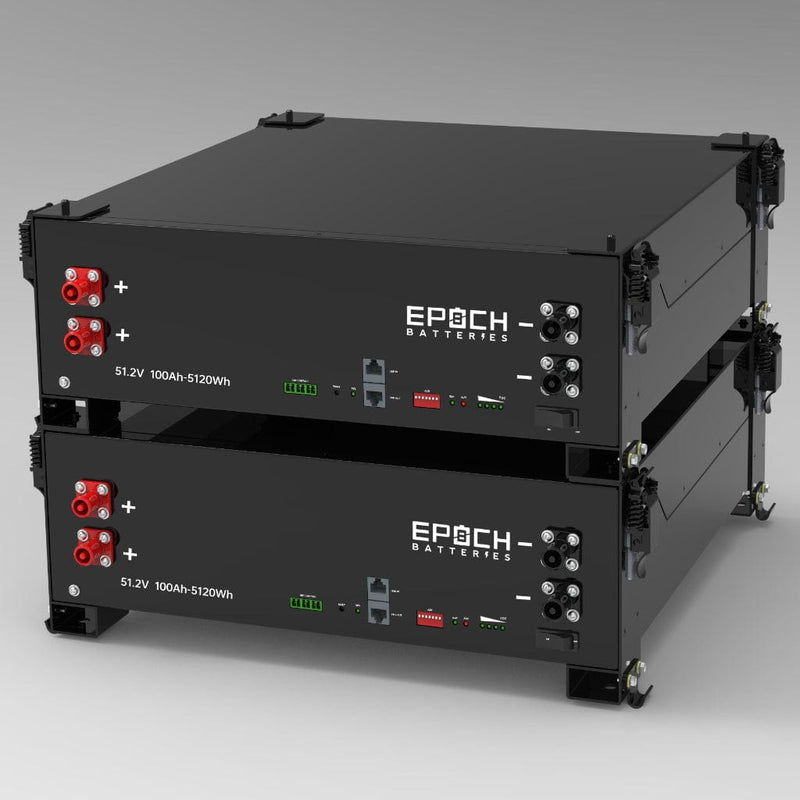

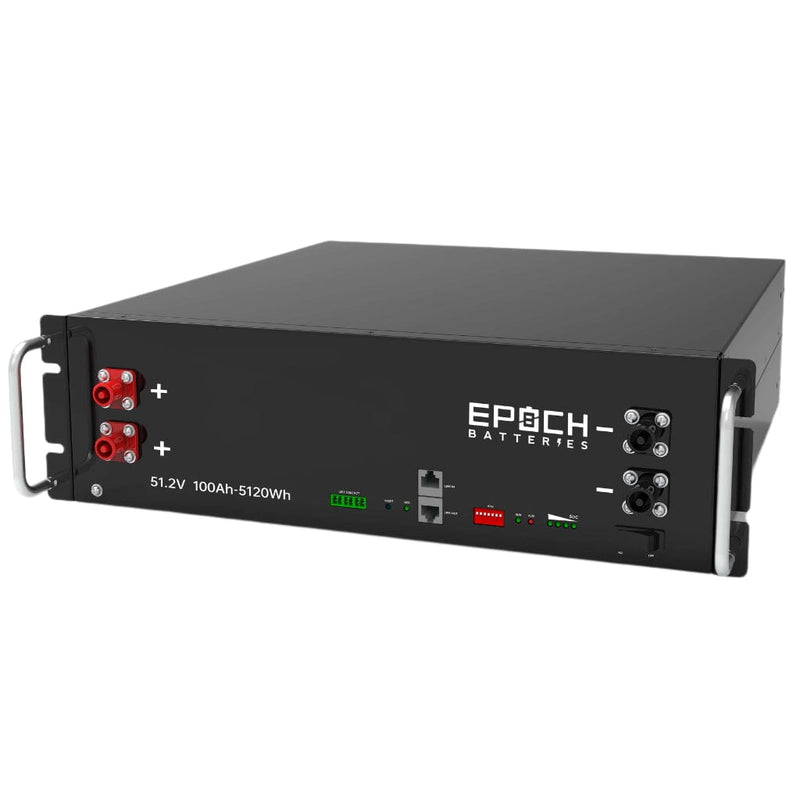

Epoch 48V 100Ah LiFePO4 Server Rack Battery | 5.12kWh | 6000 Cycles | IP20 Rating | Internal Heating
The Epoch 48V 100Ah Server Rack Battery is a powerhouse designed for home energy storage, server rooms, and renewable energy applications. With a massive 5.12kWh capacity, over 6000 cycles, and internal heating for cold-weather performance, it offers reliable energy for demanding setups. Built for 48V systems and engineered with LiFePO4 chemistry, this battery ensures long-term durability, safety, and consistent output, even in low-temperature environments.
Epoch 48V 100Ah LiFePO4 Server Rack Battery Features
High Capacity – 5.12kWh energy storage
Delivers long runtimes, ideal for solar backup, off-grid setups, or critical equipment.
Long Cycle Life – Up to 6000 cycles
Reliable power for years with high-quality LiFePO4 cells rated for deep cycling.
Built-in Heating – Cold weather ready
Integrated internal heating ensures safe and efficient charging in sub-zero conditions.
IP20 Rated Enclosure – Rack-mountable and safe
Sturdy case with IP20 rating fits standard server racks, perfect for indoor energy systems.
Advanced BMS – Intelligent protection system
Built-in Battery Management System (BMS) guards against overcharging, deep discharge, and thermal fluctuations.
Epoch 48V 100Ah LiFePO4 Server Rack Battery Applications
Home energy storage – Excellent for pairing with solar inverters for whole-home backup.
Server and data centers – Provides steady, clean power for sensitive electronic infrastructure.
Off-grid power systems – Suitable for cabins, mobile setups, and remote operations.
Battery backup systems – Works seamlessly with inverters to provide emergency power.
Cold-climate performance – Performs in freezing environments thanks to the built-in heater.
What’s Included?
- 1x Epoch 48V 100Ah LiFePO4 Server Rack Battery
Warranty
11-Year Manufacturer Warranty
Epoch 48V 100Ah LiFePO4 Server Rack Battery Specifications
| Weight (lbs) | 101 |
| Length | 17.4' |
| Width | 18.1' |
| Height | 5.2' |
| Voltage | 51.2V |
| Chemistry | LiFePO4 |
| Charging Voltage Range | 51.2V - 56.0V |
| Max Charge Voltage | 56.0V |
| Operating Voltage Range | 48V - 56V |
| kWh Capacity | 51.2kWh |
| Ah Capacity | 100Ah |
| Cell Configuration | 16S1P |
| Max Continuous Discharge Amps | 100A |
| Max Continuous Power (Watts) | 5120W |
| Max Discharge Peak Current Amps | 200A (15 Seconds) |
| Max Charge Current Amps | 70A |
| Charge Temp Range | -10°C (14°F) / 50°C (122°F) (with heating) |
| Discharge Temp Range | -20°C (-4°F) / 50°C (122°F) |
| Optimal Discharge Temp Range | 15°C (59°F) / 35°C (95°F) |
| Storage Temp | 0°C (32°F) / 35°C (95°F) |
| Safety Features | BMS (Battery Management System): Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature |
| Series | Parallel | Max 32 in Parallel, Plug & Play |
Frequently-Asked Questions
Is this battery compatible with my inverter?
Yes, it is compatible with most 48V inverters that support LiFePO4 chemistry and can communicate via CAN or RS485 (if required). Always confirm your inverter's specs for optimal results.
Can it be used in cold environments?
Yes, the built-in heating system enables safe charging and discharging even in sub-zero temperatures.
What’s the expected lifespan?
With over 6000 cycles at 80% depth of discharge, the battery is designed to last up to 10 years under normal usage.
