RICH SOLAR NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 6500W 48V Hybrid Inverter for Campers, Cabins, Tiny Homes, ADUs, RVs, Off-Grid | UL Certified
RICH SOLAR NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 6500W 48V Hybrid Inverter for Campers, Cabins, Tiny Homes, ADUs, RVs, Off-Grid | UL Certified

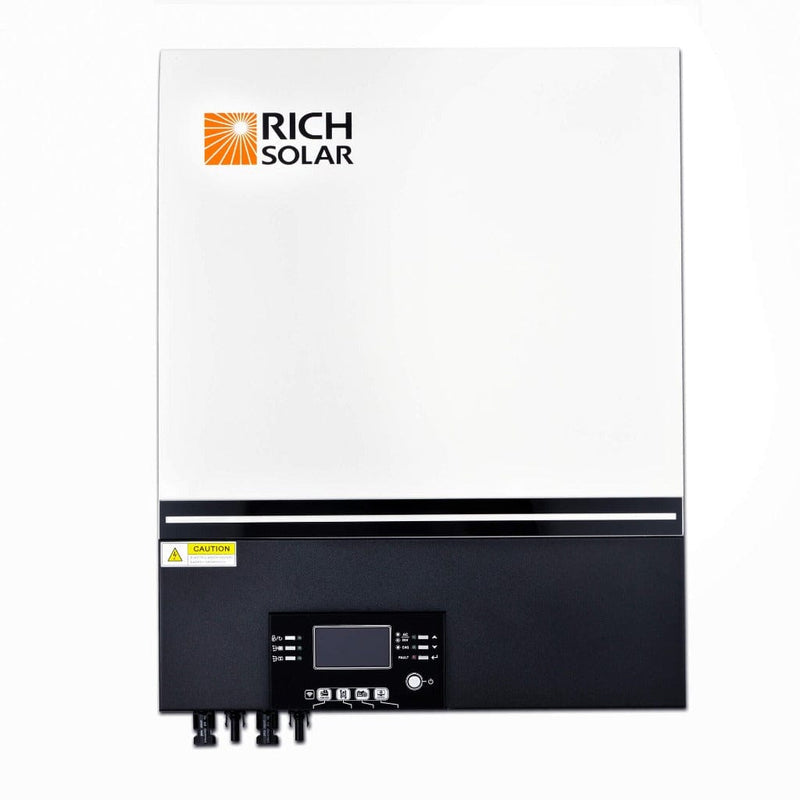

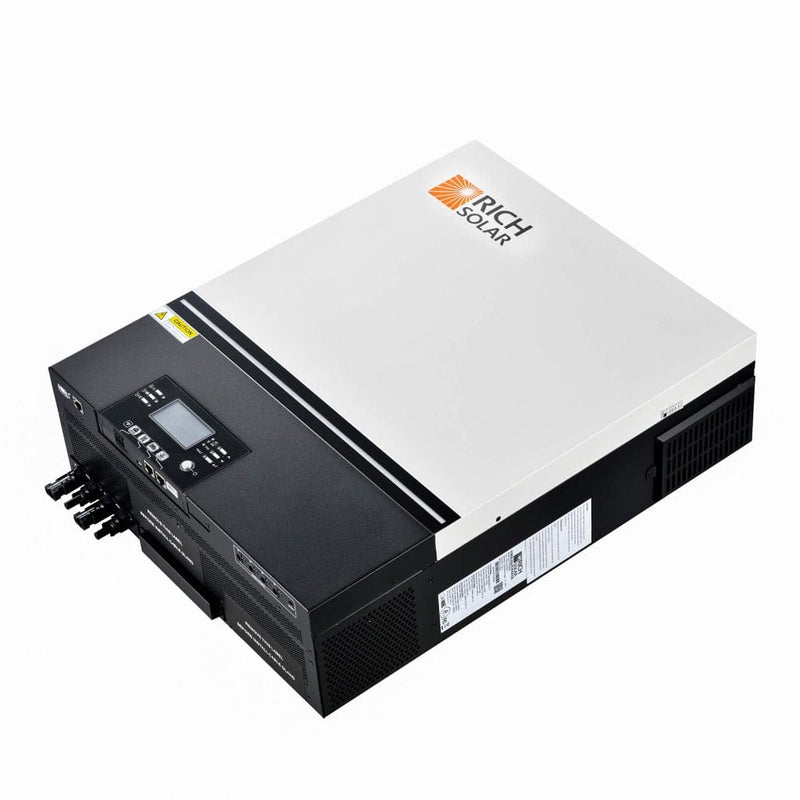

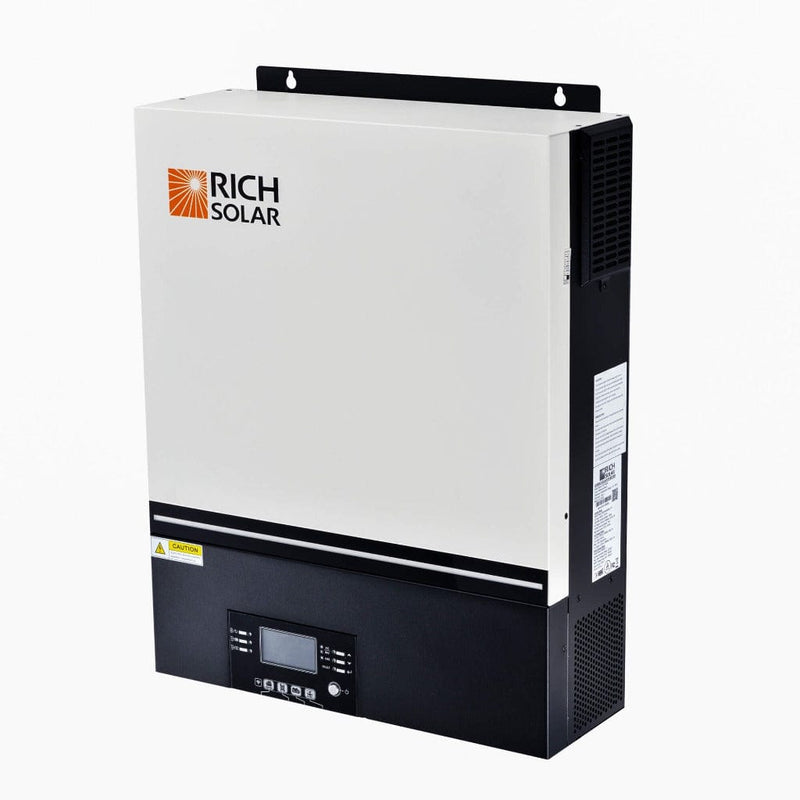

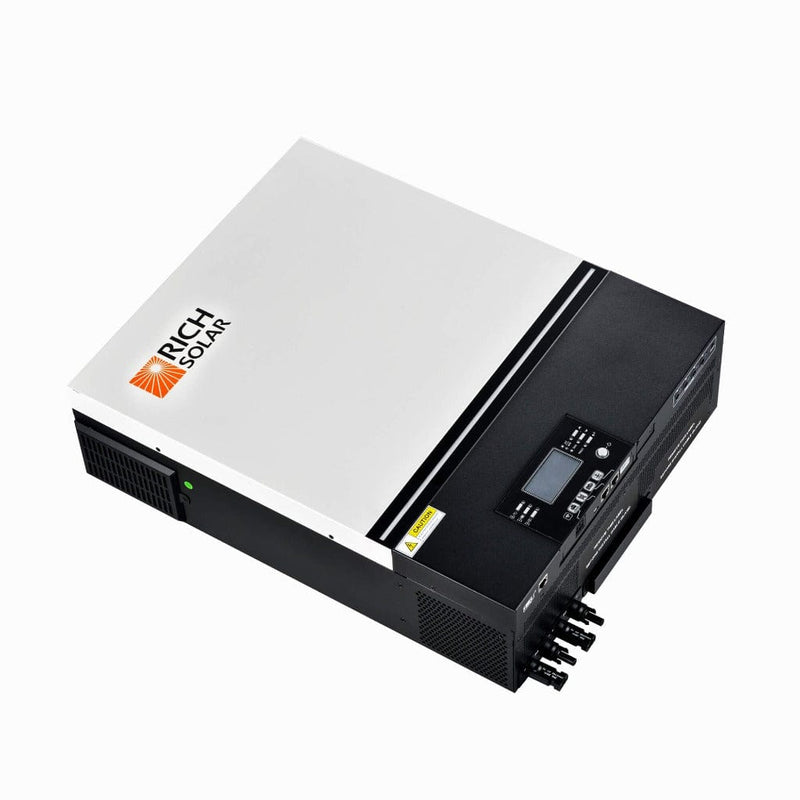

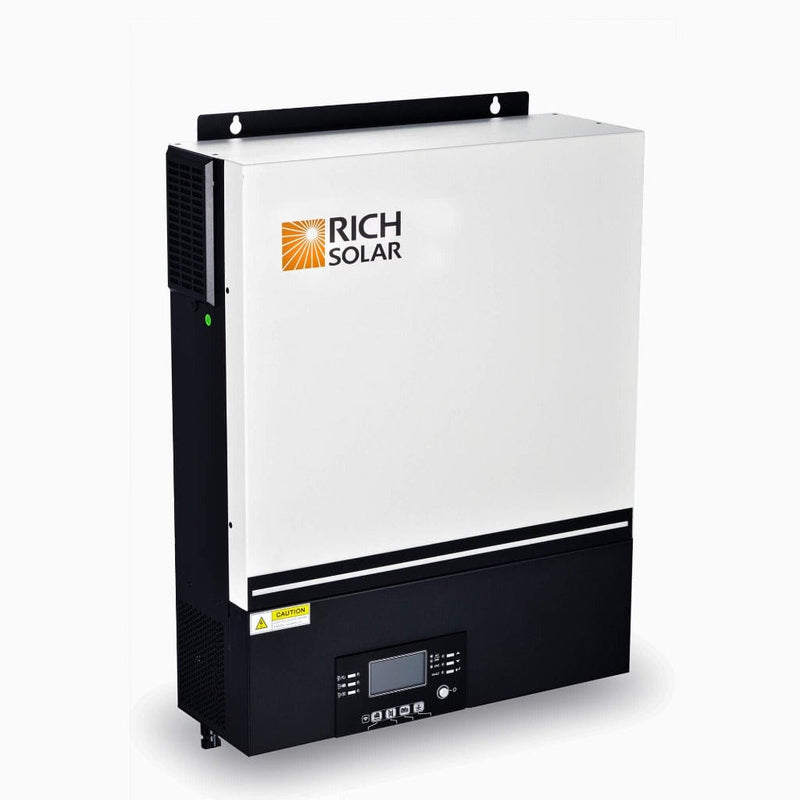

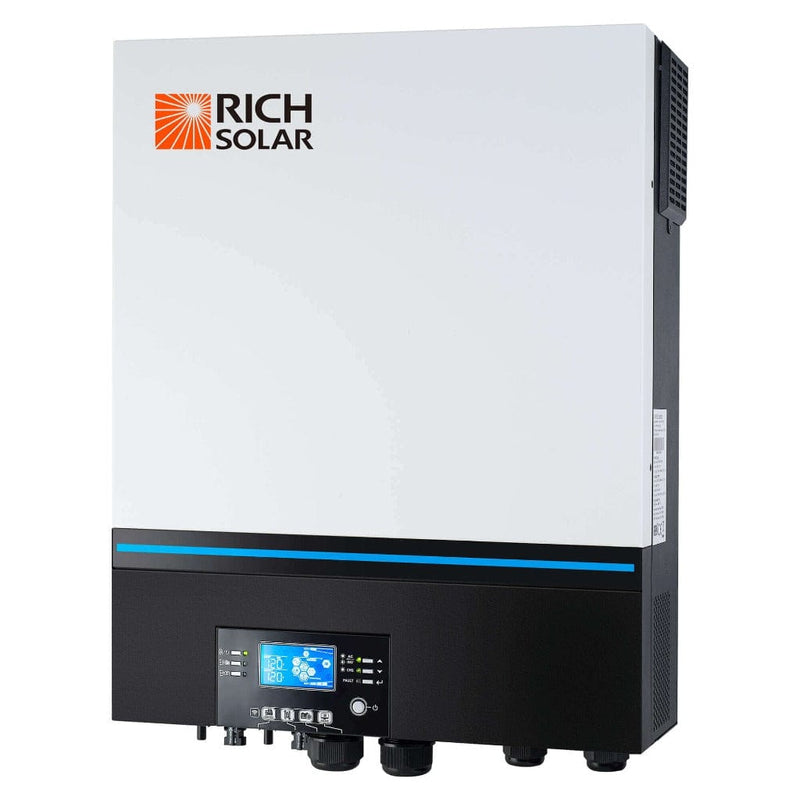

The RICH SOLAR NOVA 6548 is a premium off-grid hybrid inverter that delivers 6500W of reliable power for demanding energy applications. Designed with a 48V system and built-in MPPT solar charge controller, this inverter supports solar, battery, and generator sources—all in one intelligent unit. UL Certified for safety and optimized for RVs, cabins, tiny homes, and off-grid installations, the NOVA 6548 offers consistent power, advanced protections, and seamless operation in remote or backup settings.
RICH SOLAR NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter Features
High Power Output – 6500W Continuous
Provides 6500 watts of continuous AC output, making it ideal for powering multiple appliances, power tools, and essential systems.
Built-In MPPT Solar Charging – Up to 8000W PV Input
Includes a powerful 120A MPPT charge controller for optimized solar energy harvesting and faster battery charging.
48V Battery System Compatibility
Supports 48V lithium, AGM, gel, and flooded batteries, offering greater efficiency and flexibility for energy storage setups.
All-in-One Hybrid Design
Combines an inverter, solar charge controller, and battery charger in one compact unit—perfect for streamlined installations.
UL Certified for Compliance and Safety
Built to UL safety standards, ensuring top-tier protection and certification for off-grid and backup use.
Advanced Monitoring Interface
Equipped with a bright LCD display and accessible settings panel for easy system monitoring and configuration.
RICH SOLAR NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter Applications
- Off-Grid Cabins and Tiny Homes – Supports full household loads with reliable energy from solar and battery sources.
- RVs and Mobile Power Systems – Ideal for travel or mobile lifestyles where flexible, high-output power is needed.
- ADUs and Secondary Units – Powers accessory dwelling units with clean, independent energy supply.
- Remote Job Sites and Workshops – Delivers consistent power for construction tools, work lights, and charging stations.
- Solar Energy Storage Systems – Perfect as a core inverter for large 48V off-grid solar battery banks.
What's Included
Everything you need is included with your product.
- 1 x RICH SOLAR NOVA 6548 Hybrid Inverter (6.5kW, 48V)
- 1 x User Manual
RICH SOLAR NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter Specifications
| Category | Specifications |
| Model | RS-H6548 |
| Rated Inverter Power | 6500VA/6500W |

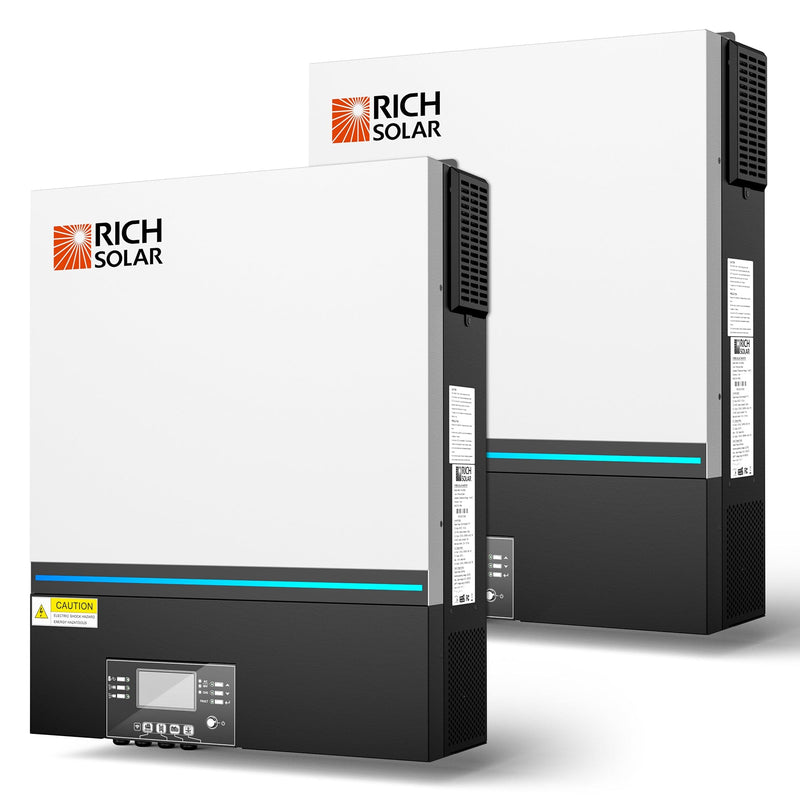

| Parallel Capability | Yes, 6 units |
INPUT
| Category | Specifications |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
OUTPUT
| Category | Specifications |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 15000VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <70W |
| Optional DC Voltage | 12 VDC ± 5%, 100W |
| Dual Outputs | Yes |
BATTERY
| Category | Specifications |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
SOLAR CHARGER & AC CHARGER
| Category | Specifications |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
PHYSICAL
| Category | Specifications |
| Dimensions (D X W X H) | 5.8 x 17.0 x 21.8 in |
| Net Weight | 40.6 lb |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
OPERATING ENVIRONMENT
| Category | Specifications |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -14°F to 122°F |
| Storage Temperature | 5°F to 140°F |
RICH SOLAR NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter Video
Frequently-Asked Questions
Is this inverter good for off-grid homes or cabins?
Yes. Its 6.5kW output and hybrid solar features make it ideal for powering off-grid dwellings and backup systems.
Can I connect this inverter directly to solar panels?
Yes. It has a built-in 120A MPPT charge controller that handles up to 8000W of solar input directly.
Does it work with lithium batteries?
Yes. It is compatible with LiFePO4, AGM, gel, and flooded lead-acid batteries.
Can I use this inverter with a generator?
Yes. The NOVA 6548 supports generator input for additional backup charging.
