RICH SOLAR 12V 400W Complete Solar Kit
The RICH SOLAR 12V 400W Complete Solar Kit is a high-performance off-grid solution for RVs, cabins, vans, or backup systems. With two 200W monocrystalline solar panels, a powerful MPPT charge controller, and all necessary mounting and wiring accessories, this kit provides reliable and efficient solar charging for 12V battery systems. Built for durability and long-term performance, it’s perfect for powering lights, appliances, and essential electronics wherever you go.
RICH SOLAR 12V 400W Complete Solar Kit Features
400W High-Efficiency Solar Output
Includes two premium monocrystalline panels—offers stable, efficient power even in low light.
Advanced 40A MPPT Charge Controller
Maximizes charging efficiency—harvests more energy from your panels with built-in protection.
Full Mounting & Wiring Kit
All-in-one package—includes Z brackets, solar cables, battery cables, and in-line fuses.
Expandable & Scalable
Add more power later—system supports future upgrades as your energy needs grow.
Easy Installation
DIY-ready—no complicated wiring required, ideal for RV and off-grid applications.
RICH SOLAR 12V 400W Complete Solar Kit Applications
- RV & Travel Trailer Power – Run lights, fans, refrigerators, and charge devices with ease.
- Off-Grid Cabins & Tiny Homes – Power your essential appliances in remote locations.
- Marine & Boating Power – Keeps batteries charged and systems running while off-dock.
- Overlanding & Vanlife – Stay powered on long trips with sustainable solar charging.
- Emergency Backup – Reliable energy source during blackouts or power disruptions.

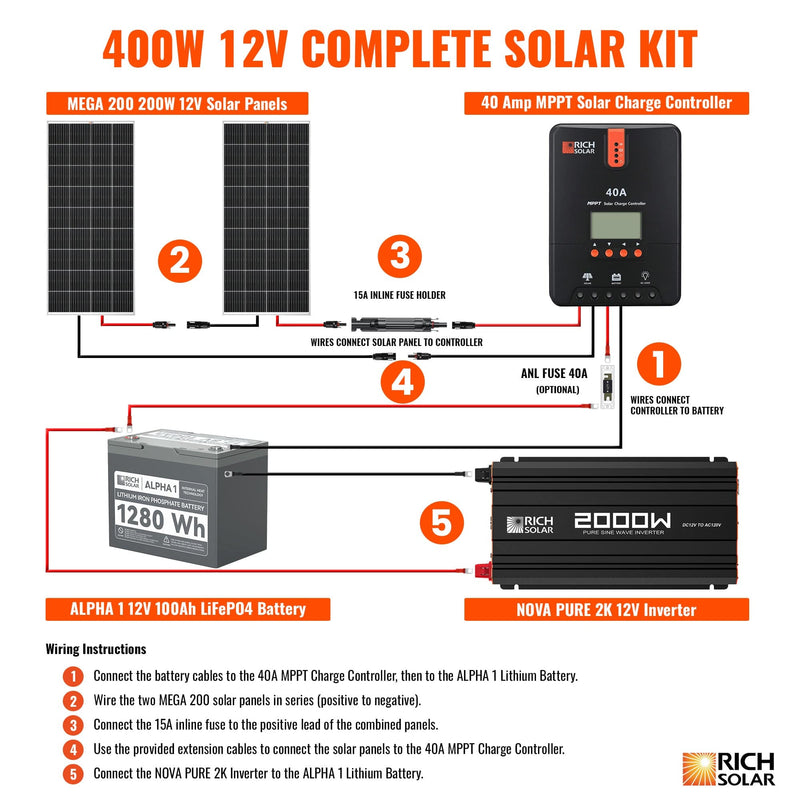

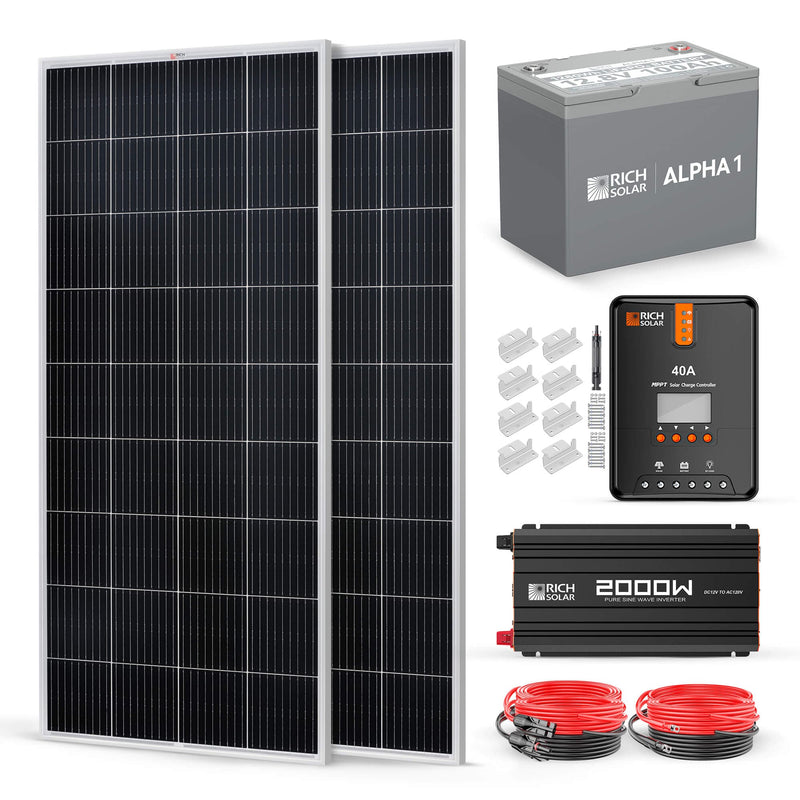

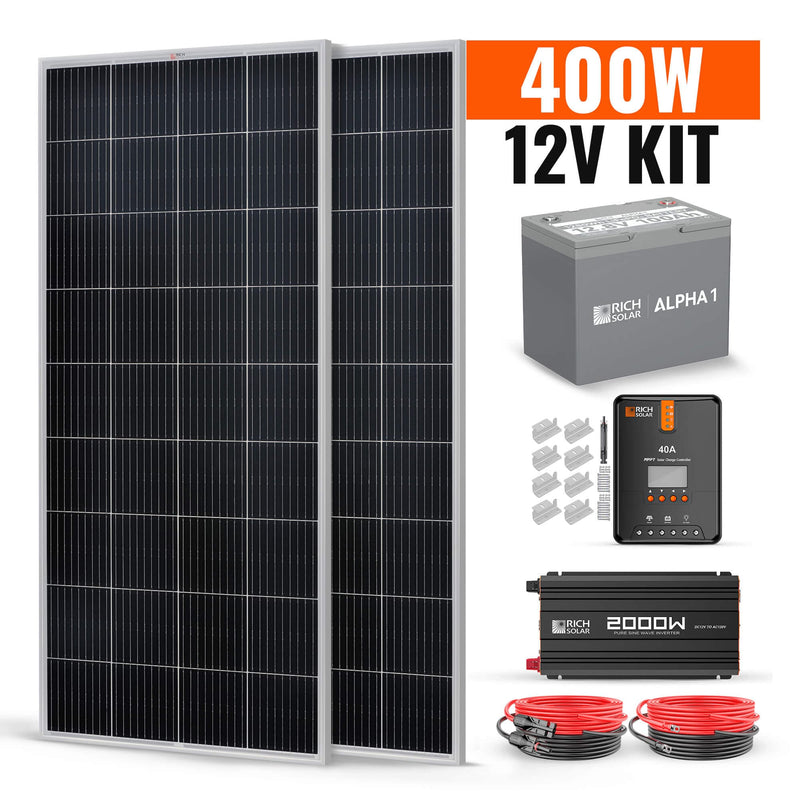

What's Included
Everything you need is included with your product.
- 2 x MEGA 200W 12V Panel (RS-M200)
- 1 x ALPHA 1 Lithium Battery (RS-B121S)
- 1 x NOVA 2000W 12V Inverter (RS-V2P12)
- 1 x 40A MPPT Charge Controller (RS-MPPT40P)
- 2 x Z Bracket Set (RS-ZB4C)
- 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
- 1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery) (RS-2/0A3F3)
- 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
- 1 x 10' 8 AWG Battery Cable Set (Controller to Battery) (RS-810)
RICH SOLAR 12V 400W Complete Solar Kit Specifications
MEGA 200 Watt Solar Panel
| Category | Specifications |
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Nominal Operating Cell Temp (NOCT) | 113 +/-35° F |
| Temperature Range | -40 ~ +185°F |
| Weight | 23.6 lbs |
| Dimensions | 58.7 x 26.8 x 1.2 in |
ALPHA 1 12V 100Ah LiFePO4 Battery
| Category | Specifications |
| Cell Type | LiFePO4 Battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 1280Wh |
| Cycle Life | 5000 cycles |
| BMS | 100A |
| Maximum Charging Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Maximum Discharge Current 10 Seconds | 110A |
| Charge Method | CC/CV |
| Charge Voltage | 14.4V ± 0.2V |
| Recommend Charge Current | 50A (0.2C) |
| Charge Temperature | 32℉ to 131℉ (0℃ to 55℃) |
| Discharge Temperature | -4℉ to 140℉ (-20℃ to 60℃) |
| Storage Temperature | 14℉ to 113℉ (-10℃ to 45℃) |
| External Power Draw | 100W |
| Internal Heating Starts | < 41℉ (5℃) |
| Internal Heating Stops | > 50℉ (10℃) |
| Net Battery Weight | 24.0lb |
| Size(L*W*H) | 10.2x6.6x8.3in (Group 24 size) |
| Housing Material | ABS (Flame Retardant Plastic) |
| Protection Class | IP65 |
| Warranty | 5 Years |
NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter
| Category | Specifications |
| Model | RS-V2P12 |
| Rated Voltage | 12V DC |
| Continuous Power | 2000W |
| Peak Surge | 4000W |
| Waveform | Pure Sine Wave |
| Input Voltage | 12V DC |
| Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Efficiency | 88% |
| AC Output Sockets | 3 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/Off Switch |
| Operating Temperature | 14°F to 122°F |
| Dimensions | 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm) |
| Weight | 10.1 (lb) / 4.6 (kg) |
40 Amp MPPT Solar Charge Controller
| Category | Specifications |
| Rated Battery Current | 40A |
| Rated Load Current | 20A |
| Max. PV Input Short Current | 50A |
| Max. Battery Voltage | 32V |
| Max Solar Input Voltage | 100VDC |
| Charge Circuit Voltage Drop | 0.26V |
| Discharge Circuit Voltage Drop | 0.15V |
| Working Temperature | -31°F to +113°F |
| Max Terminal Size | 8AWG |
| Rated Load Current | 10% to 90% NC |
| Overall Dimensions | 9.37 x 6.81 x 2.85 in |
| Net Weight | 4.41 lb |
Frequently-Asked Questions
How much power can this kit produce daily?
On average, this kit can produce 1.6–2.4kWh per day depending on sunlight and geographic location.
What type of batteries should I use with this kit?
It’s compatible with 12V AGM, Gel, Flooded, and LiFePO4 batteries.
Can I install this myself?
Yes. The kit is designed for DIY installation and comes with all necessary components.
Is the system safe to leave connected long-term?
Yes. The charge controller includes overcharge, short circuit, reverse polarity, and overload protection.
Can this run my AC or microwave?
This kit alone does not power AC appliances directly. Pair it with an inverter and battery bank to run AC devices.
