RICH SOLAR 1200 Watt 24V Complete Solar Kit
The RICH SOLAR 1200 Watt 24V Complete Solar Kit is a powerful and expandable off-grid energy system, ideal for medium to large RVs, cabins, tiny homes, or workshop setups. With six 200W monocrystalline panels, a 60A MPPT charge controller, and all required accessories, this kit is built to handle larger power needs while offering long-term durability and performance. Designed for serious off-grid applications, it gives you the freedom to run more appliances, tools, and electronics with clean, renewable energy.
RICH SOLAR 1200 Watt 24V Complete Solar Kit Features
1200W Solar Output from High-Efficiency Panels
Six monocrystalline solar panels—maximize power capture and energy conversion, even in low light.
60A MPPT Solar Charge Controller
Smart charging—boosts efficiency while protecting your battery system with advanced regulation.
Complete Mounting and Wiring Kit
Ready out of the box—includes all cables, fuses, mounting brackets, and connectors.
Built for Larger Loads
Ideal for full-time off-grid use—capable of running refrigerators, water pumps, lights, and more.
Expandable and Upgrade-Ready
Designed for future scaling—supports additional panels, batteries, or higher-capacity inverters.
RICH SOLAR 1200 Watt 24V Complete Solar Kit Applications
- Off-Grid Cabins or Small Homes – Power essentials like lighting, refrigeration, fans, and tools.
- RV and Travel Trailer Setups – Provides dependable energy for long-term living or travel.
- Emergency Backup Systems – Keep batteries charged and appliances running during outages.
- Workshops and Sheds – Power equipment, lighting, and outlets for remote or mobile projects.
- Marine and Boating Power – Sustain critical systems on larger boats or houseboats.

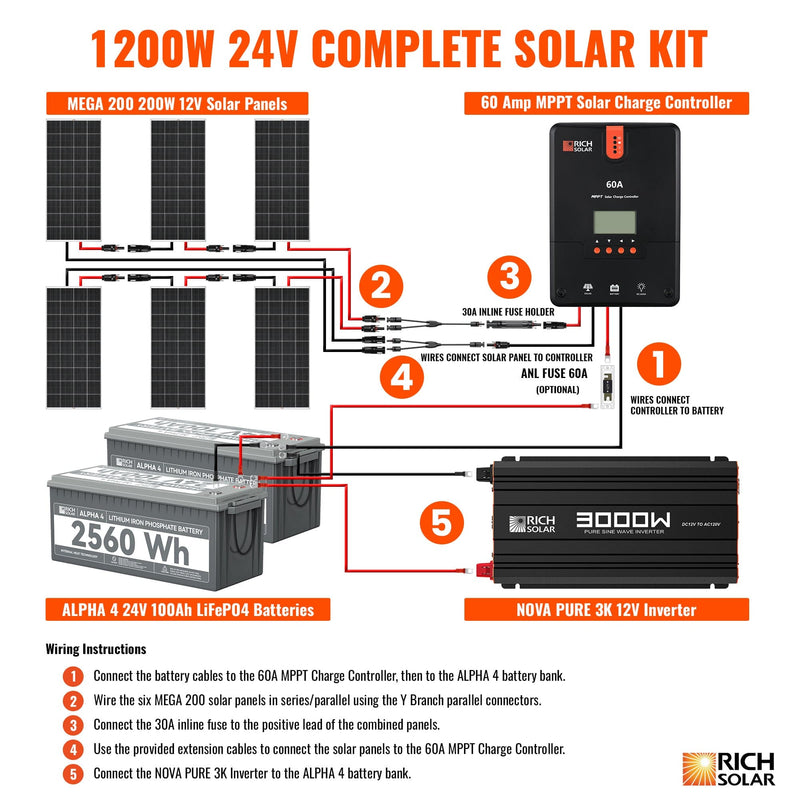

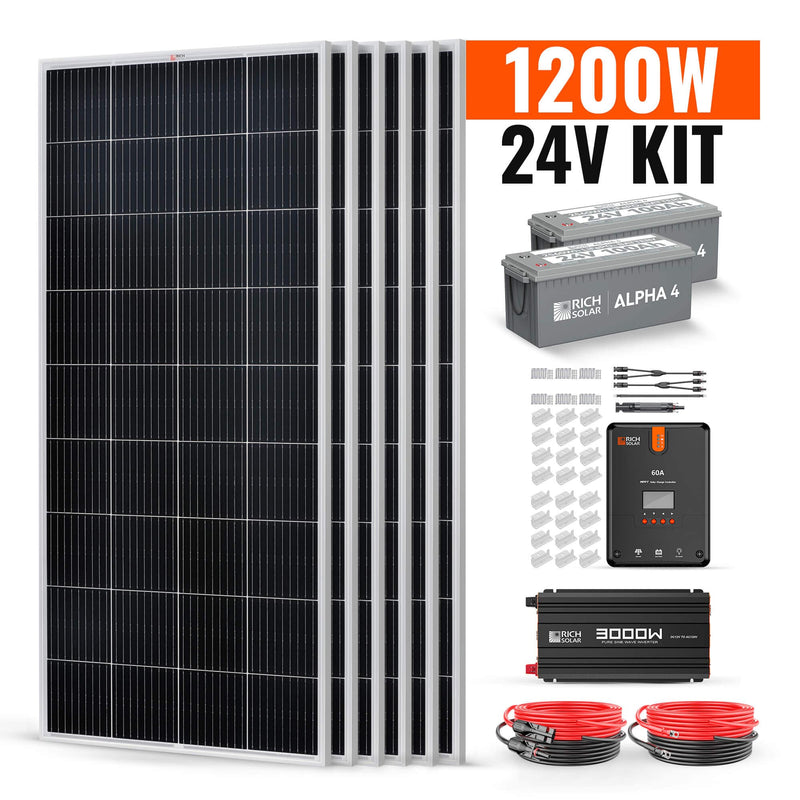

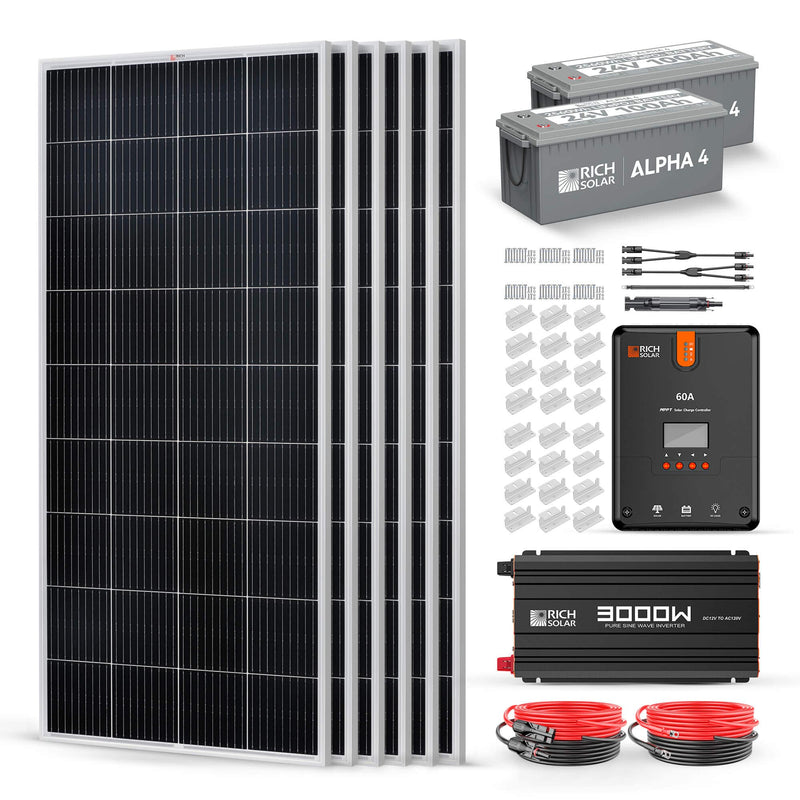

What's Included
Everything you need is included with your product.
- 6 x MEGA 200W 12V Panel (RS-M200)
- 2 x ALPHA 4 Lithium Battery (RS-B241S)
- 1 x NOVA 3000W 24V Inverter (RS-V3P24)
- 1 x 60A MPPT Charge Controller (RS-MPPT60)
- 6 x Z Bracket Set (RS-ZB4C)
- 1 x 30A Inline Fuse Holder (RS-SC30F)
- 1 x Y Branch Parallel Adapter (RS-Y2)
- 1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)
- 1 x 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
- 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
- 1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
- 1 x 4 AWG 8 FT Battery Cable Set (RS-C48B & RS-C248R)
RICH SOLAR 1200 Watt 24V Complete Solar Kit Specifications
MEGA 200 Watt Solar Panel
| Category | Specifications |
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Nominal Operating Cell Temp (NOCT) | 113 +/-35° F |
| Temperature Range | -40 ~ +185°F |
| Weight | 23.6 lbs |
| Dimensions | 58.7 x 26.8 x 1.2 in |
Alpha 4 24V 100Ah LiFePO4 Battery
| Category | Specifications |
| Cell Type | LiFePO4 Battery |
| Nominal Voltage | 25.6v |
| Nominal Capacity | 100ah |
| Nominal Energy | 2560wh |
| Cycle Life | 5000 cycles |
| Maximum Expansion (Parallel & Series) | 4p4s |
| Bms | 100A |
| Maximum Charging Current | 100A |
| Maximum Continuous Discharge Current | 110A |
| Charge Method | CC/CV |
| Charge Voltage | 14.4V ± 0.2V |
| Recommend Charge Current | 50A (0.2C) |
| Charge Temperature | 32℉ to 131℉ (0℃ to 55℃) |
| Discharge Temperature | -4℉ to 140℉ (-20℃ to 60℃) |
| Storage Temperature | 14℉ to 113℉ (-10℃ to 45℃) |
| External Power Draw | 100W |
| Internal Heating Starts | < 41℉ (5℃) |
| Internal Heating Stops | > 50℉ (10℃) |
| Net Battery Weight | 48.5lb |
| Size(L*w*h) | 20.9x8.1x8.5in (Group 31 Size) |
| Housing Material | ABS (Flame Retardant Plastic) |
| Protection Class | IP65 |
| Warranty | 5 Years |
| Certifications | Ul1973, Fcc, Un38.3, Etl |
NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter
| Category | Specifications |
| Model | RS-V3P24 |
| Rated Voltage | 24V DC |
| Continuous Power | 3000W |
| Peak Surge | 6000W |
| Waveform | Pure Sine Wave |
| Input Voltage | 24V DC |
| Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Efficiency | 88% |
| AC Output Sockets | 3 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/Off Switch |
| Operating Temperature | 14°F to 122°F |
| Dimensions | 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm) |
| Weight | 12.1 (lb) / 5.5 (kg) |
60 Amp MPPT Solar Charge Controller
| Category | Specifications |
| Rated Battery Current | 60A |
| Rated Load Current | 20A |
| Max Solar Input Voltage | 150V |
| Max Solar Input Power | 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Charge Circuit Voltage Drop | = 0.26V |
| Discharge Circuit Voltage Drop | = 0.15V |
| Operating Temperature | -31 °F to 113 °F |
| Max Terminal Size | 4AWG |
| Overall Dimensions | 11.2 x 8.1 x 4.0 in |
| Net Weight | 7.9 lb |
Frequently-Asked Questions
Is this kit good for a full-time off-grid home?
Yes. It’s ideal for small to mid-size off-grid homes or cabins running 24V battery systems.
Can this charge a 12V battery system?
This kit is designed for 24V systems. For 12V systems, a different configuration or step-down equipment would be needed.
Can I add more panels in the future?
Yes. The 60A MPPT controller supports additional input, and the system is built for expandability.
What batteries are compatible?
Works with AGM, Gel, Flooded, and LiFePO4 batteries—24V configuration recommended.
Do I need an inverter with this kit?
Yes, if you plan to run AC appliances. This kit powers your DC battery system; an inverter is required to convert DC to AC.
