RICH SOLAR 8000W 48V-120/240VAC Solar Kit
The RICH SOLAR 8000W 48V-120/240VAC Solar Kit is a powerful and efficient solution for large off-grid homes, workshops, and backup power systems. With dual voltage output, this complete kit can handle both standard 120V appliances and heavy-duty 240V equipment. It’s engineered for long-term reliability and supports high-capacity energy storage, making it ideal for serious energy independence or remote setups.
RICH SOLAR 8000W 48V-120/240VAC Solar Kit Features
Dual Voltage Output (120V/240V)
Supports both standard appliances and high-powered equipment like water pumps, AC units, and heavy-duty tools.
High Power Capacity
8000W system provides ample power for large households or off-grid applications needing constant and high-load energy.
All-in-One Inverter Charger
Simplifies setup with built-in inverter and charger for efficient energy conversion and system integration.
Expandable Battery Bank Compatibility
Supports additional battery storage to scale with your energy needs over time.
Durable and Reliable Components
All kit components are built for off-grid durability and tested for long-lasting performance in harsh environments.
RICH SOLAR 8000W 48V-120/240VAC Solar Kit Applications
- Large off-grid homes – Powers multiple rooms, kitchen appliances, lighting, and entertainment systems.
- Remote buildings or farms – Great for barns, well pumps, or machinery where grid access is not possible.
- Backup for outages – Acts as a whole-home backup system to keep lights and appliances running during emergencies.
- Mobile workstations – Supplies stable, split-phase power for tools and electronics in mobile setups.
- Energy independence – Ideal for users reducing dependence on the grid or transitioning to full off-grid living.

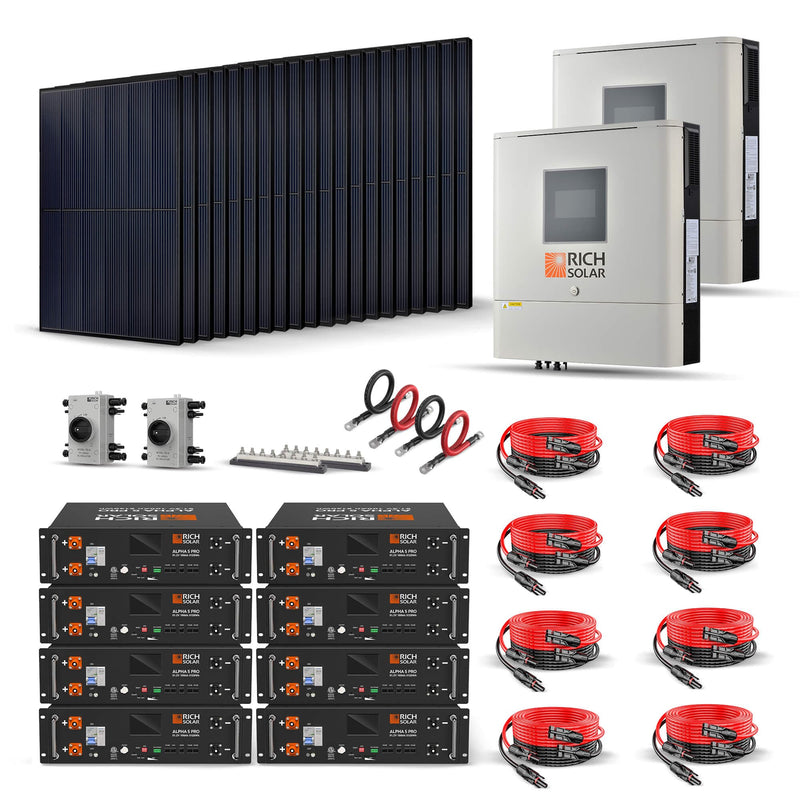

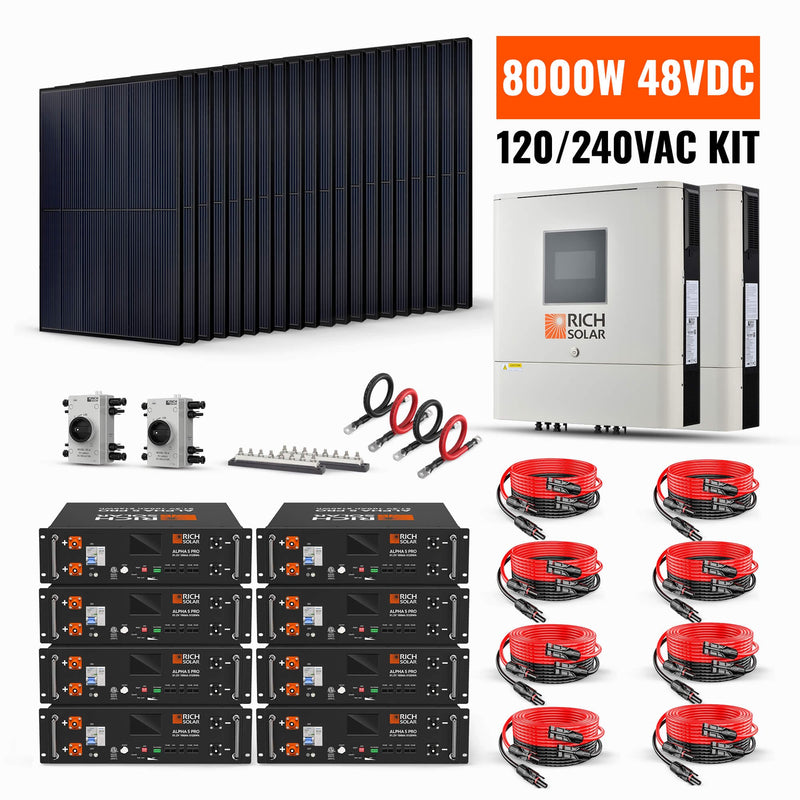

What's Included
Everything you need is included with your product.
- 2x 6500W 48V Off-grid Solar Inverter (H6548S)
- 20x MEGA 410W Solar Panel (RS-M410-10)
- 8x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter(RS-B5121P1)
- 2x Busbar 600 AMP
- 4x 10AWG 30FT Extension Cable (RS-30102)
- 4x 10AWG 10FT Extension Cable (RS-10102)
- 2x PV DC Quick Disconnect (RS-i4)
- 2x 4/0 AWG Battery Cables 5FT (RS-4/0A5F3)
RICH SOLAR 8000W 48V-120/240VAC Solar Kit Specifications
6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)
| Category | Specifications |
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 Units |
| Input Voltage | 120 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| Efficiency (Peak) | 90% ~ 93% |
| Waveform | Pure Sine Wave |
| Battery Voltage | 48 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Charge Current | 120A |
| Dimension (DxWxH) | 5.8 x 17.0 x 21.8 in |
| Net Weight | 40.6 lb |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
| Compliance Safety | UL |
| Warranty | 5 Years |
ALPHA 5 PRO 5.12kWh Server Rack Lithium Battery (RS-B5121P)
| Category | Specifications |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 99.5Ah |
| Nominal Capacity | 5120Wh |
| Continuous Charge Current | 100A |
| Continuous Discharge Current | 100A |
| Dimensions | 17.7″L x 17.8″W x 5.2″H |
| Battery Weight | 99.2 lb |
| Warranty | 10 Years Manufacturer Defect |
MEGA 410W Solar Panel (RS-M410-10)
| Category | Specifications |
| Maximum Power(Pmax) | 410W |
| Maximum Power Voltage(Vmp) | 31.3V |
| Maximum Power Current(Imp) | 13.1A |
| Open Circuit Voltage(Voc) | 37.5V |
| Short Circuit Current(Isc) | 13.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 25A |
| Weight | 45.2 lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
Frequently-Asked Questions
Can this power a whole house?
Yes, this kit is capable of running most or all household appliances, including air conditioners and refrigerators, depending on battery size and usage patterns.
Is the inverter included hybrid?
Yes, the system uses a hybrid inverter that manages power from solar panels and batteries while switching seamlessly to generator or grid backup.
Can I add more solar panels later?
Absolutely. The system is designed to be expandable and can support more panels as needed.
Do I need a professional to install it?
While this is a DIY-friendly kit, we recommend hiring a licensed electrician or solar installer for best results and safety compliance.
