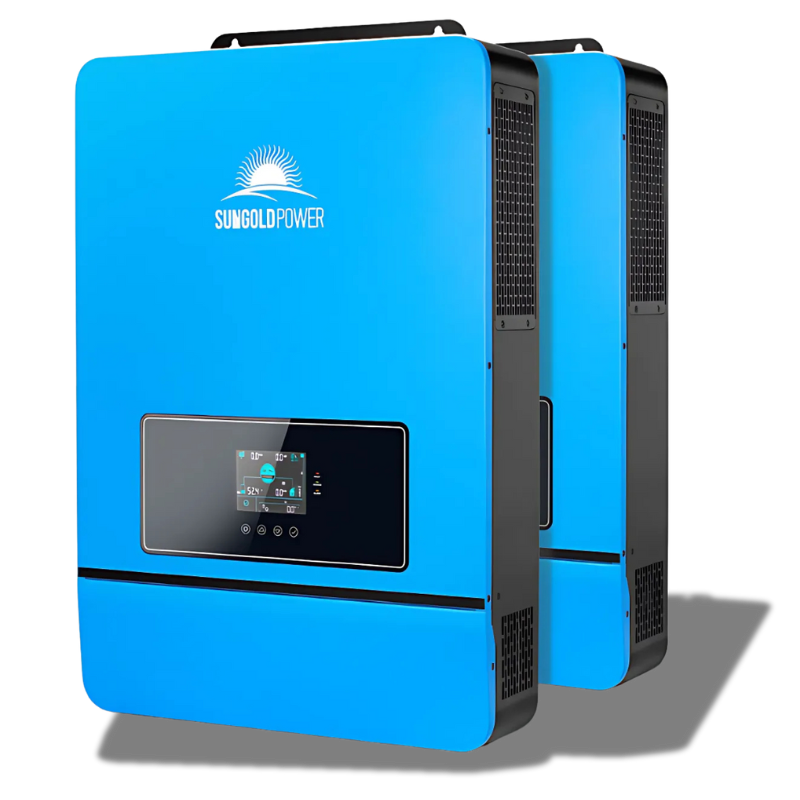

Sungold Power | 16KW 48V Split Phase Solar Inverter (2 Units Parallel)
Sungold Power | 16KW 48V Split Phase Solar Inverter (2 Units Parallel)
The Sungold Power 16KW 48V Split Phase Solar Inverter (2 Units Parallel) is a high-performance, scalable, and efficient off-grid power solution designed for residential, commercial, and industrial applications. This system integrates two 8KW inverters, offering a combined power output of 16KW while supporting single-phase, split-phase, and three-phase configurations. It is ideal for off-grid homes, businesses, and energy storage solutions, ensuring seamless power delivery and enhanced energy management.
Sungold Power 16KW 48V Split Phase Solar Inverter Features
High-Performance Power Output
- 16,000W total power output (2 x 8KW inverters) for high-demand applications.
- Split-phase (120V/240V) and three-phase (208V) capability for versatile power distribution.
- Pure Sine Wave output ensures compatibility with all appliances.
Advanced Solar MPPT Charging
- Built-in MPPT Solar Charge Controller for efficient solar power utilization.
- Max PV input of 10,000W (per unit: 5000W) enables high solar energy conversion.
- Dual MPPT technology (99.5% efficiency) optimizes power harvesting from solar panels.
Scalable Parallel Operation

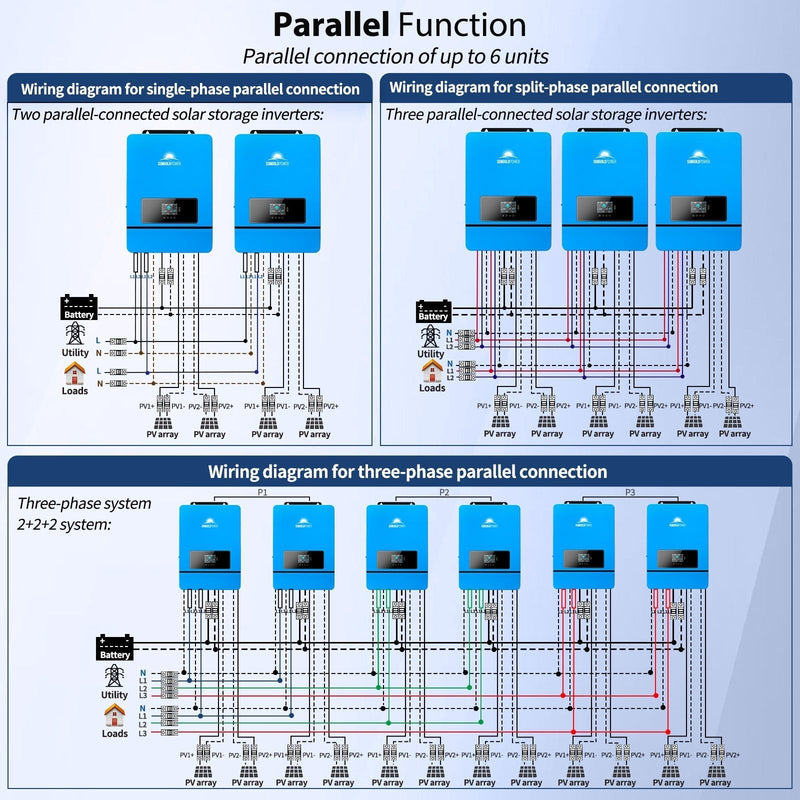

- Supports up to 6 units in parallel, allowing scalability up to 48KW.
- Built-in parallel kits enable seamless expansion without additional accessories.
- Suitable for off-grid, hybrid, and backup power systems.
Smart Monitoring & Connectivity
- WiFi Monitoring included for real-time system tracking via a mobile app.
- RS485, CAN, and USB communication ensure smooth integration with battery management systems (BMS).

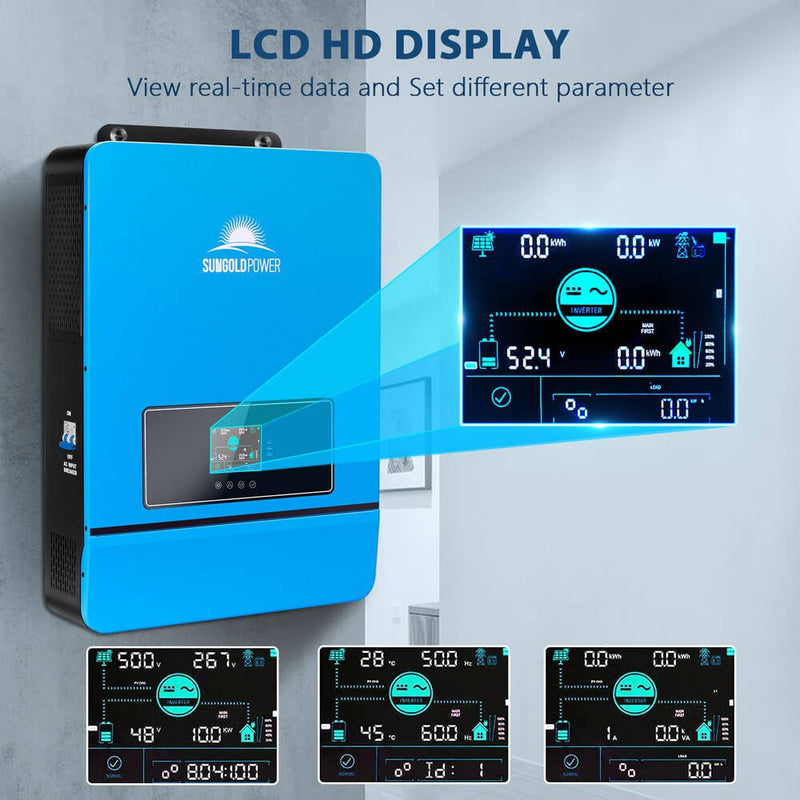

- User-friendly LCD display provides system diagnostics and live performance updates.
Comprehensive Protection & Reliability
- Uninterruptible Power Supply (UPS) Function, ensuring seamless power switching (<10ms reaction time).
- Overload, short circuit, and over-discharge protection for system longevity.
- Automatic Generator Start Function for extended off-grid use.
- Energy-saving mode reduces idle power consumption.
Sungold Power 16KW 48V Split Phase Solar Inverter Applications
- Residential Off-Grid Systems – Provides stable power for homes and remote properties.
- Commercial & Industrial Energy Solutions – Suitable for small businesses, farms, and industrial setups.
- Backup Power Systems – Keeps critical loads running during power outages.
- Solar Energy Storage Systems – Efficient integration with solar panels and battery banks.
- RV, Marine, and Mobile Power Solutions – Ideal for camper vans, boats, and mobile off-grid power.
What's Included
Everything you need is included with your product.
- 2 x Sungold Power 8KW 48V Split Phase Solar Inverters
- Parallel Communication Cables
- User Manual
- Accessory Kit
Sungold Power 16KW 48V Split Phase Solar Inverter Specifications
Inverter Output
| Specification | Details |
| Rated Output Power | 8,000W |
| Max. Peak Power | 16,000W |
| Rated Output Voltage | 120/240Vac (split phase/single phase) |
| Load Capacity of Motors | 5HP |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Switch Time | 10ms (Typical) |
| Parallel Capacity | 6 |
| Overload | After trigerring the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102% |
Battery
| Specification | Details |

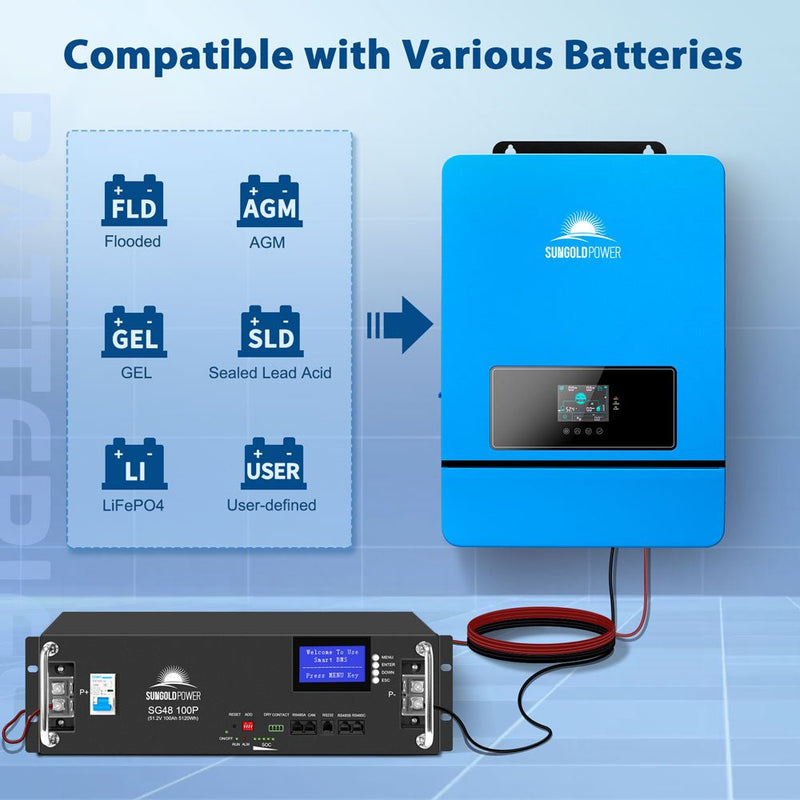

| Battery Type | Lithium-ion / Lead-Acid / User-Defined |
| Rated Battery Voltage | 48Vdc |
| Voltage Range | 40Vdc-60Vdc |
| Max.MPPT Charging Current | 200A |
| Max.Mains/Generator Charging Current | 100A |
| Max.Hybrid Charging Current | 180A |
PV Input
| Specification | Details |
| Num. of MPP Trackers | 2 |
| Max. PV array power | 11,000W |
| Max. Input Current | 22/22A |
| Max. Voltage of Open Circuit | 550Vdc |
| MPPT Voltage Range | 125-425Vdc |
Mains/Generator Input
| Specification | Details |
| Input Voltage Range | 90-140V (Single Phase) |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 63A |
Efficiency
| Specification | Details |
| MPPT Tracking Efficiency | 99.9% |
| Max. Battery Inverter Efficiency | 92% |
General
| Specification | Details |

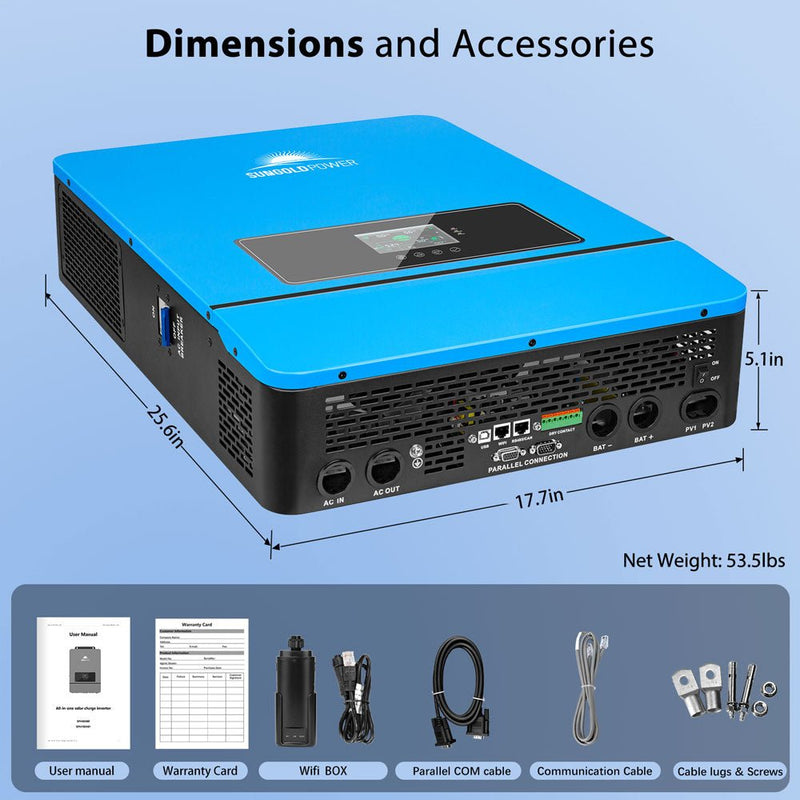

| Dimensions | 17.7*25.6*5. 1 inch |
| Weight | 53.5lb |
| Protection Degree | IP20, Indoor Only |
| Operating Temperature Range | 14~131°F, > 113°F derated (-10~55°C,>45°C derated) |
| Noise | <60dB |
| Cooling Method | Internal Fan |
| No-Load Consumption | 95W/100W |
| Warranty | 2 Years |
Communication
| Specification | Details |
| Embedded Interfaces | RS485 / CAN / USB / Dry Contact |
| External Modules (Optional) | Wi-Fi GPRS |
FAQs
Can this system power an entire home?
Yes, the 16KW inverter setup can power most household appliances, and additional units can be added for full-home coverage.
Does this system require batteries?
No, it can operate as a grid-tied inverter without batteries, but adding battery storage enhances reliability and backup power options.
How quickly does it switch to battery power during outages?
The UPS feature provides an automatic switch in <10ms, preventing power interruptions.
Is remote monitoring available?
Yes, the included WiFi module allows real-time monitoring and system management via a mobile app.
Can I expand this system in the future?
Yes, the Sungold Power 16KW supports parallel operation with up to 6 units, enabling a total system capacity of 48KW.
