Sungold Power | 20KW 48V Split Phase Solar Inverter (2 Units Parallel) (PRE-ORDER: ETA END OF JULY)

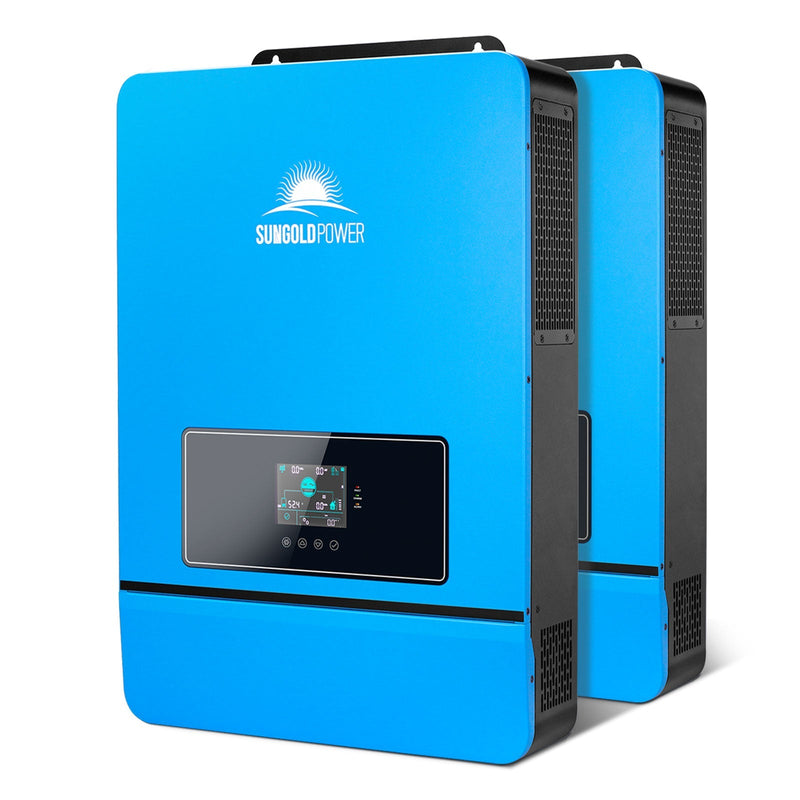

Sungold Power | 20KW 48V Split Phase Solar Inverter (2 Units Parallel)

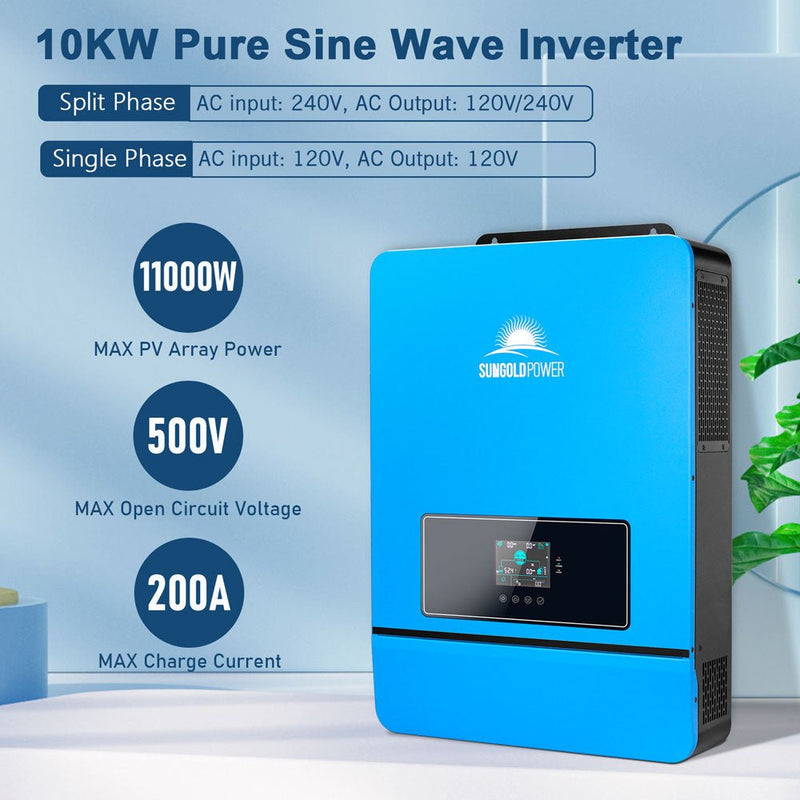

The Sungold Power 20KW 48V Split Phase Solar Inverter is a high-power, scalable, and efficient off-grid solution designed to support homes, businesses, and industrial applications. With two 10KW inverters connected in parallel, this system delivers 20,000W of reliable pure sine wave power, offering seamless integration with solar, battery, and grid inputs. Featuring advanced MPPT solar charging, intelligent monitoring, and multiple operating modes, this system provides uninterrupted power for various applications.
Sungold Power | 20KW 48V Split Phase Solar Inverter Features
High-Powered Performance
- 20KW Pure Sine Wave Output (10KW x 2), ensuring clean and stable power.
- 120V/240V Split Phase and 208V Three-Phase Compatibility, making it ideal for residential and commercial applications.
- Supports up to 6 parallel units, expanding total power output.
Advanced MPPT Solar Charging
- Built-in dual 2 x 200A MPPT Solar Charge Controllers for maximum solar energy efficiency.
- Supports up to 11,000W PV Input (550V DC Max Per Unit) for superior solar performance.
- Intelligent MPPT tracking technology ensures maximum power generation.

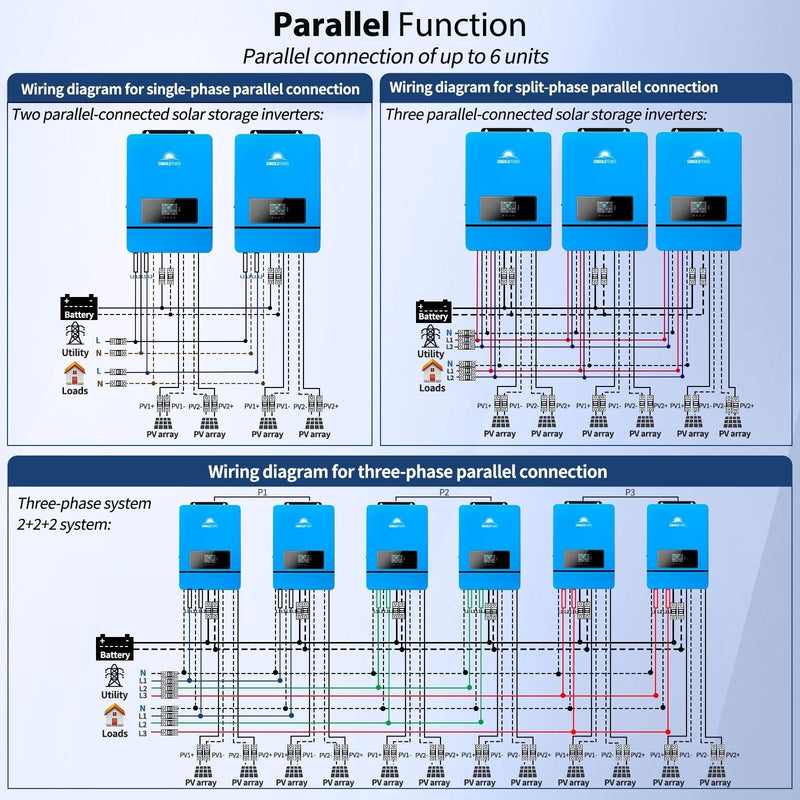

Seamless Parallel Operation
- Pre-configured for dual inverter parallel operation, delivering 20KW of continuous power.
- Supports single-phase, split-phase (120V/240V), and three-phase (208V) configurations.
- Scalability up to 60KW (with additional units).
Smart Energy Management & Monitoring
- WiFi Monitoring (Optional) for remote access via mobile app.

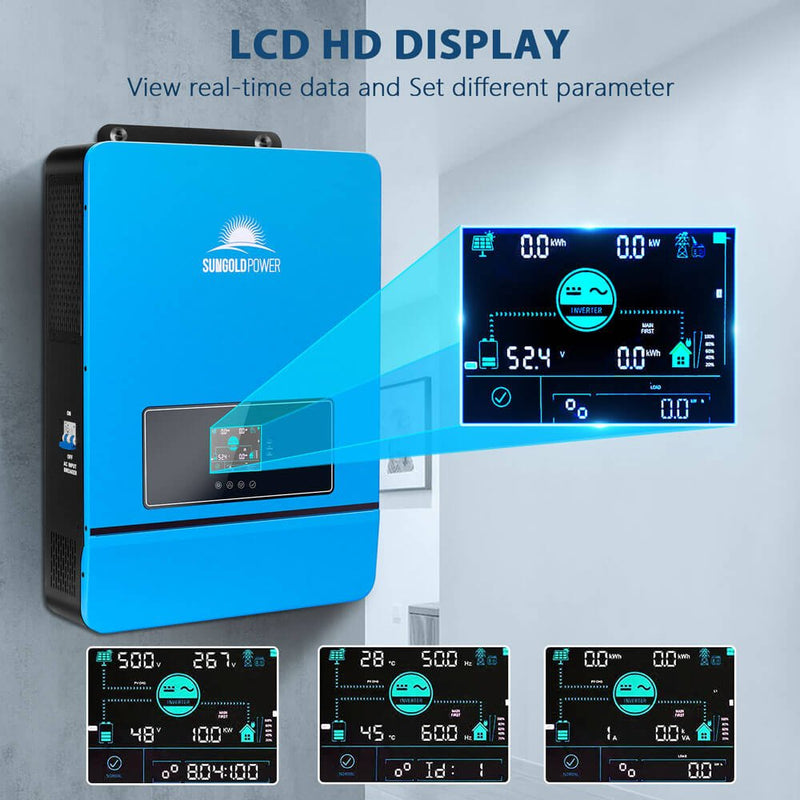

- Built-in LCD Display provides real-time system data and error diagnostics.
- RS485, CAN, and USB Communication for seamless integration with battery management systems (BMS).
Comprehensive Protection & Safety
- <10ms Automatic Transfer Switch (UPS Mode) for uninterrupted power switching.
- Overload, Overvoltage, Short Circuit, and Over-Temperature Protection.
- Auto-start generator feature for extended off-grid operation.
Time-Slot Charging & Energy Saving Modes

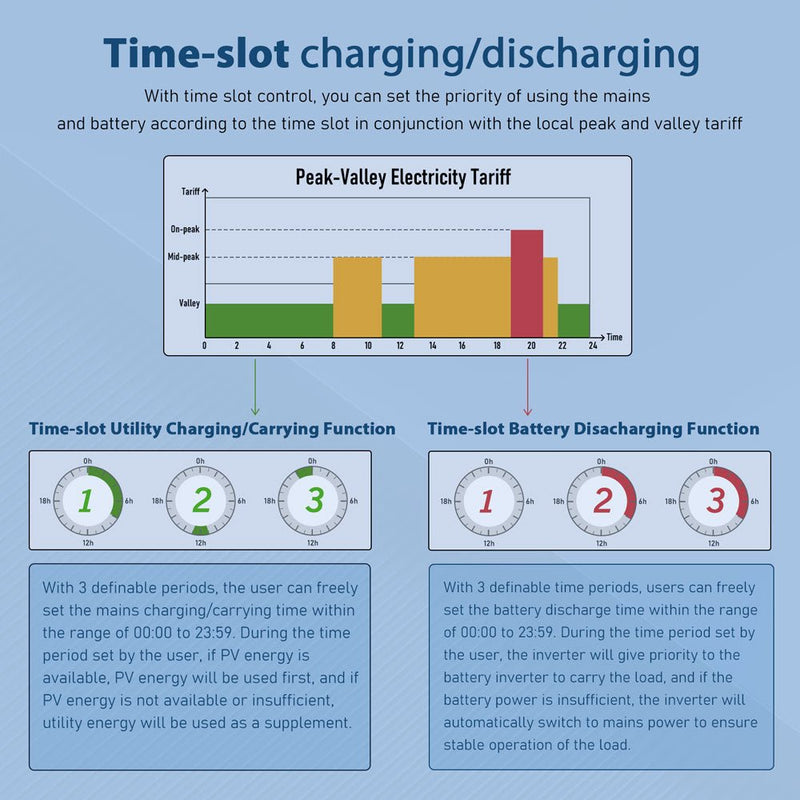

- Customizable charging/discharging schedules based on local peak and valley electricity tariffs.
- Power-saving mode reduces energy losses, maximizing system efficiency.
Sungold Power | 20KW 48V Split Phase Solar Inverter Applications
- Off-Grid Homes & Cabins – Provides complete energy independence with reliable power.
- Commercial Backup Power – Keeps critical business operations running during grid failures.
- Industrial & Agricultural Power – Supports farms, workshops, and heavy-duty equipment.
- Remote & Mobile Solar Systems – Ideal for large RVs, mobile homes, and off-grid facilities.
- Microgrid & Hybrid Systems – Works with solar, battery, and grid connections for maximum flexibility.

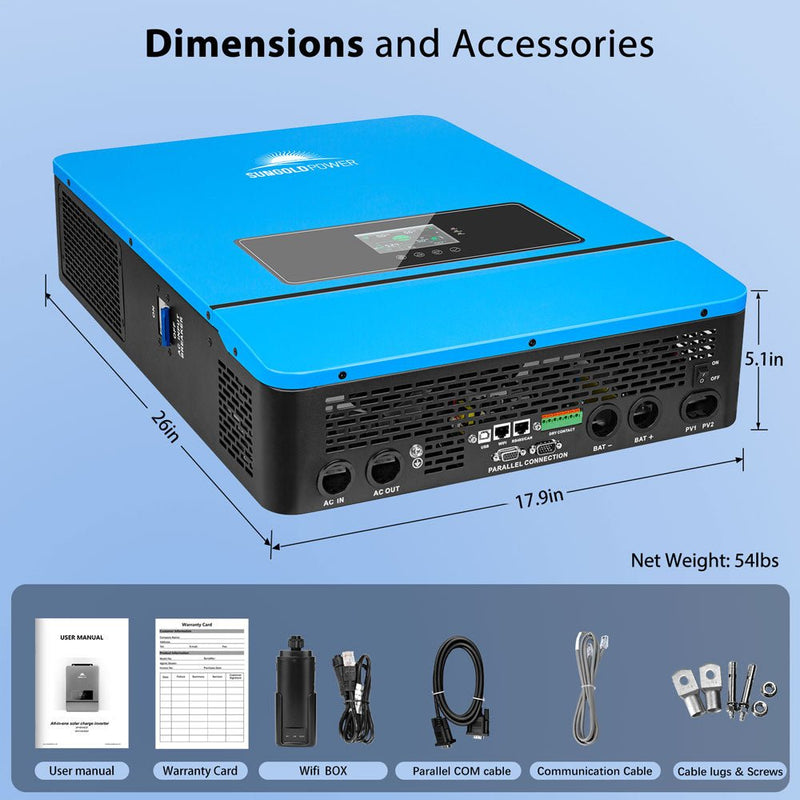

What's Included
Everything you need is included with your product.
- 2 x Sungold Power 10KW 48V Split Phase Solar Inverters (Pre-Wired for Parallel)
- Parallel Communication Cables
- User Manual
- Accessory Kit
Sungold Power | 20KW 48V Split Phase Solar Inverter Specifications
Inverter Output
| Specification | Details |
| Rated Output Power | 10,000W |
| Max. Peak Power | 20,000W |
| Rated Output Voltage | 120/240Vac (split phase/single phase) |
| Load Capacity of Motors | 6HP |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Switch Time | 10ms (Typical) |
| Parallel Capacity | 6 |
| Overload | After trigerring the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102% |
Battery
| Specification | Details |

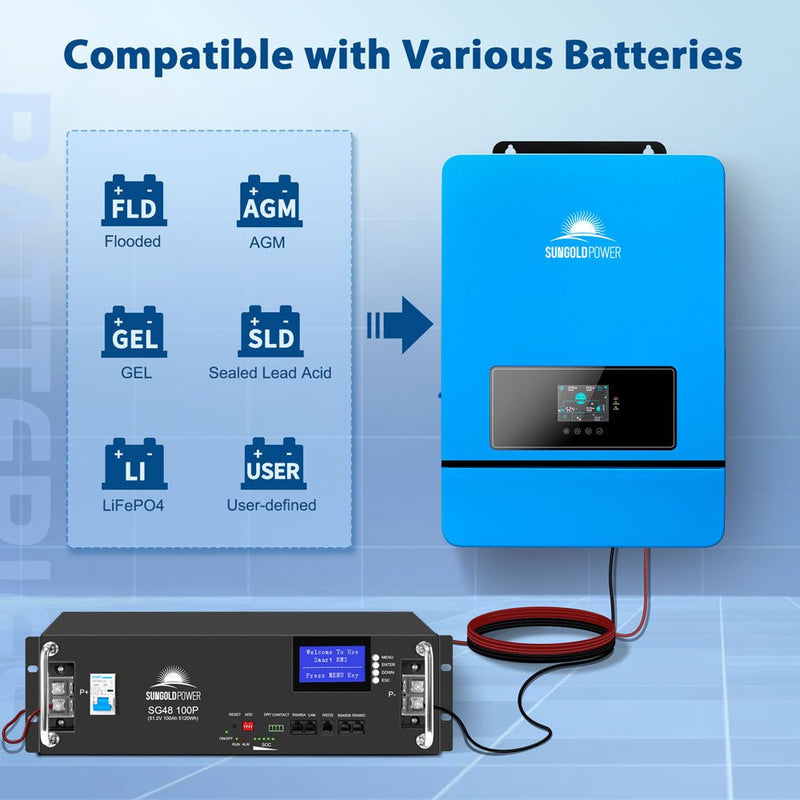

| Battery Type | Lithium-ion / Lead-Acid / User-Defined |
| Rated Battery Voltage | 48Vdc |
| Voltage Range | 40Vdc-60Vdc |
| Max.MPPT Charging Current | 200A |
| Max.Mains/Generator Charging Current | 120A |
| Max.Hybrid Charging Current | 200A |
PV Input
| Specification | Details |
| Num. of MPP Trackers | 2 |
| Max. PV array power | 11,000W |
| Max. Input Current | 22/22A |
| Max. Voltage of Open Circuit | 550Vdc |
| MPPT Voltage Range | 125-425Vdc |
Mains/Generator Input
| Specification | Details |
| Input Voltage Range | 90-140V (Single Phase) |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 63A |
Efficiency
| Specification | Details |
| MPPT Tracking Efficiency | 99.9% |
| Max. Battery Inverter Efficiency | 92% |
General
| Specification | Details |
| Dimensions | 17.9*26.5*5. 1 inch |
| Weight | 54lb |
| Protection Degree | IP20, Indoor Only |
| Operating Temperature Range | 14~131°F, > 113°F derated (-10~55°C,>45°C derated) |
| Noise | <60dB |
| Cooling Method | Internal Fan |
| No-Load Consumption | 95W/100W |
| Warranty | 2 Years |
Communication
| Specification | Details |
| Embedded Interfaces | RS485 / CAN / USB / Dry Contact |
| External Modules (Optional) | Wi-Fi GPRS |
FAQs
Can this inverter run an entire home?
Yes, with 20KW of continuous power, this system can support most household appliances and HVAC systems. It can also be expanded to 60KW for larger homes.
Does this inverter require batteries to operate?
No, it can function as a grid-tied or off-grid inverter. However, adding batteries improves energy storage and backup capabilities.
How quickly does the inverter switch during a power outage?
The UPS function switches to battery power in <10ms, ensuring uninterrupted power for critical loads.
Is remote monitoring available?
Yes, with the optional WiFi module, you can track system performance and manage settings via a mobile app.
Can I expand my system with additional inverters?
Yes, this system supports parallel operation up to 6 units, allowing scalability up to 60,000W.
