Sungold Power 3000W DC 12V Pure Sine Wave Inverter With Charger (Pre-Order: ETA Mid August)

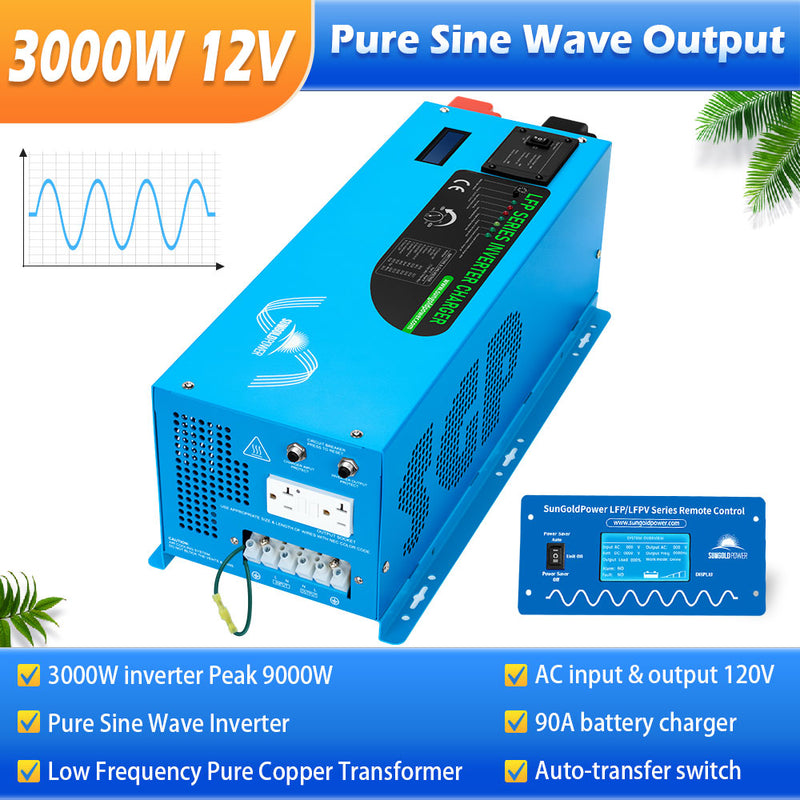

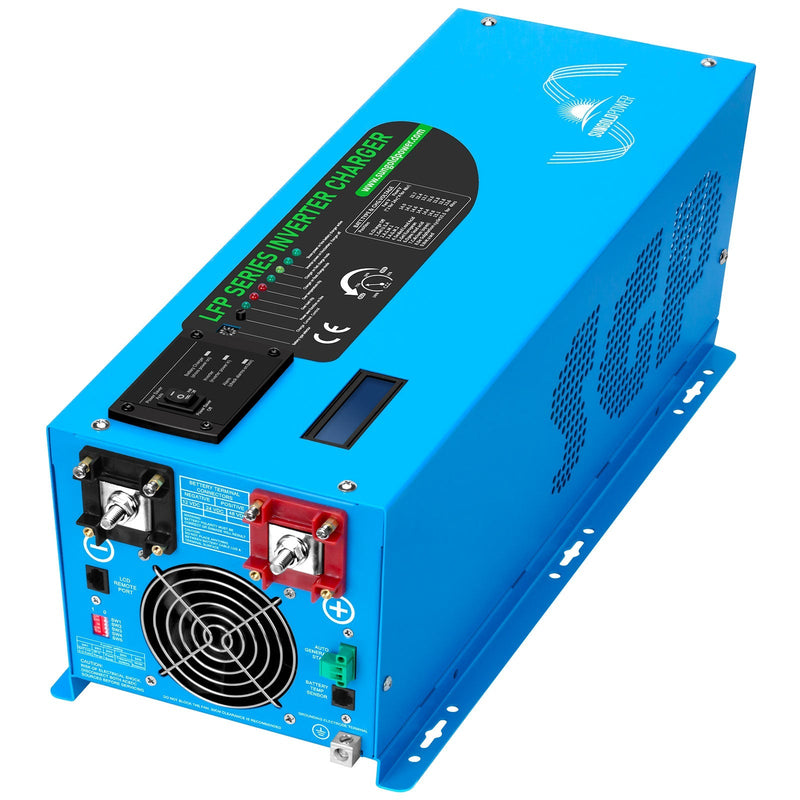

Sungold Power 3000W DC 12V Pure Sine Wave Inverter With Charger
The Sungold Power 3000W DC 12V Pure Sine Wave Inverter With Charger is a versatile and robust solution for converting 12V DC power to 120V AC power. This all-in-one unit integrates a 3000-watt pure sine wave inverter, a battery charger, and an AC auto-transfer switch, making it ideal for applications such as RVs, trailers, motorhomes, and off-grid backup systems. Designed with a low-frequency transformer, it ensures reliable performance and can handle a surge capacity of up to 9000W for 20 seconds, accommodating high startup loads. Its low idle current and compatibility with various battery types, including AGM and lithium-ion, make it a flexible and efficient choice for diverse power needs.
Sungold Power 3000W Inverter Charger Features
Integrated Inverter, Charger, and Transfer Switch
Combines a 3000-watt pure sine wave inverter, a battery charger, and an AC auto-transfer switch into a single, comprehensive system for seamless power management.
High Surge Capacity
Boasts a surge capacity of 9000W for 20 seconds, allowing it to support tools and equipment with high startup power demands.
Adjustable Charging Current
Features an adjustable charging current, allowing customization from 0% to 100% to suit different battery types and capacities.

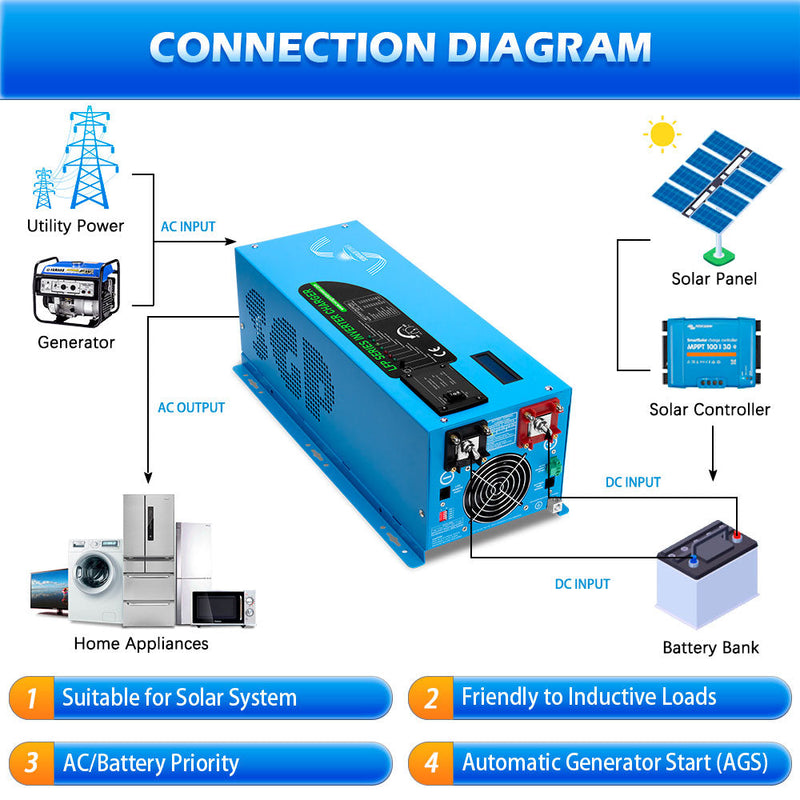

AC/Battery Priority Selector
Designed with AC priority by default; users can select battery priority via the SW5 switch, providing flexibility based on power needs.
Automatic Generator Start (AGS)
Equipped with AGS functionality, enabling the inverter to automatically start a connected generator when battery voltage is low and stop it once charging is complete.
Low Idle Consumption
Engineered for efficiency with low idle consumption, reducing energy waste when the inverter is not actively in use.
Remote Control and Battery Temperature Sensor (BTS)
Includes a remote control and BTS cable for enhanced monitoring and control.
Sungold Power 3000W Inverter Charger Applications

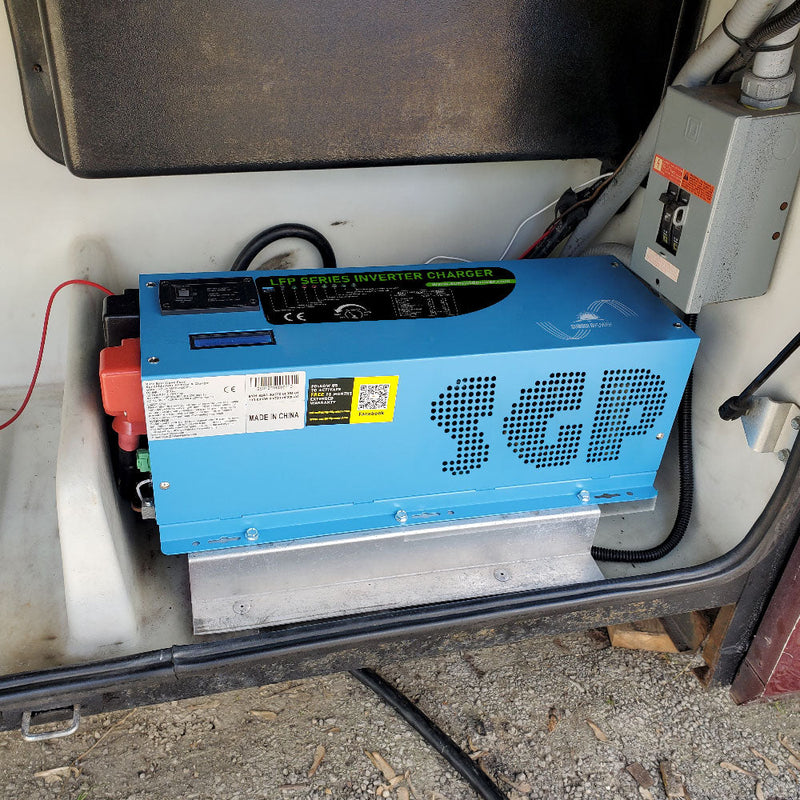

- Recreational Vehicles (RVs) – Provides reliable AC power for appliances and electronics while on the road.
- Trailers and Motorhomes – Ensures a steady power supply for comfort and convenience during travel.
- Off-Grid Backup Systems – Ideal for remote locations without access to the utility grid, supplying consistent energy.
- Emergency Power Supply – Acts as a dependable backup power source during outages.
What's Included
Everything you need is included with your product.
- Sungold Power 3000W 12V Low Frequency Pure Sine Inverter
- Remote Control and Cable
- BTS Cable
- User Manual
Sungold Power 3000W Inverter Charger Specifications
Inverter Output
| Specification | Details |
| Continuous Output Power | 3000W |
| Surge Rating | 9000W (20 Seconds) |
| Output | 120VAC |
| AC Input | 120VAC |
| Output Wave | Pure Sine Wave (bypass mode) |
| Typical Transfer Time | 10ms (MAX) |
| Nominal Efficiency | >88% |
DC Input
| Specification | Details |
| Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc-11.0Vdc |
| Low battery Trip | 10.0Vdc-10.5Vdc (select by SW1) |
| High Voltage Alarm | 16.0Vdc |
| Low battery Voltage Restart | 13Vdc |
| Idle Consumption | 55W |
| Power Saver Mode Idle Consumption | 20W |
AC Charger
| Specification | Details |
| Charger Rate | Max 90+/-5A |
| AC input Range (Grid or Generator) | 90V-135VAC/100V-135VAC (select by SW2) |
| Over Charge Protection Shutdown | 15.7V |
| Selectable Charge Setting based on battery type | off 0%-100% |
| 3-step intelligent battery charger | Yes |
Package Specification
| Specification | Details |
| Unit Weight | 49LB |

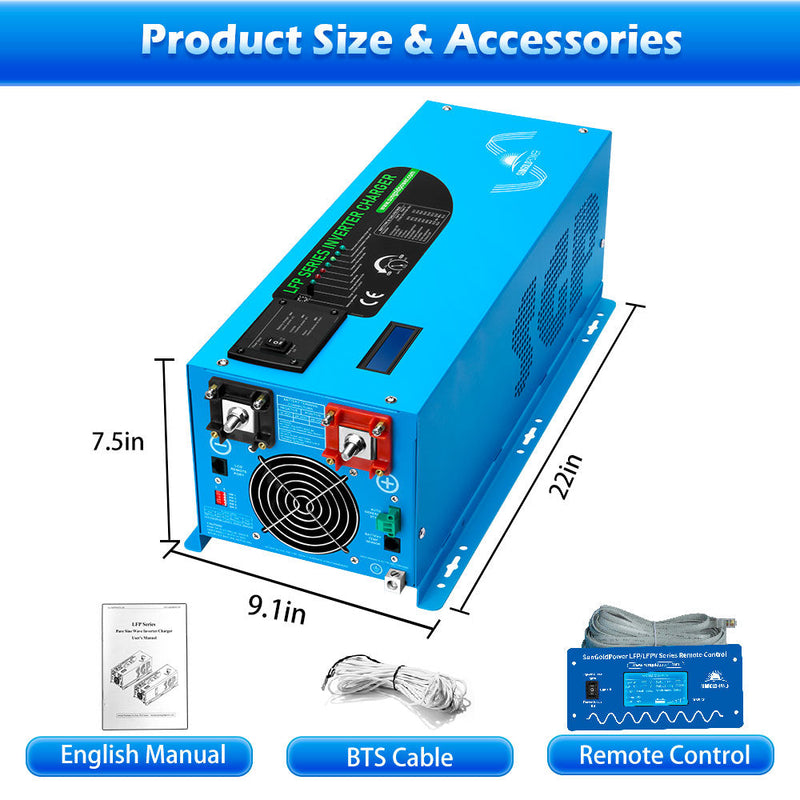

| Unit Size | 22.05 x 9.1 x 7.5 inch |
| Shipping Weight | 57.3LB |
| Shipping Size | 26.8 x 13.4 x 13 inch |
Sungold Power 3000W Inverter Charger Video
Frequently Asked Questions

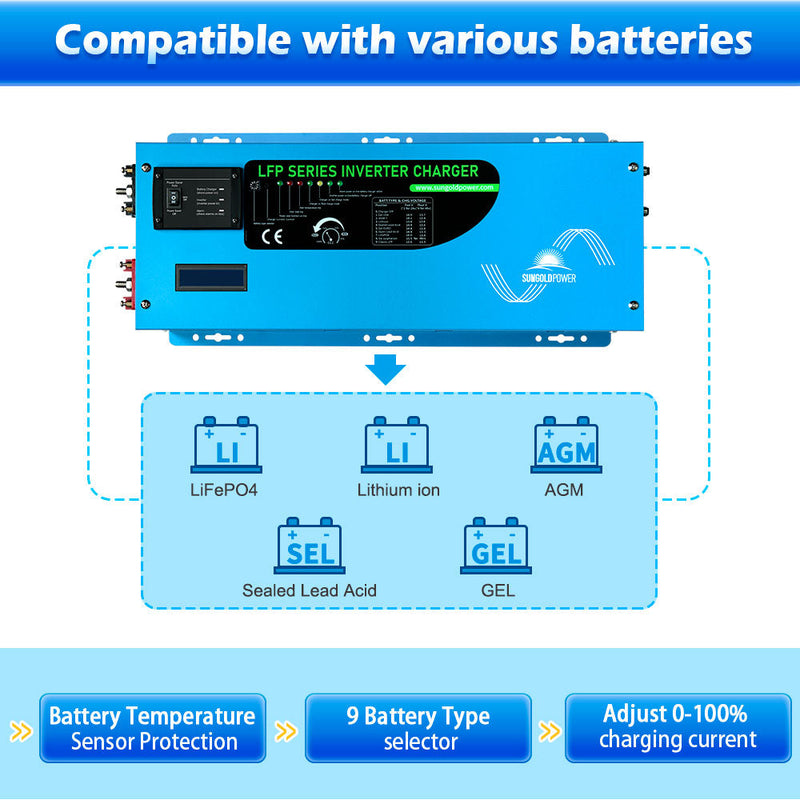

Is the inverter compatible with AGM batteries?
Yes, the inverter is compatible with AGM batteries, providing flexible battery options for users.
Can this charger/inverter be used with lithium-ion batteries?

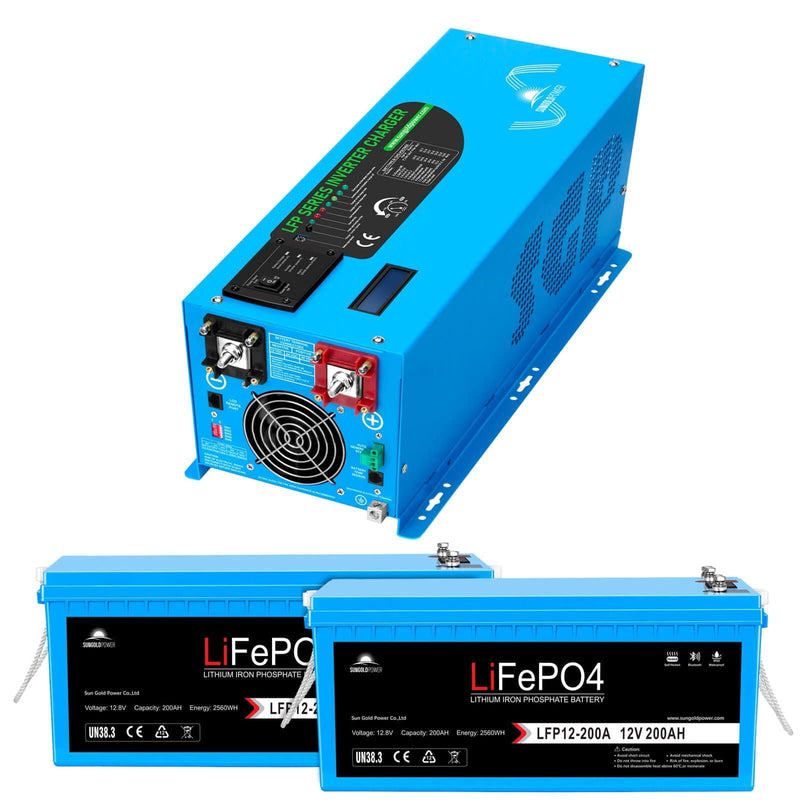

Yes, it can be used with lithium-ion batteries, ensuring versatility in battery selection.
What is the transfer switch capacity?
The transfer switch is rated at 30A for the 3000W inverter model.
What happens when using battery priority and the battery is drained?
When the battery voltage is low, the inverter will automatically switch to AC input for charging, ensuring continuous operation.
