Sungold Power 6000W DC 48V Split Phase Pure Sine Wave Inverter With Charger UL1741 Standard
Sungold Power 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger Overview
The Sungold Power 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger is a high-quality, low-frequency inverter designed to provide reliable power for a variety of applications, including small homes, businesses, RV systems, trailers, and boats. This versatile unit combines a 6000-watt pure sine wave inverter, a 90-amp battery charger, and an AC auto-transfer switch, making it an ideal solution for off-grid systems or emergency backup power. Capable of delivering both 120V and 240V AC output, it accommodates a wide range of appliances and equipment.

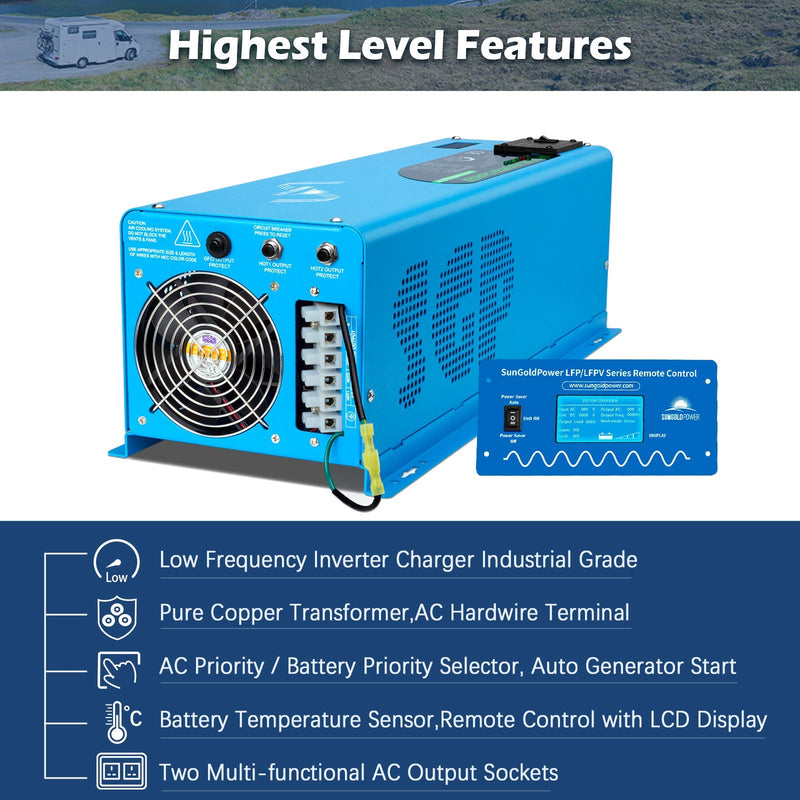

Sungold Power 6000W Inverter Charger Features
Integrated Inverter, Charger, and Transfer Switch
Combines a 6000-watt inverter, a 90-amp battery charger, and an AC auto-transfer switch into a single, comprehensive system for efficient power management.
Split Phase Output
Requires 240V AC input and provides both 120V and 240V AC output, suitable for various household and industrial appliances. The output frequency can be set to 50Hz or 60Hz via the SW4 switch.
Adjustable Charging Current
Features a powerful charge rate up to 90A, adjustable from 0% to 100%, allowing compatibility with different battery types and capacities.
Automatic Generator Start (AGS)
Equipped with AGS functionality, enabling the inverter to automatically start a connected generator when battery voltage is low and stop it once charging is complete.
AC/Battery Priority Selector
Designed with AC priority by default; users can select battery priority via the SW5 switch, providing flexibility based on power needs.
Smart Remote Control and Battery Temperature Sensor (BTS)
Includes a smart remote control and BTS cable for enhanced monitoring and control.
Sungold Power 6000W Inverter Charger Applications
- Residential Backup Systems – Provides reliable power during outages, ensuring continuous operation of household appliances.
- Off-Grid Power Solutions – Ideal for remote locations without access to the utility grid, supplying consistent energy.
- Commercial and Industrial Use – Supports heavy-duty equipment and machinery in various industrial applications.
- Renewable Energy Systems – Integrates seamlessly with solar or wind power setups for efficient energy utilization.
- Emergency Power Supply – Acts as a dependable backup power source in critical situations.

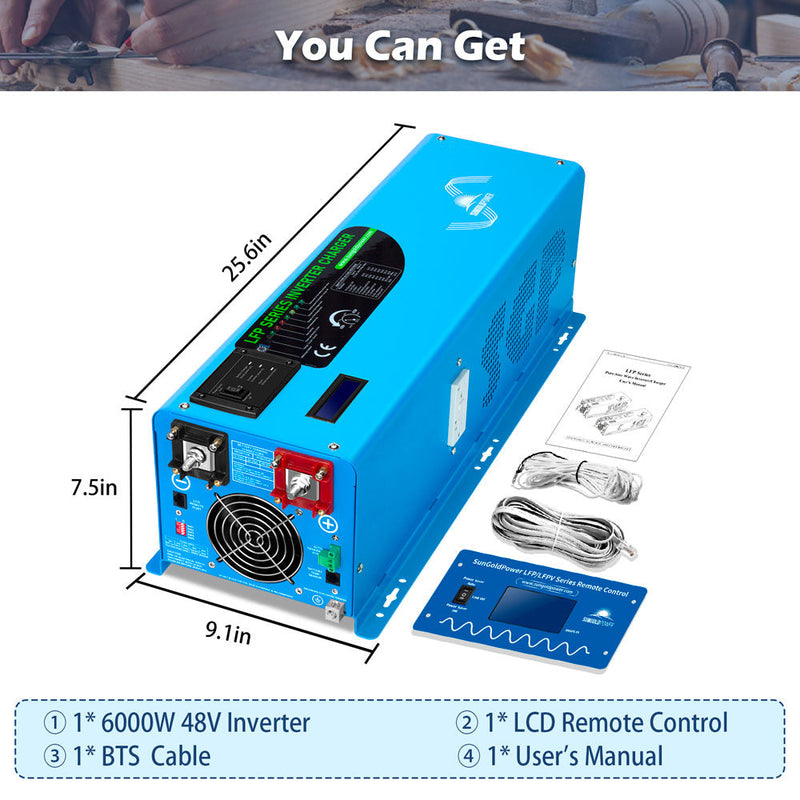

What's Included
Everything you need is included with your product.
- 1 x 6000W 48V Low Frequency Pure Sine Inverter
- 1 x Remote Control & Cable
- 1 x BTS Cable
- 1 x User's Manual
Sungold Power 6000W Inverter Charger Specifications
Inverter Output
| Specification | Details |
| Continuous Output Power | 6000W |
| Surge Rating | 18000W (20 Seconds) |
| Output | AC 120V and AC 240V |
| AC Input | 240V |
| Output Wave | Pure Sine Wave (bypass mode) |
| Typical Transfer Time | 10ms (MAX) |
| Nominal Efficiency | >88% |
DC Input
| Specification | Details |
| Nominal Input Voltage | 48.0Vdc |
| Minimum Start Voltage | 40.0Vdc |
| Low Battery Alarm | 42.0Vdc-44.0Vdc |
| Low battery Trip | 40.0Vdc-42.0Vdc (select by SW1) |
| High Voltage Alarm | 64.0Vdc |
| Low battery Voltage Restart | 52Vdc |
| Idle Consumption | 81W |
| Power Saver Mode Idle Consumption | 30W |
AC Charger
| Specification | Details |
| Charger Rate | 60+/-5A |
| AC input Range (Grid or Generator) | 140V-270VAC/184V-253VAC (select by SW2) |
| Over Charge Protection Shutdown | 62.8V |
| Adjustable charge current | off 0%-100% |

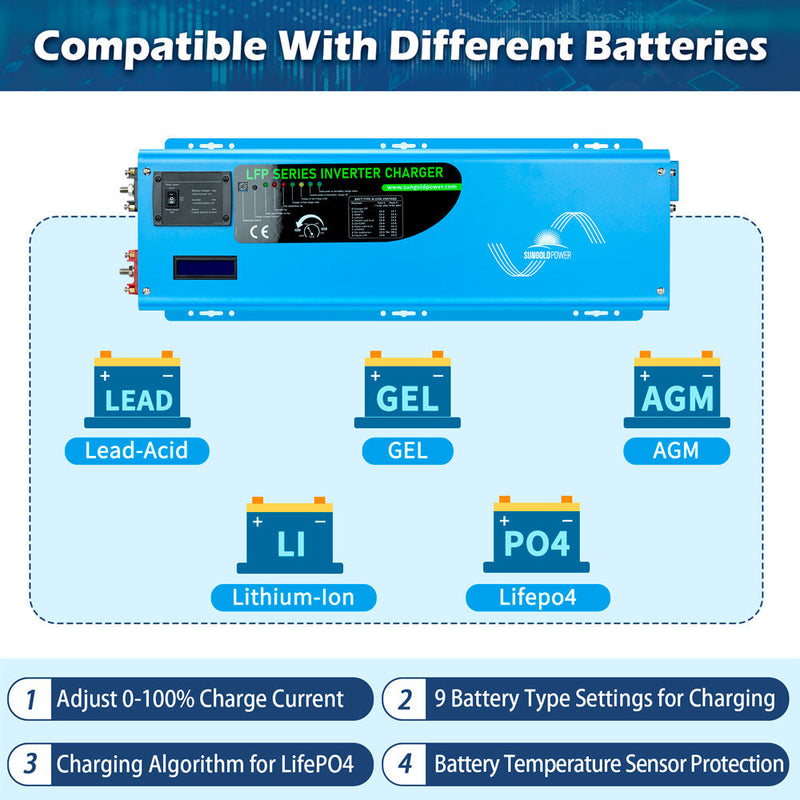

| Selectable Charge Setting based on battery type | |
| 3-step intelligent battery charger |
Package Specification
| Specification | Details |
| Unit Weight | 76.7LB |
| Unit Size | 25.6 x 9.1 x 7.5 inch |
| Shipping Weight | 85.5LB |
| Shipping Size | 30.3 x 13.4 x 12.8 inch |
Sungold Power 6000W Inverter Charger Video
Frequently Asked Questions
What does 240V AC split phase mean? Does it imply I can use it as 120V or 240V?
Yes, the split-phase inverter requires 240V AC input and can provide both 120V and 240V AC output power for various appliances. It is capable of producing two legs of 110V, making it suitable for home and business applications with a 220 panel in place.
Can the charging current be adjusted?
Yes, the maximum charge current can be adjusted from 0% to 100% via a linear switch, allowing customization based on battery requirements.
Is the inverter capable of automatically starting a generator?
Yes, it features Automatic Generator Start (AGS) functionality, enabling it to start a connected generator when battery voltage is low and stop it once charging is complete.
