SunGoldPower
Sungold Power Complete Off-Grid Solar Kit 12000W 48V 120V/240V output 10.24KWH Lithium Battery 5400 Watt Solar Panel
Sungold Power Off-Grid Solar Kit 12000W 48VDC 120V/240V LiFePO4 20.48KWH Lithium Battery 12 x 415 Watts Solar Panels
Power your off-grid lifestyle with confidence using the Sungold Power 12000W Off-Grid Solar Kit. Engineered for efficiency, performance, and independence, this complete solution delivers robust solar energy generation and long-lasting storage with premium components. Whether you’re powering a remote home, prepping for grid outages, or upgrading your off-grid setup, this system offers seamless integration, reliability, and clean power around the clock.
Sungold Power Off-Grid Solar Kit 12000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery 12 x 415 Watts Solar Panels Features
High-Efficiency 415W Monocrystalline Panels
These premium black PERC panels are designed to absorb more sunlight and deliver higher energy yields throughout the day.
Massive 20.48kWh LiFePO4 Battery Bank
This advanced lithium iron phosphate battery system provides extended storage life, rapid charging, and deep-cycle performance for reliable off-grid usage.
12000W Pure Sine Wave Inverter
Supports heavy loads and sensitive electronics with smooth, stable AC output. Perfect for running home appliances, pumps, tools, and backup systems.
48V System Architecture
Efficiently reduces current loss and improves performance over long distances, ideal for larger setups or extended cable runs.
Split-Phase Output for 120V/240V Loads
Fully supports both standard household circuits and higher-voltage appliances like dryers, pumps, and HVAC equipment in U.S. homes.
Sungold Power Off-Grid Solar Kit 12000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery 12 x 415 Watts Solar Panels Applications
- Remote off-grid homes and cabins – Reliable daily power for lights, appliances, water pumps, and more
- Backup for grid power outages – Peace of mind during blackouts and natural disasters
- Tiny homes or container homes – Compact and self-sufficient energy solution
- Agricultural or farm equipment – Powers irrigation systems, barn lighting, electric fences, etc.
- Solar-powered workshops or garages – Run tools, lights, and ventilation systems off-grid
- Mobile power systems for large RVs or trailers – On-the-go solar energy for adventure or remote work

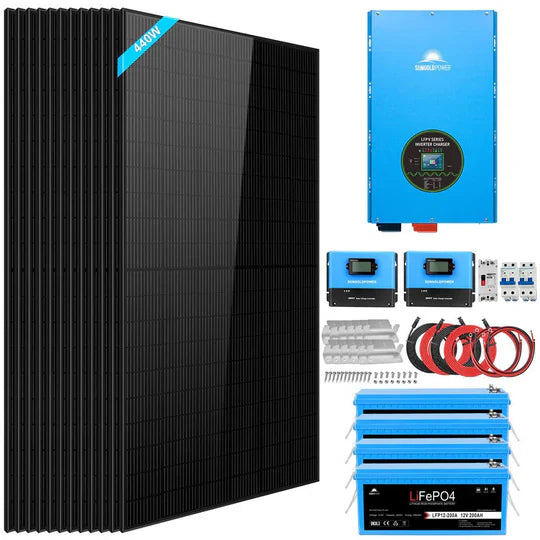

What's Included
Everything you need is included with your product.
- 1 X 12000 Watt 48V DC 120V/240V Inverter
- 2 X 100A Mppt Solar Charge Controller
- 12 X 440 Watt Monocrystalline Solar Panels
- 4 X 200AH Lifepo4 Battery with Bluetooth
- 12 X Sets of Mounting Z-Brackets
- 2 x 50 Feet, Solar Extension Cables-Inverter PV input
- 2 Sets X Cable Between Battery and MPPT Controller
- 1 X 200A DC Breaker
- 2 X 25A PV Breaker
Sungold Power Off-Grid Solar Kit 12000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery Specifications

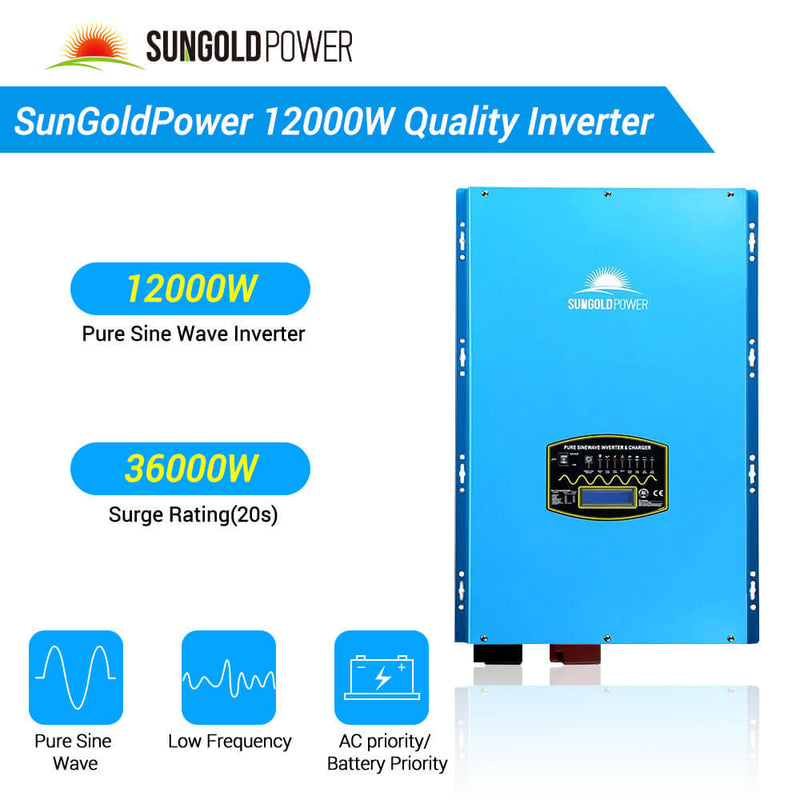

12000 Watt Inverter
| Specification | Details |
| AC Output | 12000W |
| Output Waveform | Pure Sine Wave |
| AC Output | 120V / 240V |
| AC Input Voltage | 240V |
| Type | Low Frequency Inverter |
| Support | Generator |
| Surge Rating (20s) | 36.0KW |
| Dimension | 27.6 × 16.5 × 8 inch |
| Weight | 159.5 LB |
| Warranty | 3 Years |

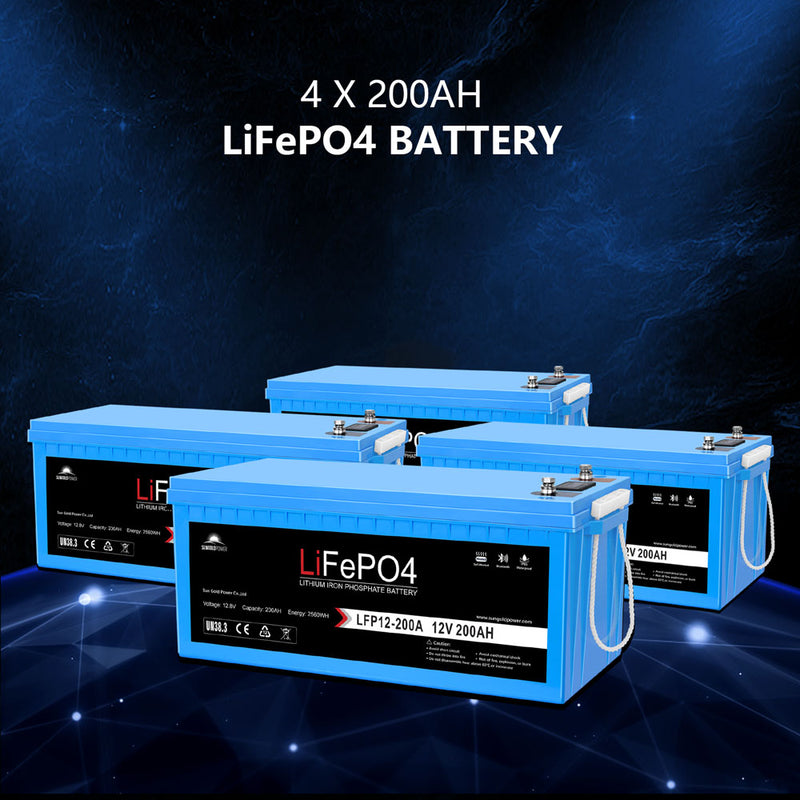

LifePo4 Battery
| Specification | Details |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200AH |
| Energy | 2560WH |
| Voltage Window | 10.8–14.6V |
| MAX Continuous Charge Current | 150A |
| Peak Discharge Current | 245A |
| Cycle Life | >4000 |
| Main Character | Self Heating / IP65 |
| Monitoring Function | LCD / Bluetooth |
| Dimension | 19.7 × 9.4 × 9.1 inch |
| Weight | 48.5 lbs |
| Warranty | 5 Years |
440 Watt Mono Solar Panel
| Specification | Details |
| Peak Power | 440W |
| Solar Cell | Monocrystalline |
| Product Tolerance | ±3% |
| Maximum Power Current (IMP) | 13.05A |
| Maximum Power Voltage (VMP) | 33.72V |
| Short Circuit Current (ISC) | 13.79A |
| Open Circuit Voltage (VOC) | 39.79V |
| Product Dimension | 75.16 × 44.65 × 1.38 inch |
| Product Weight | 54.0 lbs |
| Warranty | 25 Years |
| Certificates | UL61730, TUV, IEC, CEC, CE... |

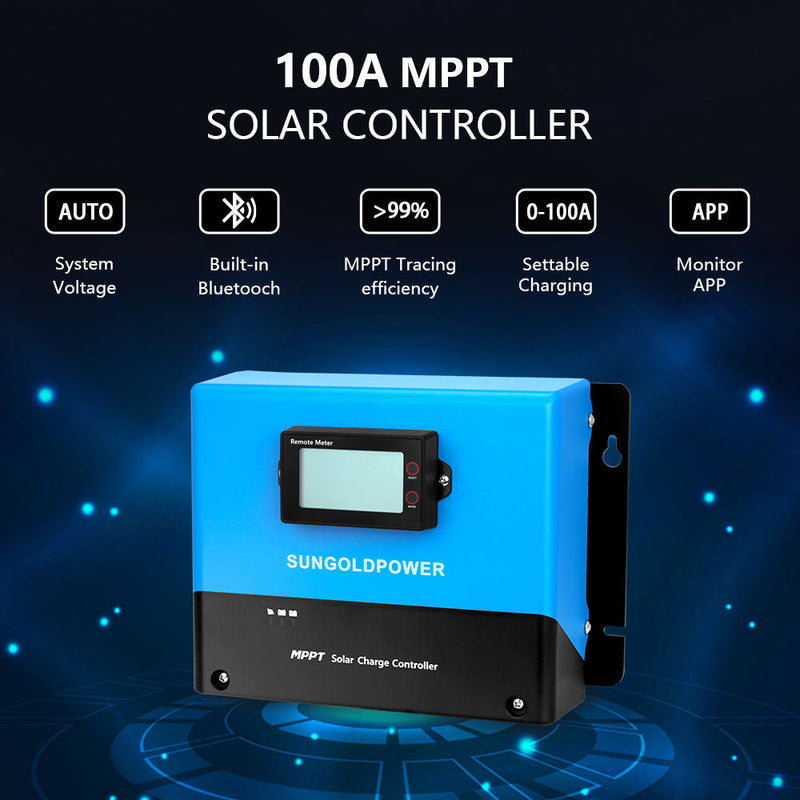

100A MPPT Solar Controller
| Specification | Details |
| System Voltage | 12V / 24V / 36V / 48V Auto |
| Support | Bluetooth and APP monitoring |
| Maximum PV Open-circuit Voltage | 250V |
| Maximum PV Short-circuit Current | 70A |
| Rated Charging Current | 100A |
| Settable Charging Current | 0–100Asteel |
| Power of Solar Panel | 12V–1320W, 24V–2640W, 36V–3960W, 48V–5280W |
| MPPT Tracing Efficiency | >99% |
| Product Dimension | 12.4 × 8.9 × 4.8 inch |
| Weight | 12.5 lb |
| Warranty | 3 Years |
Solar Kit Specification
| Specification | Details |
| Max Continuous Output | 12000W |
| AC Output | 120V / 240V |
| DC Voltage | 48V |
| Max Solar Input | 2 × 3500W |
| Total Watt of Panels | 5280W |
| Per Panel Watt | 440 Watt |
| Panel NO. | 12 pcs |
| Total KWH of Batteries | 10.24KWH |
| Chemistry | Lithium |
| Battery NO. | 4 pcs |
| Battery Spec | 12V 200AH |
Frequently-Asked Questions
Can this system power my whole house off-grid?
Yes, with proper energy management, this 12000W system can power full-sized homes, including large appliances, water pumps, lighting, and electronics.
Is it expandable in the future?
Absolutely. You can scale the battery bank or add more solar panels and MPPT charge controllers as your energy needs grow.
Does the inverter support generator or grid backup?
Yes, the pure sine wave inverter is generator-ready and can work in hybrid or backup configurations if needed.
How long will the batteries last?
The LiFePO4 batteries are rated for over 6000 cycles at 80% depth of discharge, which translates to 10+ years of use in most applications.
Is installation DIY-friendly?
While experienced users can install this kit, we recommend professional installation to ensure safety, code compliance, and optimal performance.
