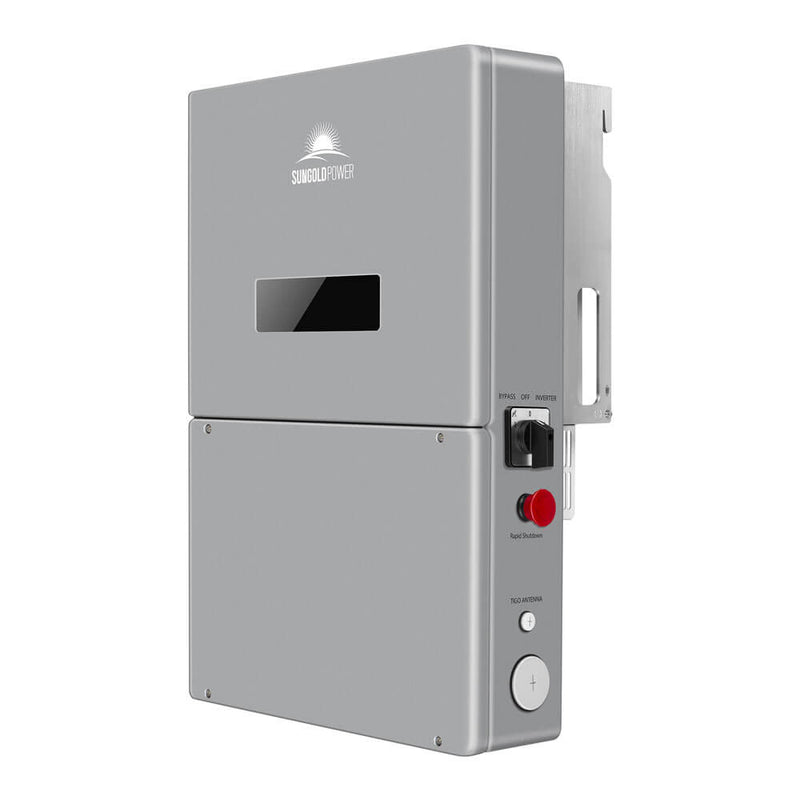

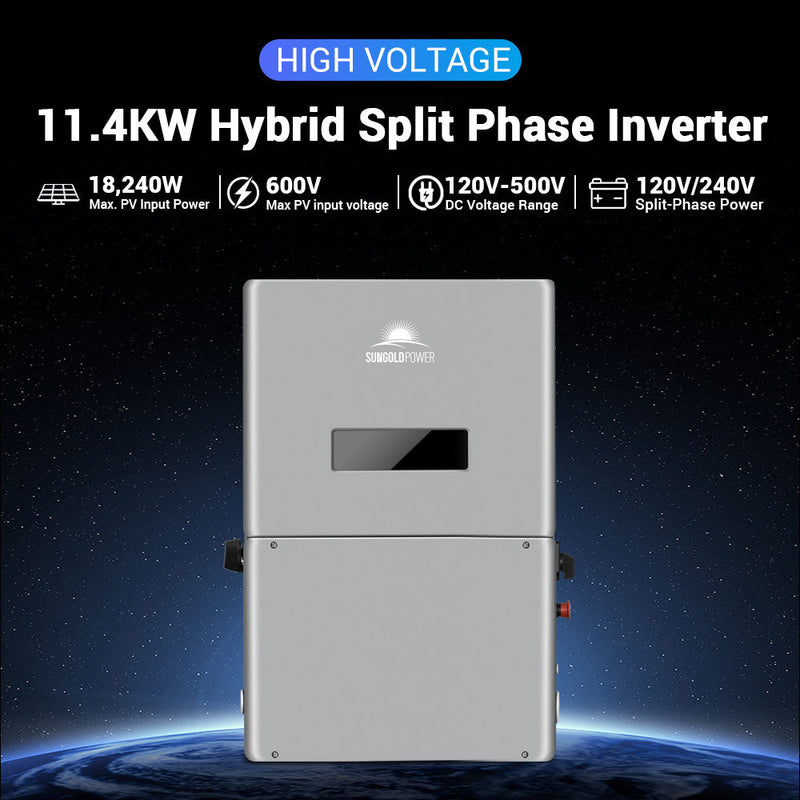

SunGold Power High Voltage 11.4kW Hybrid Split Phase Inverter
The SunGold Power 11.4kW Hybrid Split Phase Inverter is a powerful, high-voltage energy solution designed for off-grid solar systems, home backup, and commercial applications. With advanced hybrid technology, it seamlessly integrates solar, battery, and grid power to optimize energy usage while ensuring uninterrupted power supply. Featuring APS transmitter compatibility, this inverter enhances efficiency and performance for modern energy storage systems.
SunGold Power 11.4kW Hybrid Split Phase Inverter Features
High-Powered & Versatile
- 11.4kW Pure Sine Wave Output ensures clean and stable power for all appliances.
- Split Phase 120V/240V Capability supports home and commercial energy needs.
- Hybrid Functionality optimizes solar, battery, and grid power integration.
Smart Energy Management
- Built-in MPPT Solar Charger maximizes energy efficiency.
- Advanced Battery Management System (BMS) ensures safe and effective power storage.
- Seamless Automatic Transfer Switching for uninterrupted power supply.
APS Transmitter Compatibility
- Enhanced Power Stability with grid-tied and off-grid applications.
- Remote Monitoring & Control for easy energy management.
- Scalable & Expandable Design supports additional battery capacity.
Reliable & Safe Design
- Multiple Protection Features: Overload, short circuit, over-temperature protection.
- Heavy-Duty Construction for long-term performance.

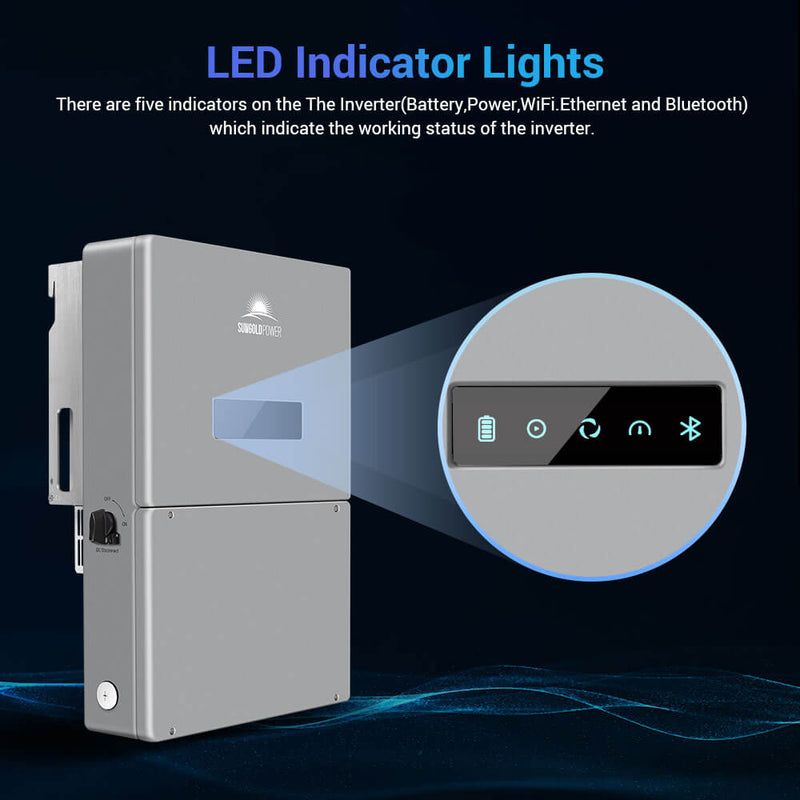

- User-Friendly LCD Display for real-time system monitoring.
SunGold Power 11.4kW Hybrid Split Phase Inverter Applications
Off-Grid Solar Systems
Perfect for homes, cabins, and remote locations that operate entirely off the grid. This inverter allows users to store and utilize solar energy efficiently, ensuring reliable power even in areas with no access to utility electricity.
Home Backup Power
Acts as a standby power solution during outages, keeping essential appliances like refrigerators, medical devices, and lights running. With seamless automatic transfer switching, it instantly shifts to battery or solar power when grid failure occurs.
Commercial & Industrial Use
Designed for businesses, farms, and workshops that require high-powered energy solutions. With its 11.4kW capacity and split-phase output, it can power multiple devices simultaneously, including motors, HVAC systems, and heavy-duty equipment.
Hybrid Solar-Grid Integration
Allows users to combine solar, battery storage, and grid electricity for a cost-effective and energy-efficient setup. It prioritizes solar and battery use, reducing reliance on expensive utility power and lowering electricity costs.

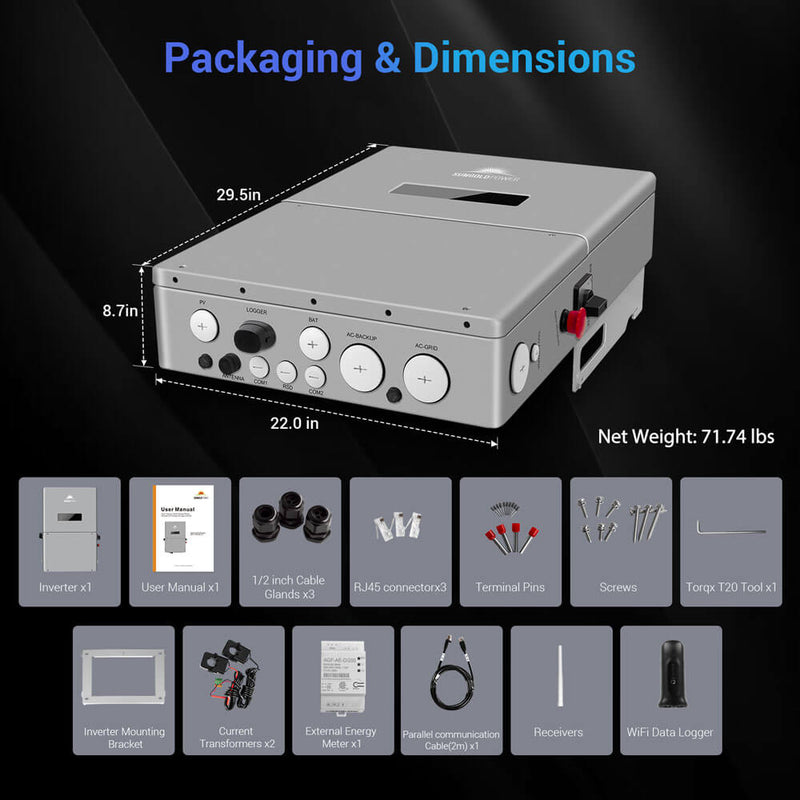

What's Included
Everything you need is included with your product.
- SunGold Power High Voltage 11.4kW Hybrid Split Phase Inverter
- User Manual
SunGold Power 11.4kW Hybrid Split Phase Inverter Specifications
Input DC (PV side)
| Specification | Details |
| Recommended max. PV power | 18,240W |
| Max. input voltage | 600V |
| MPPT voltage range | 80-550V |
| Max. input current per string | 16A |
| Number of MPPTs / Number of strings per MPPT | 4/1 |
Energy Storage
| Specification | Details |
| Battery Type | Lithium-ion |
| Battery voltage range | 120-500V |
| Maximum charge/discharge current | 50A |
| Battery Communication | CAN/RS485 |
AC Output (Grid)
| Specification | Details |
| Rated output power | 11.4kW |
| Rated output voltage | 240V |
| Rated frequency | 60Hz |
| Rated output current | 47.5A |
| THDi | <3% |
AC Input (Grid)
| Specification | Details |
| Input voltage range | 211-264V |
| Max. input current | 71.3A |
| Frequency range | 58.8-61.2 Hz |
AC Output (Backup and Off-grid)
| Specification | Details |
| Rated output power | 11.4kW |
| Max. apparent output power | 18.2 kVA, 10 sec |
| Back-up switch time | <10ms |
| Phase Power | 240V Split-Phase |
| Rated AC output voltage | 240V |
| AC output voltage range | 211-264V |
| Rated frequency | 60Hz |
| Rated AC output current (continuous) | 47.5A |
| Power Factor | >0.99 (0.8 leading - 0.8 lagging) |
| THDv (@linear load) | <3% |
General Data
| Specification | Details |
| Dimensions (H/W/D) | 29.53 × 22.05 × 8.66 in (750 × 560 × 220 mm) |
| Weight | 71.74 lbs (32.54 kg) |
| Operation temperature range | -25°C to +60°C / -13°F to +140°F |
| Ingress protection | TYPE 4X (IP66) |
| Noise emission (Typical) | <30 dB (A) |

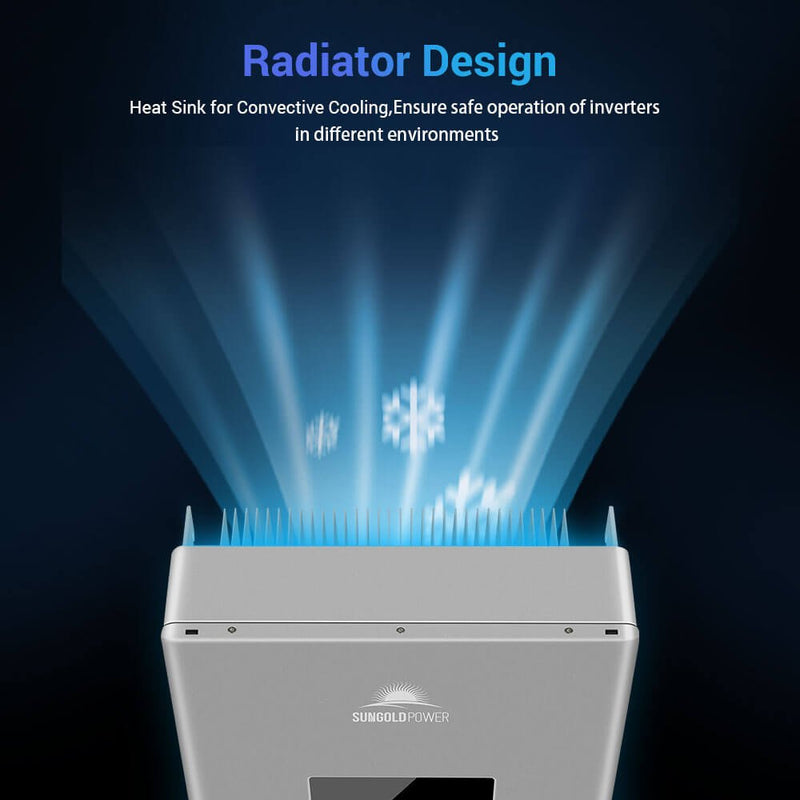

| Cooling method | Natural convection |
| Max. operation altitude | 3,120 ft (4000 m) |
| Compliance | UL1741 SB, UL1741 SA, IEEE1547.1-2020, UL1699B, UL1998, FCC Part15 Class B, California Rule 21, HECO Rule 14H (pending), NEC 690.12-2020, CAN/CSA C22.2107.1-1 |
| Warranty | 10 Years Warranty |
SunGold Power 11.4kW Hybrid Split Phase Inverter Videos
FAQs
How does the APS Transmitter improve performance?
The APS Transmitter enables seamless energy transition and enhances grid-tied and off-grid capabilities, ensuring stable power output and intelligent energy management.
Can I use this inverter for whole-home backup?
Yes, this high-capacity inverter supports split-phase 120V/240V power, making it ideal for whole-house backup and large appliance operation.
What type of batteries are compatible with this inverter?
The SunGold Power 11.4kW Hybrid Inverter supports various battery types, including Lithium, Lead-Acid, AGM, and Gel.
Does it come with a monitoring system?
Yes, the inverter features a built-in LCD display and remote monitoring compatibility for easy tracking of system performance.
