Sungold Power Off-Grid Solar Kit 6000W 48VDC 120V/240V LifePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels
Sungold Power Off-Grid Solar Kit 6000W 48VDC 120V/240V LifePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels
The Sungold Power 6000W Off-Grid Solar Kit is a comprehensive and scalable energy solution built for off-grid homes, backup systems, or remote facilities. This high-output setup features a split-phase 120V/240V pure sine wave inverter, a 10.24kWh LiFePO4 server rack battery bank, and six 370W monocrystalline solar panels. With expandable storage and solar input, this kit offers clean, dependable power for everyday use or emergency preparedness—perfect for those aiming for complete energy independence.
Sungold Power Off-Grid Solar Kit 6000W 48VDC 120V/240V LifePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels Features
6000W Pure Sine Wave Inverter (48VDC to 120V/240V AC)
Split-phase inverter delivers dual-voltage output for running both standard and high-voltage appliances—ideal for full off-grid homes or workshops.
10.24kWh Server Rack LiFePO4 Battery (48V 100Ah x 2)
Long-lasting lithium battery system offers over 6000 cycles at 80% depth of discharge. Built-in BMS protects from overcharging, overheating, and short circuits.
6 x 370W High-Efficiency Monocrystalline Panels (2220W Total)
Built with durable aluminum framing and tempered glass for weather resistance and long-term solar harvesting performance.
Integrated MPPT Charge Controller
Boosts charging efficiency by tracking real-time solar input, optimizing current and voltage flow to store energy faster.
Fully Expandable System
Supports additional solar panels and batteries, making it easy to scale the system based on evolving energy needs.
DIY-Friendly Installation Kit
All necessary wiring, brackets, and components are included for straightforward setup—great for DIY users or professionals.
Sungold Power Off-Grid Solar Kit 6000W 48VDC 120V/240V LifePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels Applications
- Full off-grid homes and cabins - Delivers dependable energy for households, powering refrigerators, lighting, appliances, and electronics around the clock.
- Workshops and garages - Supplies consistent power for running high-draw tools, compressors, or lighting in remote or standalone buildings.
- Agricultural sites or farm buildings - Ideal for irrigation pumps, electric fences, lighting, and off-grid security systems on ranches or fields.
- Emergency backup systems - Ensures reliable energy storage and power output during outages, keeping essential devices and systems operational.
- Remote offices or mobile workstations - Powers computers, routers, and tools in off-grid or rural setups with steady voltage and long battery life.

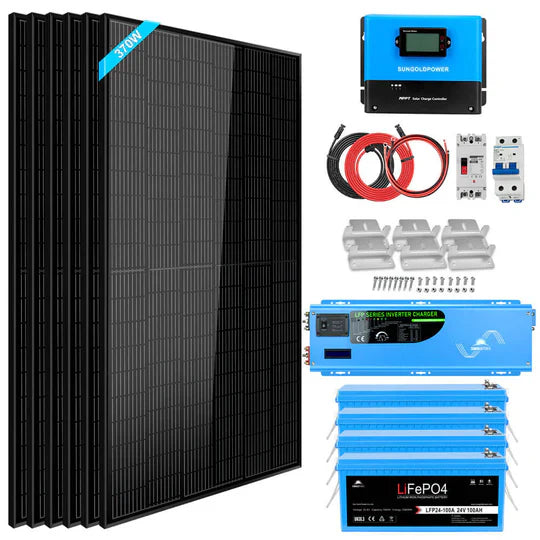

What's Included
Everything you need is included with your product.
- 1 X 6000 Watt 48V DC 120V/240V Inverter/Charger UL1741
- 6 X 370 Watt Monocrystalline Solar Panels
- 4 X 12V 200AH Battery with Bluetooth
- 1 X 100A Mppt Solar Charge Controller
- 1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
- 1 Sets X Cable Between Battery and MPPT Controller
- 6 X Sets of Mounting Z-Brackets
- 1 X DC Breaker 200A
- 1 X 25A breaker
Sungold Power Off-Grid Solar Kit 6000W 48VDC 120V/240V LifePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels Specifications

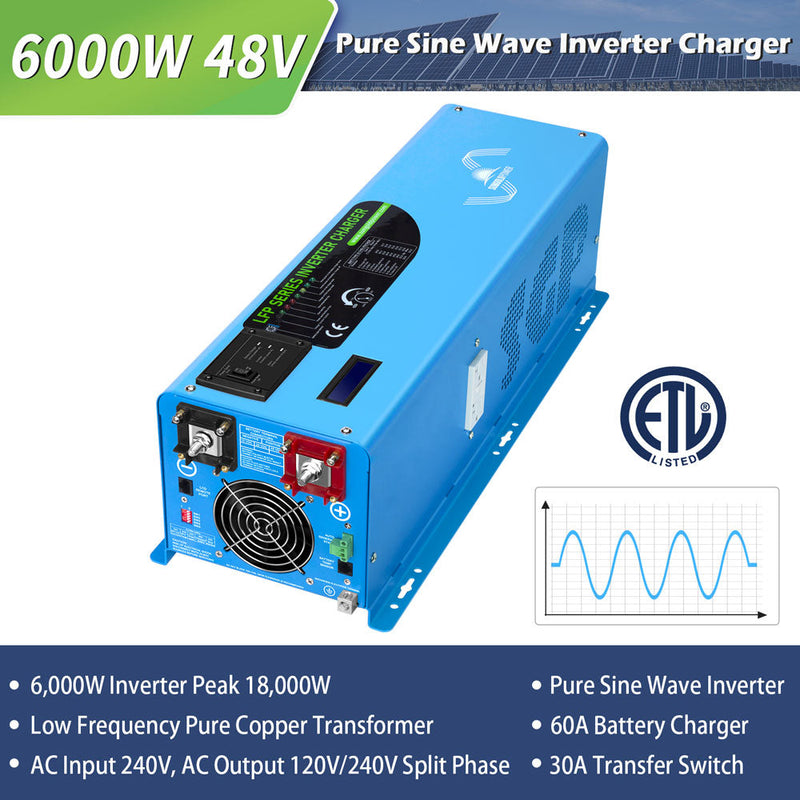

6000 Watt Inverter
| Specification | Details |
| AC Output | 6000W |
| Output Waveform | Pure Sine Wave |
| AC Output | 120V / 240V |
| Efficiency | >88% |
| Nominal Input Voltage | 48VDC |
| Max Charging Current | 60 ± 5A |
| Dimension | 25.6 × 9.1 × 7.5 inch |
| Weight | 75.8 LB |
| Warranty | 3 Years |
LifePo4 Battery
| Specification | Details |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200AH |
| Energy | 2560WH |
| Voltage Window | 10.8 – 14.6V |
| MAX Continuous Charge Current | 150A |
| Peak Discharge Current | 245A |
| Cycle Life | >4000 |
| Main Character | Self Heating / IP65 |
| Monitoring Function | LCD / Bluetooth |
| Dimension | 19.7 × 9.4 × 9.1 inch |
| Weight | 48.5 lbs |
| Warranty | 5 Years |

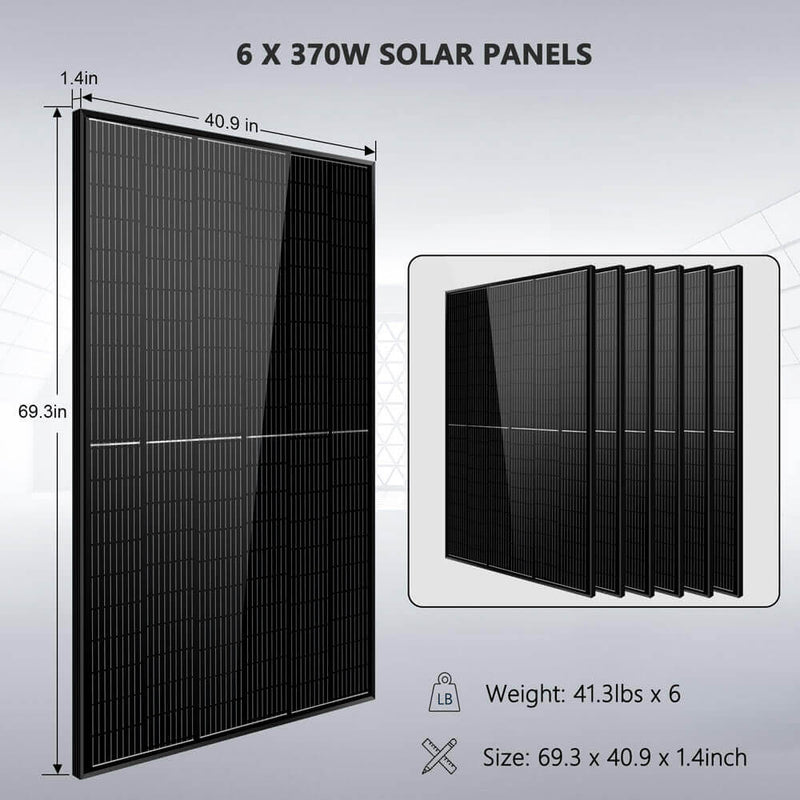

370 Watt Mono Solar Panel
| Specification | Details |
| Peak Power | 370W |
| Solar Cell | Monocrystalline |
| Product Tolerance | ±3% |
| Maximum Power Current (IMP) | 11.15A |
| Maximum Power Voltage (VMP) | 33.2V |
| Short Circuit Current (ISC) | 11.81A |
| Open Circuit Voltage (VOC) | 40.17V |
| Product Dimension | 63.23 × 44.65 × 1.38 inch |
| Product Weight | 41.8 lbs |
| Warranty | 25 Years |
| Certificates | UL61730, TUV, IEC, CEC, CE... |

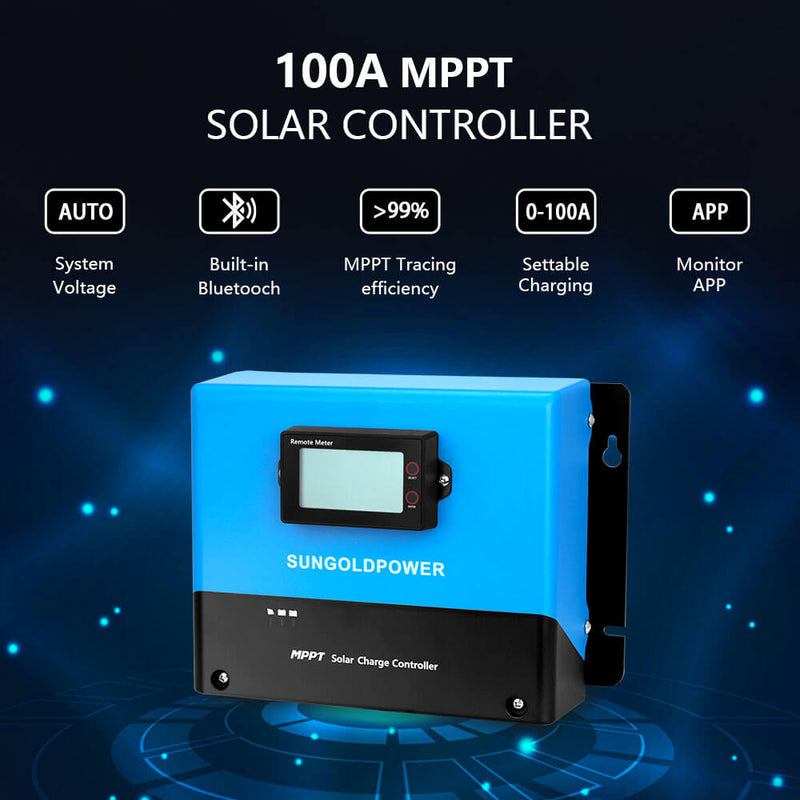

100A MPPT Solar Controller
| Specification | Details |
| System Voltage | 12V / 24V / 36V / 48V Auto |
| Support | Bluetooth and APP monitoring |
| Maximum PV Open-circuit Voltage | 250V |
| Maximum PV Short-circuit Current | 70A |
| Rated Charging Current | 100A |
| Settable Charging Current | 0 – 100A |
| Power of Solar Panel | 12V – 1320W, 24V – 2640W, 36V – 3960W, 48V – 5280W |
| MPPT Tracing Efficiency | >99% |
| Product Dimension | 12.4 × 8.9 × 4.8 inch |
| Weight | 12.5 lb |
| Warranty | 3 Years |
Frequently Asked Questions
Can this system run both 120V and 240V appliances?
Yes. The split-phase inverter delivers both voltages, allowing you to power standard appliances as well as higher-load devices like well pumps or dryers.
Can I install this system myself?
Yes. The kit includes everything needed for installation and is designed for DIY users. However, consulting a licensed electrician is recommended for full compliance and safety.
Can the system be expanded later?
Absolutely. You can add more panels or server rack batteries as your power usage increases.
How long will the battery last?
The LiFePO4 battery system is rated for over 6000 cycles, giving you 10+ years of service under normal use.
