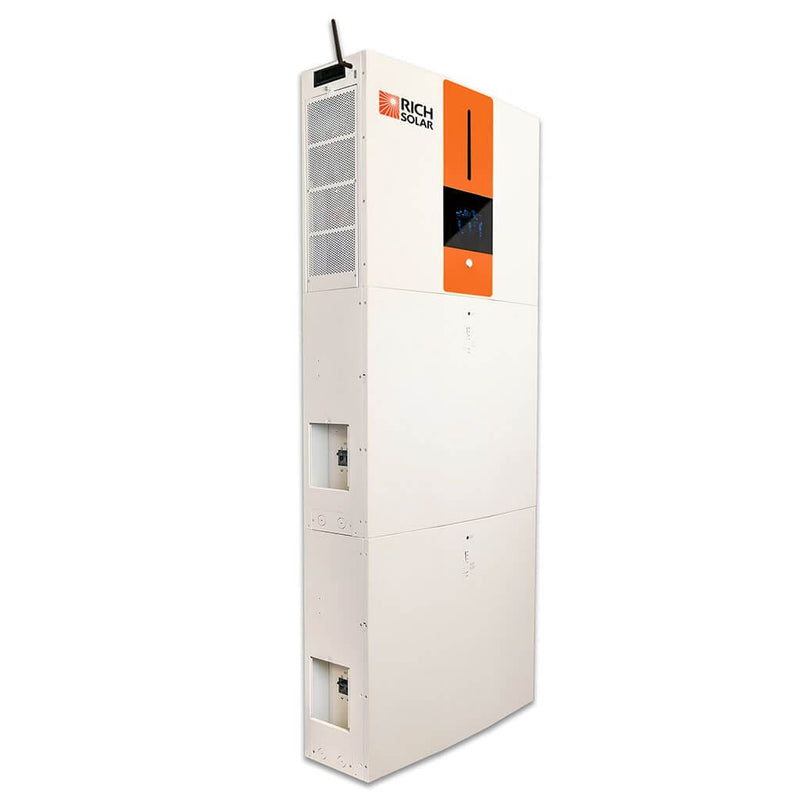

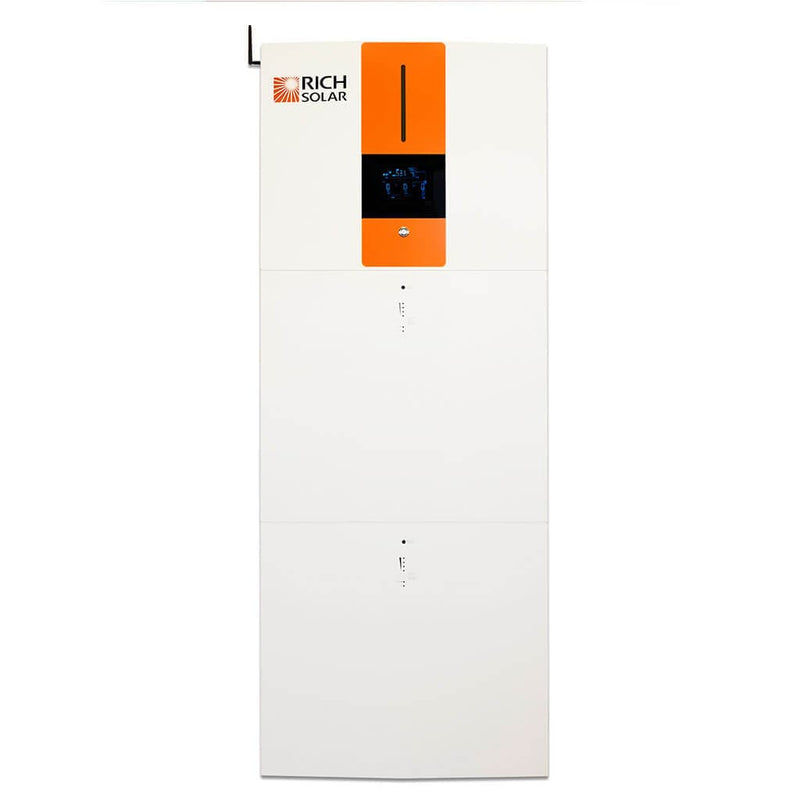

RICH SOLAR All-in-One Energy Storage System
The RICH SOLAR All-in-One Energy Storage System is a powerful, pre-configured solution that integrates an inverter, battery storage, and solar charge controller into a single, space-saving cabinet. Engineered for residential and commercial off-grid or backup applications, this unit simplifies installation while delivering reliable and efficient energy storage. It’s a plug-and-play power system built to handle daily energy needs, backup loads, or full off-grid living—with UL certifications for added safety and peace of mind.
RICH SOLAR All-in-One Energy Storage System Features
All-in-One Cabinet Design
Combines inverter, batteries, and solar charge controller into one integrated, enclosed system—simplifies setup and reduces clutter.
High-Capacity Energy Storage
Stores substantial energy to power your entire home or essential loads during outages or for daily off-grid use.
Inverter & MPPT Controller Built-In
Features a powerful hybrid inverter with a high-efficiency MPPT charge controller, optimizing solar energy use and storage.
Plug-and-Play Installation
Pre-wired and factory-tested—no complex wiring or additional equipment needed, making setup fast and simple.

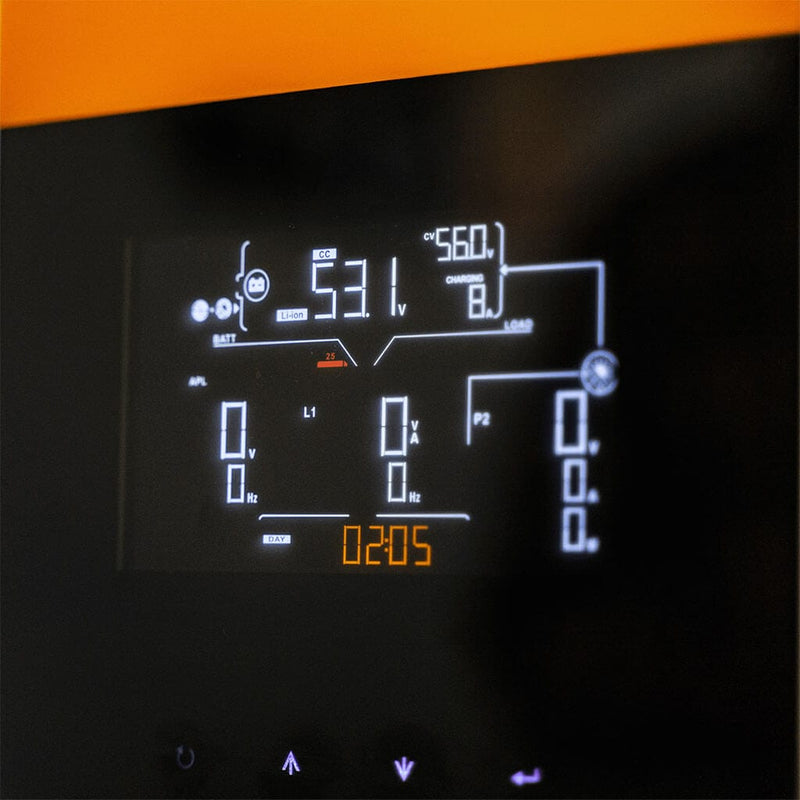

Smart Monitoring System
Real-time performance tracking through an intuitive monitoring display, helping users stay informed and in control.
UL Certified Safety
Meets UL standards for both residential and commercial use, ensuring safe and code-compliant energy storage deployment.
RICH SOLAR All-in-One Energy Storage System Applications
- Whole-Home Backup Power – Ensures uninterrupted power to critical circuits or entire home systems during grid outages.
- Off-Grid Living – Powers homes, cabins, or ADUs completely independent of the utility grid with integrated solar charging.
- Commercial Emergency Backup – Provides a clean, quiet alternative to generators for small businesses and agricultural operations.
- Solar Energy Optimization – Stores excess solar production for use at night or during peak rate periods, maximizing solar ROI.
- Mobile or Remote Installations – Ideal for off-site projects or remote structures where traditional infrastructure isn’t available.
What's Included
Everything you need is included with your product.
- 1 x RICH SOLAR All-in-One Energy Storage System Cabinet
- 1 x User Manual
RICH SOLAR All-in-One Energy Storage System Specifications
| Category | Specifications |
| Model | RS-A10 |
| Maximum PV Input Power | 8000W |
| Rated Output Power | 6500W |
| Maximum Charging Power | 6500W |
PV INPUT (DC)
| Category | Specifications |
| MPPT Range @ Operating Voltage | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC/p> |
| Maximum Solar Charge Current | 120A |
| Number of MPP Trackers / Maximum Input Current | 2 / 2 x 18 A |
AC INPUT
| Category | Specifications |
| Acceptable Input Voltage Range | 90-140 VAC (For Computers) | 80-140 VAC (For Home Appliances) |
| Maximum AC Input Current: | 60A |
BATTERY MODE OUTPUT
| Category | Specifications |
| Nominal Output Voltage | 120 VAC |
| Maximum Conversion Efficiency (DC/AC) | 93% |
BATTERY
| Category | Specifications |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | 120 A |
| Dimension (D x W x H) | 8.4' x 24.4' x 19.7' |
| Net Weight | 99 lb |
| Capacity | 5120Wh |
| Nominal Voltage | 51.2VDC |
| Full Charge Voltage(FC) | 56V |
| Full Discharge Voltage(FD) | 42V |
| Typical Capacity | 100 Ah |
| Max Continuous Discharging Current | 120A |
| Max Discharging Current | 192A at 1 min |
| Protection | BMS, Breaker |
| Float Charge Voltage | 52.5V |
| Charge Current | 20A (0.2C) |
| Maximum Charge current | 50A (0.5C) |
| Standard Charge method | 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C |
| Inner Resistance | =20m ohm |
ALL IN ONE SYSTEM PHYSICAL
| Category | Specifications |
| System Dimension (D X W X H) | 19.7' x 26' x 49.2' |
| Net Weight | 287 lb |
STANDARD
| Category | Specifications |
| Compliance Safety | IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B |
RICH SOLAR All-in-One Energy Storage System Video
Frequently-Asked Questions
Does this system include batteries and inverter?
Yes. It comes fully integrated with a lithium battery bank, hybrid inverter, and MPPT controller, all pre-wired inside the cabinet.
Can this power my whole house?
Yes. The 6kW inverter and 10.24kWh battery can support full-home loads or be customized for critical circuits.
Is this expandable?
Yes. Additional battery modules can be added to increase storage capacity, depending on your energy needs.
Can it be installed outdoors?
This system is designed for indoor or protected installations. If used outdoors, it must be placed in a weatherproof enclosure.
What kind of maintenance does it require?
Minimal maintenance—no fluids or moving parts, just occasional system checks and performance monitoring.
