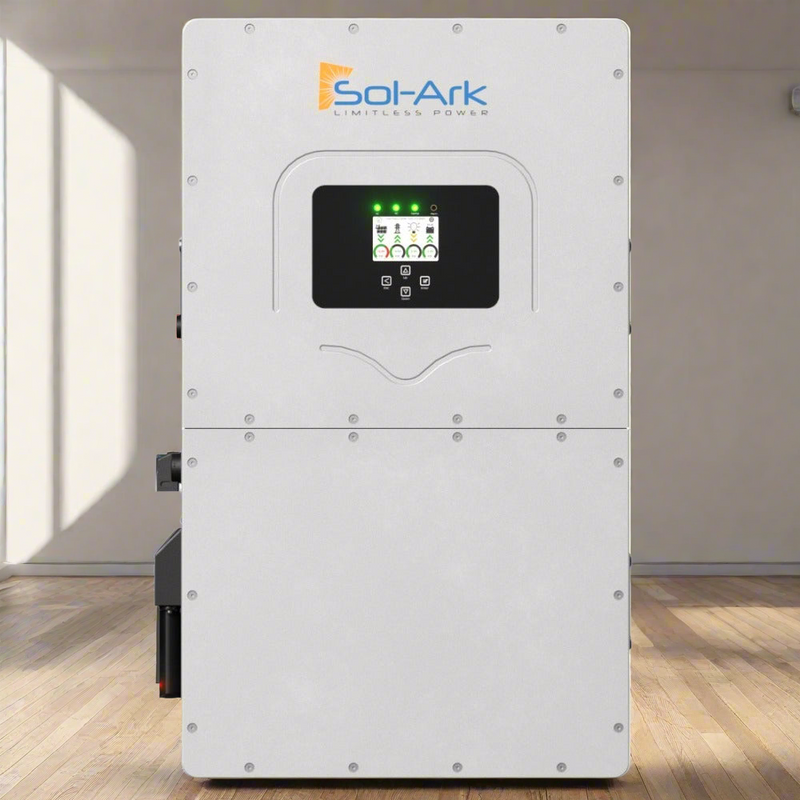

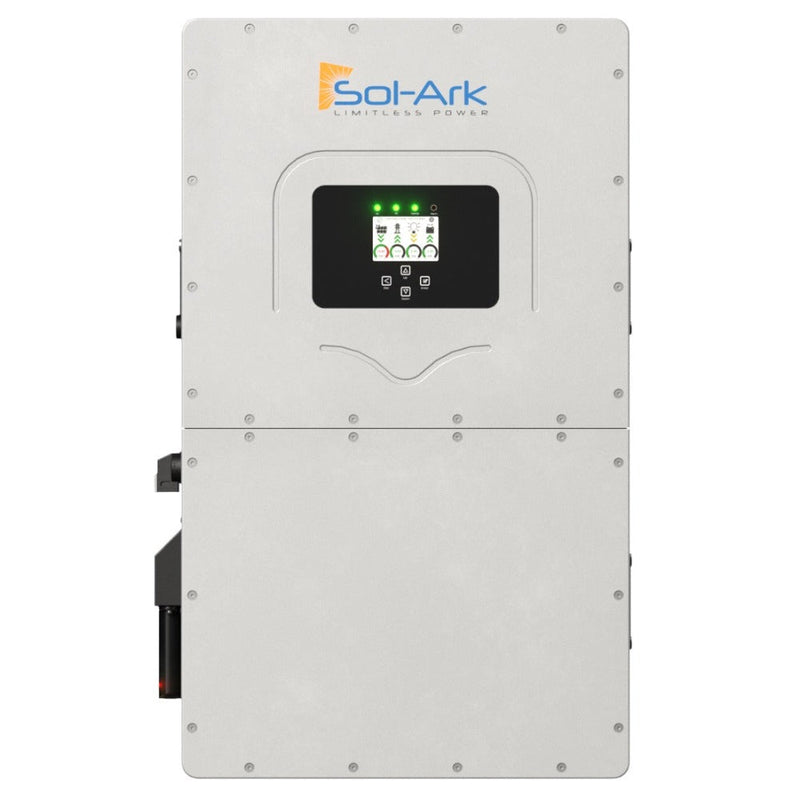

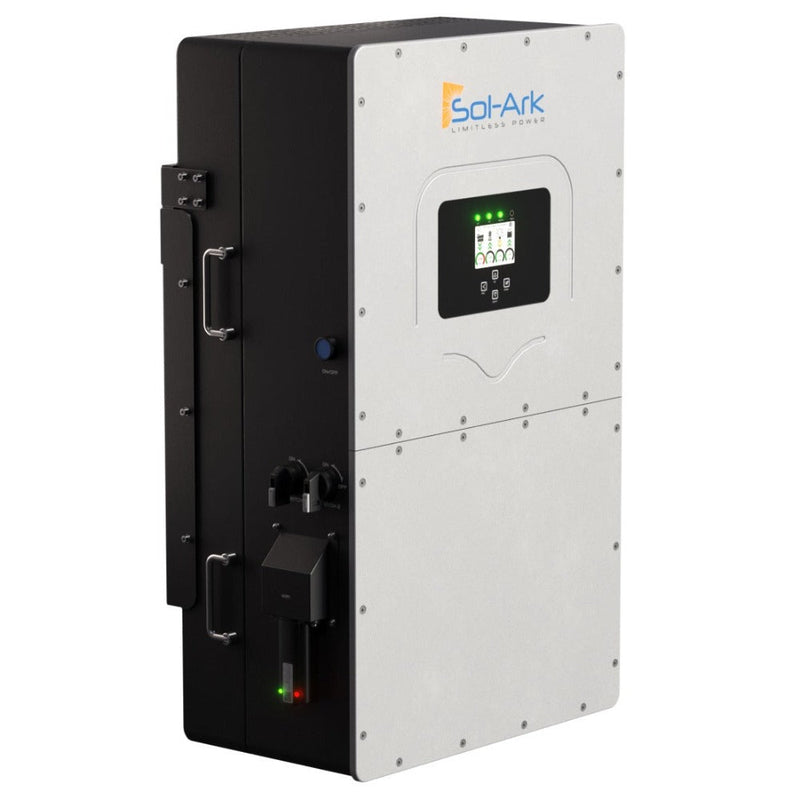

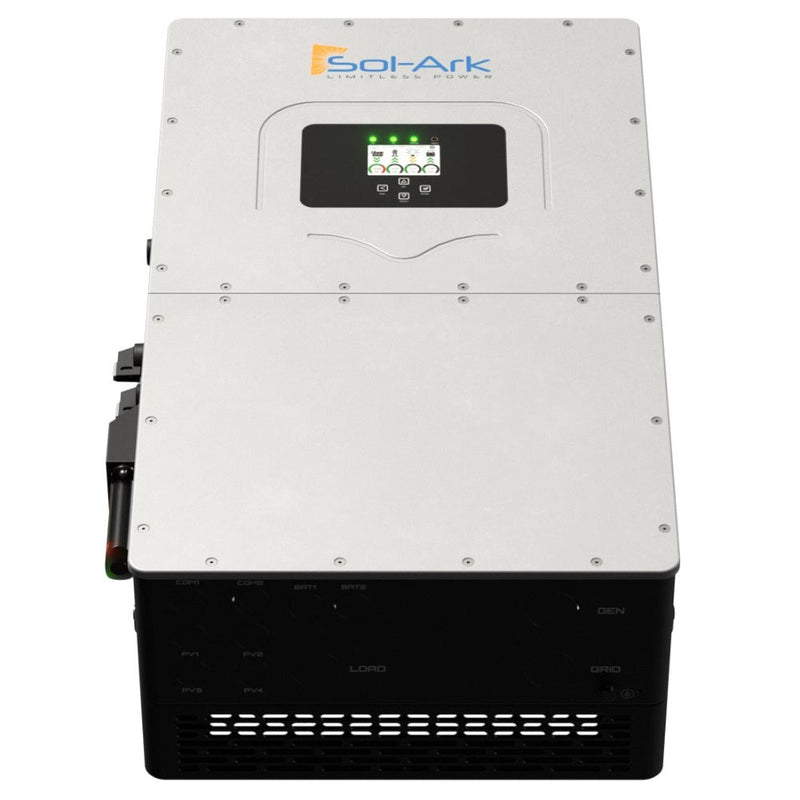

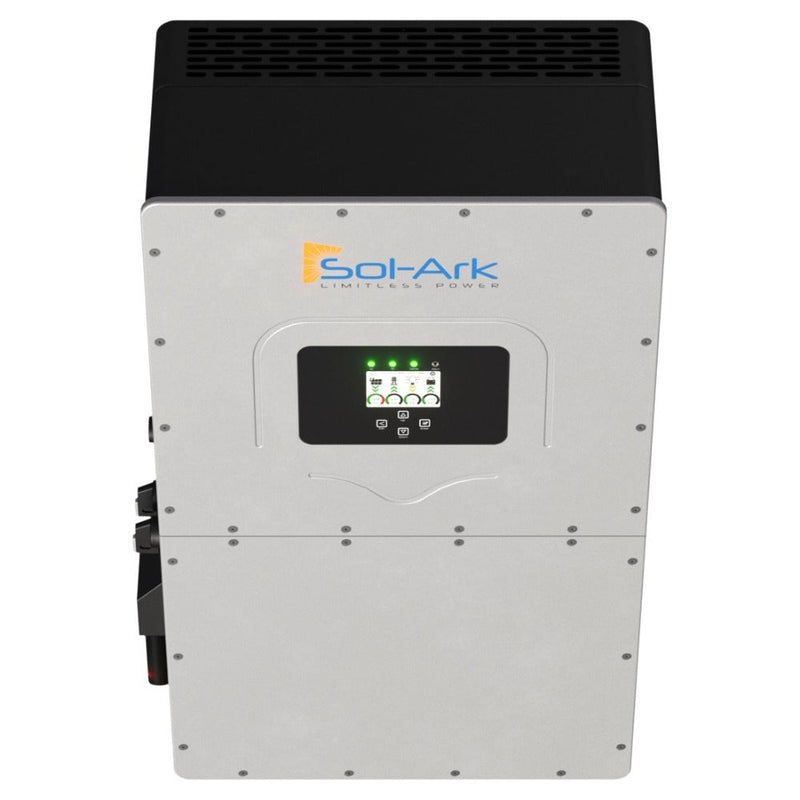

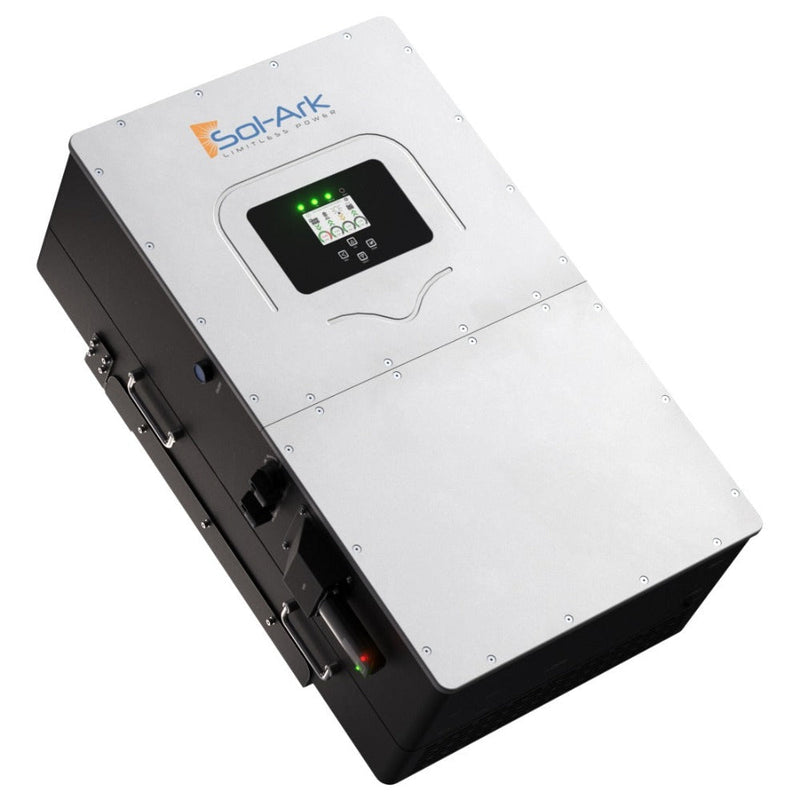

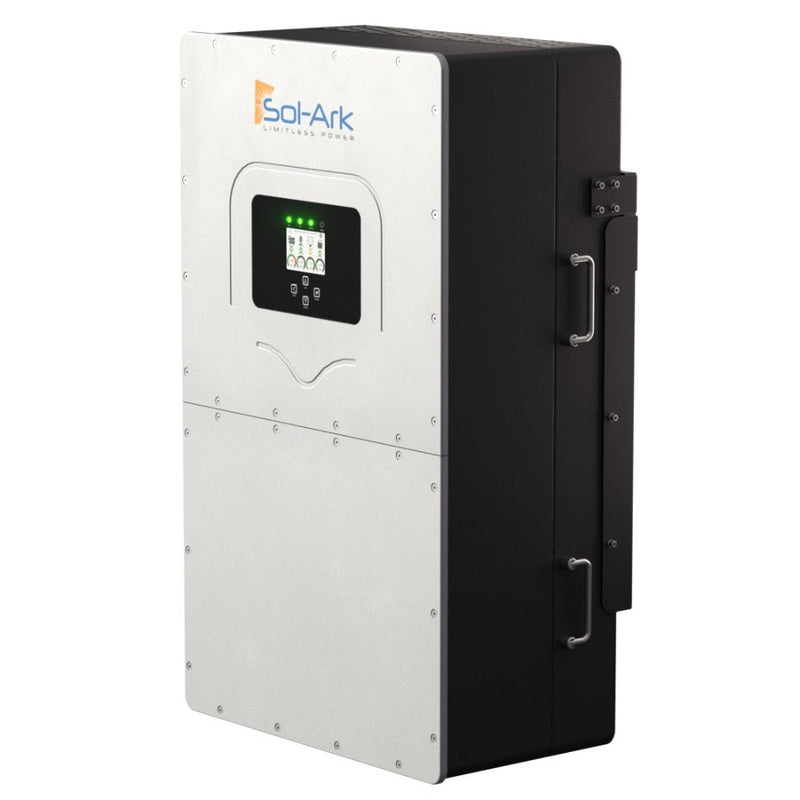

Sol-Ark 30K 3-Phase Hybrid Solar Inverter
The Sol-Ark 30K 3-Phase Hybrid Solar Inverter is a commercial-grade energy solution designed for large-scale applications, including industrial, commercial, and microgrid systems. With a robust 30kW power output, this inverter seamlessly integrates solar, battery storage, and the grid to deliver efficient energy management and backup power. Featuring advanced scalability, multi-unit stacking, and high efficiency, the Sol-Ark 30K ensures reliable performance for high-demand energy applications.
Sol-Ark 30K 3-Phase Hybrid Inverter Features
High-Power Output for Commercial Use
Delivers 30kW of continuous power, making it ideal for large-scale energy storage and industrial applications.
True 3-Phase Hybrid Functionality
Supports 208V 3-phase power, ensuring compatibility with commercial and industrial power systems.
Multi-Unit Stacking for Scalability
Stack up to 12 units to create a massive 360kW power system, providing flexibility for larger operations.
Peak Efficiency & Fast Transfer Time
Achieves an industry-leading 97.5% efficiency and features an ultra-fast <8ms transfer time for seamless power switching.
Multiple Battery & Energy Storage Options
Compatible with 48V and high-voltage battery systems, allowing for diverse storage solutions.
Advanced Monitoring & Smart Controls
Remote monitoring and system control via the Sol-Ark web portal and mobile app, providing real-time energy management.
Sol-Ark 30K 3-Phase Hybrid Inverter Applications
- Commercial & Industrial Facilities – Ideal for factories, data centers, warehouses, and corporate buildings requiring uninterrupted power supply.
- Microgrids & Energy Independence – Supports large-scale microgrid installations, reducing dependency on the grid and optimizing renewable energy sources.
- Solar-Plus-Storage Solutions – Seamlessly integrates with solar panels and battery storage to maximize energy efficiency.
- EV Charging Stations – Powers large-scale EV charging infrastructures, ensuring high energy availability for fleet operations.
- Emergency Backup for Large-Scale Operations – Delivers instant backup power for hospitals, government buildings, and critical infrastructure.
What's Included
Everything you need is included with your product.
- Sol-Ark 30K 3-Phase Hybrid Solar Inverter
- User manual
Sol-Ark 30K 3-Phase Hybrid Solar Inverter Specifications
Input Data (PV)
| Specification | Details |
| Max. Allowed PV Power (STC) | 39,000W |
| MPPT Voltage Range | 150-500V |
| Startup Voltage | 180V |
| Max. Input Voltage | 550V |
| Max. Operating Input Current per MPPT | 36A |
| Max. Short Circuit Current per MPPT | 55A |
| No. of MPP Trackers | 4 |
| No. of PV Strings per MPPT | 2 |
| Max. AC Coupled Input | 30,000W |
Output Data (AC)
| Specification | Details |
| Nominal AC Voltage (3Φ) | 120/208V |
| Grid Frequency | 50 / 60Hz |
| Real Power, max continuous (3Φ) | 30,000W |
| Max. Output Current | 83.4A |
| Peak Apparent Power (10s, off-grid, 3Φ) | 45,000VA |
| Max. Grid Passthrough Current (10min) | 200A |
| Continuous Grid Passthrough Current | 180A |
| Power Factor Output Range | +/- 0.8 adjustable |
| Backup Transfer Time | 5ms (adjustable) |
| CEC Efficiency | 96.5% |
| Max Efficiency | 97.5% |
| Design (DC to AC) | Transformerless DC |
| Stackable | Up to 10 in parallel |
Battery Input Data (DC)
| Specification | Details |
| Battery Technologies | Lithium iron phosphate |
| No. of Battery Inputs | 2 |
| Battery Input Terminal Rating | 50A |
| Nominal DC Voltage | ≥300V |
| Operating Voltage Range | 160 - 500V |
| Capacity | 50 — 9900Ah |
| Max. Battery Charge / Discharge Current | 100A (50A per input) |
| Charging Controller Type | CC/CV - BMS Controlled |
| Grid to Battery Charging Efficiency | 96.0% |
| Automatic Generator Start (AGS) | 2 Wire Start - Integrated |
| BMS Communication | CANBus & RS485 MODBUS |
General Data
| Specification | Details |
| Dimensions (H x W x D) | 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in) |
| Weight | 80 Kg / 176 lb. |
| Enclosure | IP65 / NEMA 3R |
| Ambient Temperature | -40 – 60°C, >45°C Derating |
| Noise | < 30 dB @ 25°C (77°F) |
| Idle consumption | 60W |
| Communication and Monitoring | Wi-Fi & LAN Hardware Included |
| Standard Warranty | 10 Years |
Protection and Certifications
| Specification | Details |
| Certifications and Listings | UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP |
| PV DC Disconnect Switch — NEC 240.15 | Integrated |
| Ground Fault Detection — NEC 690.5 | Integrated |
| PV Rapid Shutdown Control — NEC 690.12 | Integrated |
| PV Arc Fault Detection — NEC 690.11 | Integrated |
| PV Input Lightning Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Surge Protection | DC Type II / AC Type II |
Frequently Asked Questions
Can the Sol-Ark 30K work without a battery?
Yes, it can function as a grid-tied inverter without a battery, feeding excess solar power to the grid.
What battery brands are compatible with the Sol-Ark 30K?
The inverter supports most 48V and high-voltage battery systems, including brands like Fortress Power, SimpliPhi, and Blue Planet Energy.
How many inverters can be stacked together?
Up to 12 Sol-Ark 30K units can be stacked for a total system capacity of 360kW.
Can this inverter function as a microgrid?
Yes, it can be used for large-scale microgrid applications, supporting both grid-connected and fully off-grid systems.
Does it support EV charging?
Yes, it can power Level 2 and Level 3 EV charging stations, making it ideal for commercial EV infrastructure.
Is remote monitoring available?
Yes, the Sol-Ark 30K features web-based and mobile app monitoring, allowing users to track energy usage and system performance in real-time.
