Sungold Power 10KW 48V Split Phase Solar Inverter (PRE-ORDER: ETA END OF JULY)

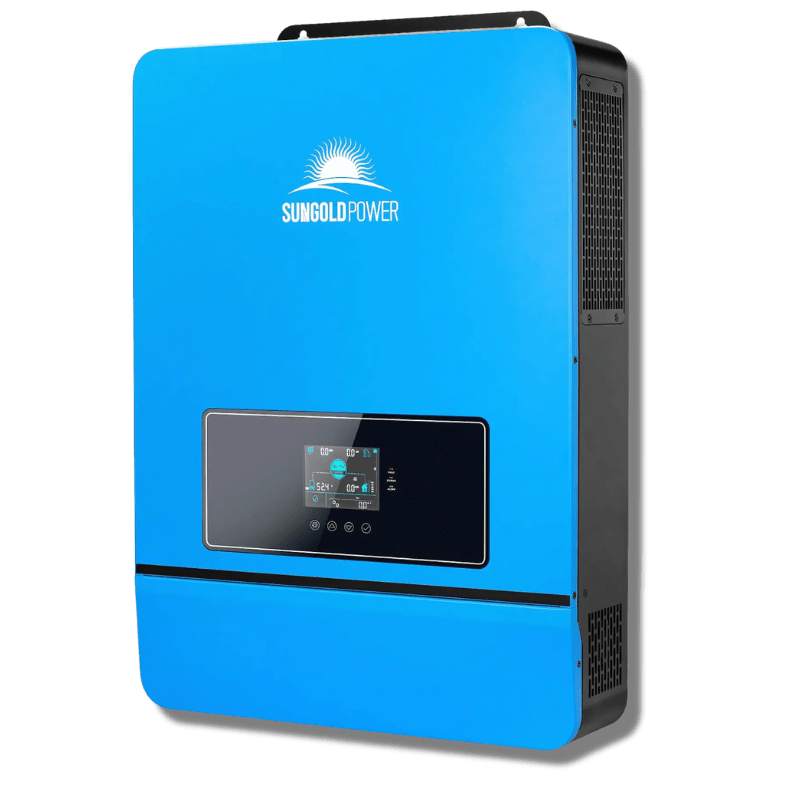

SunGold Power 10KW 48V Split Phase Solar Inverter
The SunGold Power 10KW 48V Split Phase Solar Inverter is a robust and high-performance inverter designed for off-grid and hybrid solar power systems. This UL 1741 certified inverter ensures safe and efficient power conversion for homes, businesses, and industrial setups. With support for up to 6 parallel units, it provides flexible scalability, allowing for power expansion as needed. Its dual MPPT solar controller, Wi-Fi monitoring, and intelligent battery management make it an advanced choice for solar energy users.
SunGold Power 10KW 48V Split Phase Solar Inverter Features
High Power Output & Efficiency

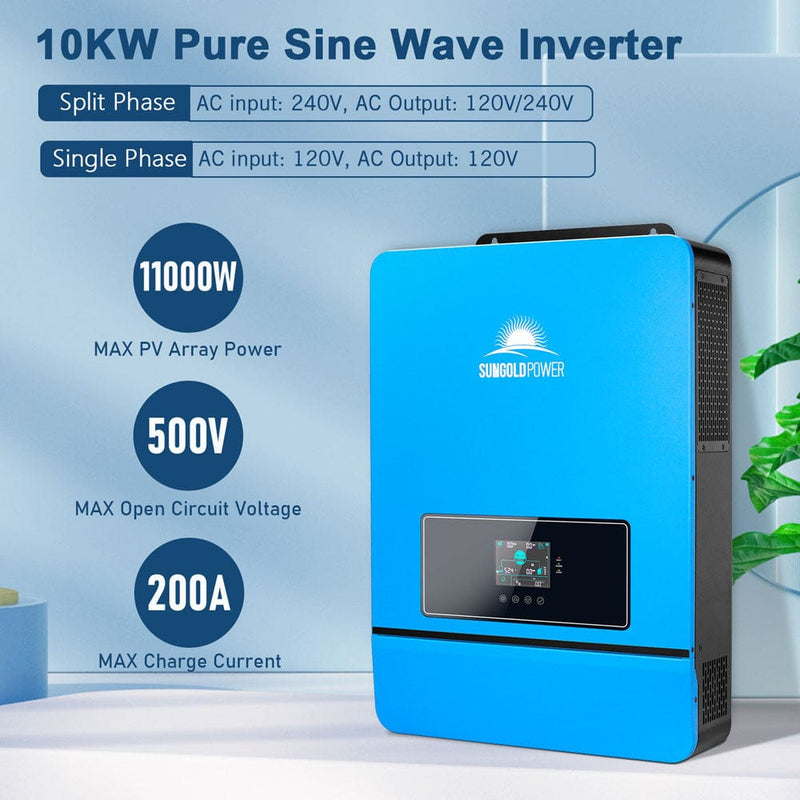

- 10,000W pure sine wave inverter for stable, high-quality power.
- Split-phase output (120V/240V) supports both residential and commercial loads.
- Max 11,000W PV input & 500V max input voltage for optimal solar energy usage.
Advanced Solar Charging Capabilities
- Dual MPPT solar charge controller with 99.9% tracking efficiency.
- Supports two independent solar inputs, maximizing energy harvest.
- 4 charging modes: Solar-only, PV priority, Utility priority, Hybrid charging.
Smart Energy Management & Efficiency
- Time-slot charging/discharging optimizes energy use and cost savings.
- Energy-saving mode reduces no-load power loss.
- Automatic mains/photovoltaic power switching for seamless operation.
Parallel Capability & Scalability

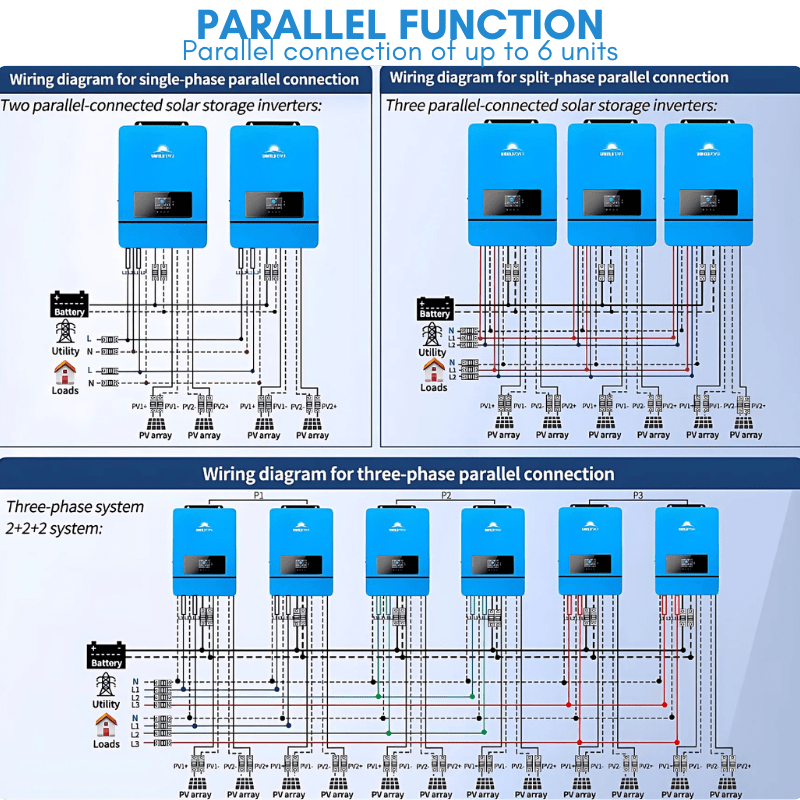

- Supports up to 6 parallel units, expanding power capacity up to 60KW.

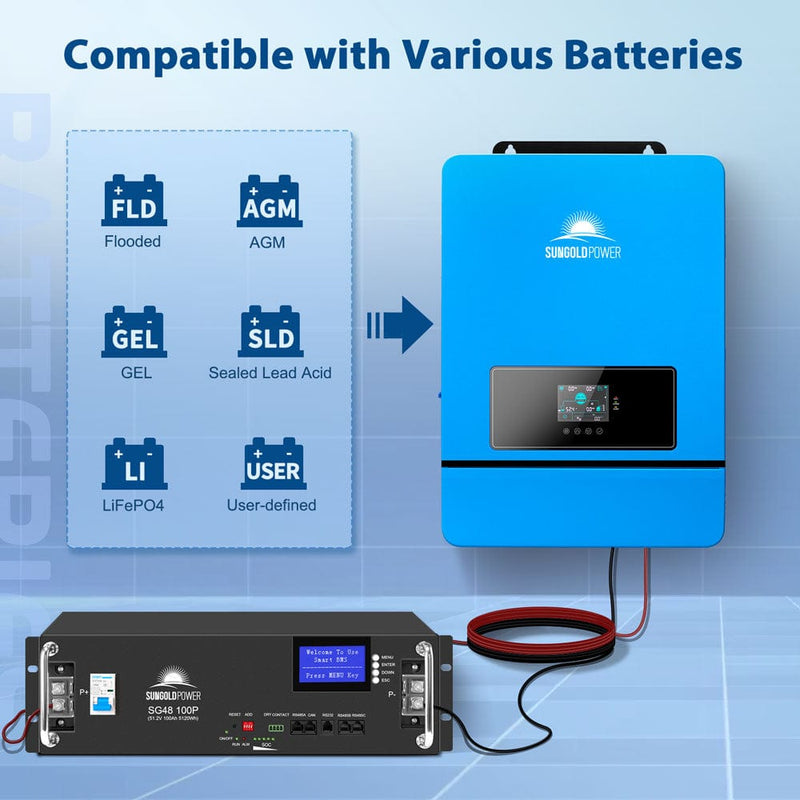

- Compatible with various battery types, including LiFePO4, AGM, and GEL.
Wi-Fi Monitoring & Smart Control

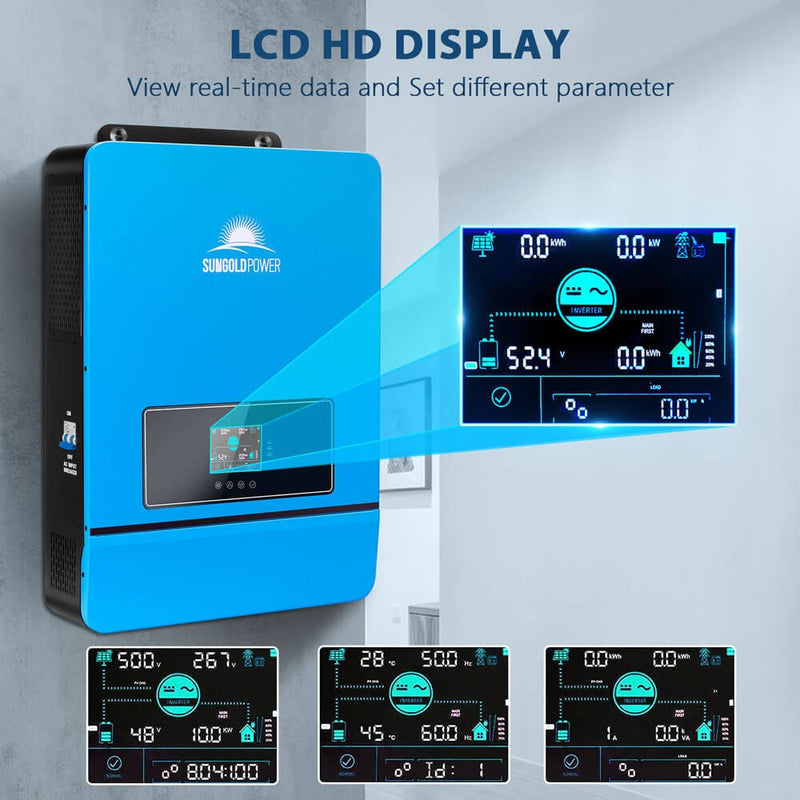

- Wi-Fi module included for real-time system monitoring.
- Mobile app support enables remote control and diagnostics.
- RS485 & CAN communication ports for seamless integration with BMS systems.
Total Protection & Reliability
- Overload, short circuit, and surge protection for system safety.
- Battery overcharge & over-discharge protection.
- AC over-voltage and PV over-voltage protection.
SunGold Power 10KW 48V Split Phase Solar Inverter Applications
- Reliable Home Backup Power – Provides uninterrupted power to essential appliances during outages, ensuring security systems, lighting, refrigerators, and medical equipment remain operational.
- Off-Grid Residential Systems – Perfect for homes relying solely on solar energy, offering continuous, clean power even in remote locations.
- Commercial & Industrial Use – Ensures stable power for businesses with high energy demands, reducing reliance on the grid and lowering operational costs.
- Remote Cabins & RVs – Enables off-grid lifestyles with reliable power for recreational vehicles, tiny homes, and wilderness retreats.
- Farming & Agricultural Equipment – Powers irrigation systems, farm tools, greenhouses, and heavy-duty agricultural machinery, improving farm efficiency and sustainability.
What's Included
Everything you need is included with your product.
- SunGold Power 10KW 48V Split Phase Solar Inverter
- Wi-Fi Monitoring Module
- User Manual
- Accessory Kit
SunGold Power 10KW 48V Split Phase Solar Inverter Specifications
Inverter Output
| Specification | Details |
| Rated Output Power | 10,000W |
| Max. Peak Power | 20,000W |
| Rated Output Voltage | 120/240Vac (split phase/single phase) |
| Load Capacity of Motors | 6HP |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Switch Time | 10ms (typical) |
| Parallel Capacity | 6 |
| Overload | After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102% |
Battery
| Specification | Details |
| Battery Type | Li-ion / Lead-Acid / User Defined |
| Rated Battery Voltage | 48Vdc |
| Voltage Range | 40-60Vdc |
| Max. MPPT Charging Current | 200A |
| Max. Mains/Generator Charging Current | 120A |
| Max. Hybrid Charging Current | 200A |
PV Input
| Specification | Details |
| Num. of MPP Trackers | 2 |
| Max. PV array power | 11,000W |
| Max. input current | 22/22A |
| Max. Voltage of Open Circuit | 500Vdc |
| MPPT Voltage Range | 125-425Vdc |
Mains / Generator Input
| Specification | Details |
| Input Voltage Range | 90-140V (Single phase), 180-260V (Split phase) |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 63A |
Efficiency
| Specification | Details |
| MPPT Tracking Efficiency | 99.9% |
| Max. Battery Inverter Efficiency | 92% |
General
| Specification | Details |

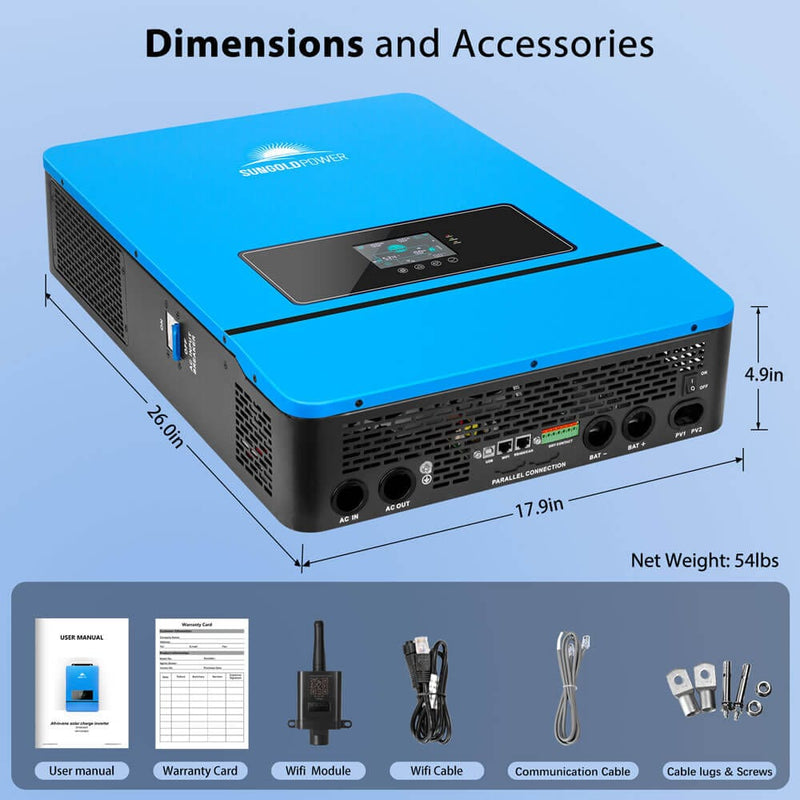

| Dimensions | 17.9*26*5.1 inch |
| Weight | 54lb |
| Protection Degree | IP20, Indoor Only |
| Operating Temperature Range | 14~131°F, >113°F derated (-10~55°C,>45°C derated) |
| Noise | <60dB |
| Cooling Method | Internal Fan |
| No-load consumption | 95W/100W |
| Warranty | 2 Years |
Communication
| Specification | Details |
| Embedded Interfaces | RS485 / CAN / USB / Dry contact |
| External Modules (Optional) | Wi-Fi / GPRS |
FAQs
What appliances can this inverter support?
This inverter can power most household appliances, including refrigerators, washing machines, HVAC systems, and electronics.
Does this inverter support battery-less operation?
Yes, it can directly power loads from solar panels and grid power without needing a battery.
Can I monitor my system remotely?
Yes, the included Wi-Fi monitoring module allows real-time remote monitoring via a mobile app.
Can I expand my solar system with this inverter?
Yes, the inverter supports parallel operation of up to 6 units, allowing for scalability.
